Axle Nut

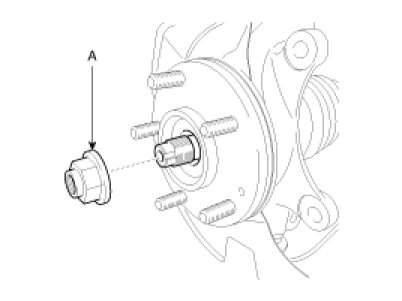

Remove the driveshaft nut (A) from the front hub.

Tightening torque: 240.2 - 269.6 N.m (24.5 - 27.5 Kgf.m, 177.2 - 197.9 lb.ft)




CAUTION:
- The driveshaft lock nut should be replaced with new ones.

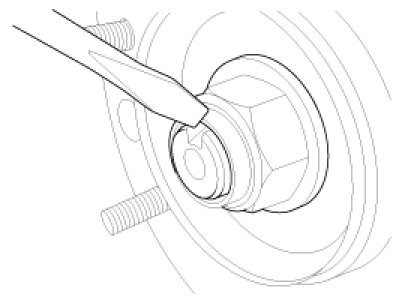

- After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.
