Water Pump
Water Pump

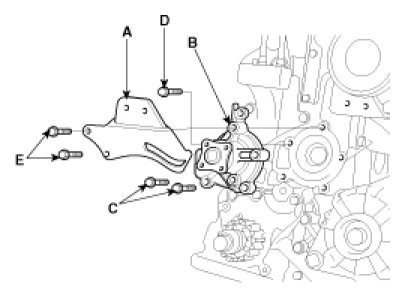

Install the water pump (B) and a new gasket with the 3 bolts (C, D).
Tightening torque
Bolts (C) 19.6 - 23.5 Nm (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)
Bolts (D) 19.6 - 26.5 Nm (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)
Water Pump
Install the water pump (B) and a new gasket with the 3 bolts (C, D).
Tightening torque
Bolts (C) 19.6 - 23.5 Nm (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)
Bolts (D) 19.6 - 26.5 Nm (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)
