Components and Components Location: Component

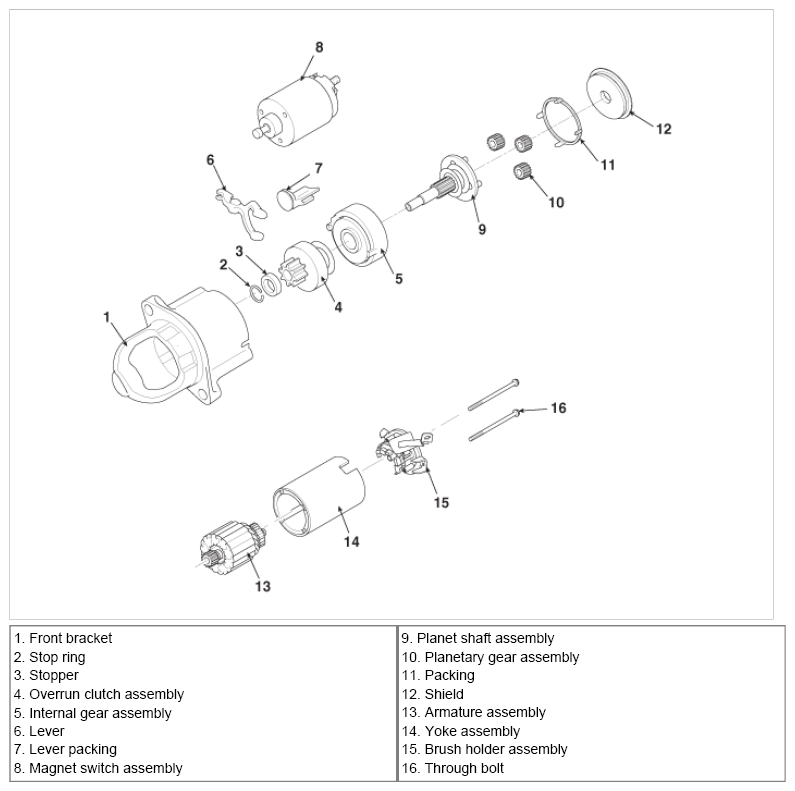

Fig 1: Exploded View Of Starter

G07367712

Courtesy of KIA MOTORS AMERICA, INC.
