Repair Procedures





Removal

1. Disconnect the negative(-) battery terminal.

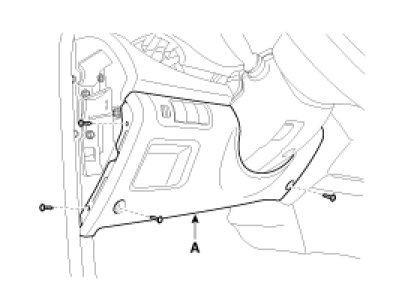

2. Remove the crash pad lower panel(A).

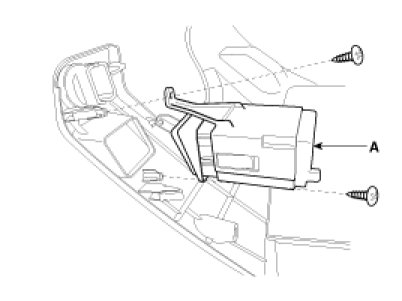

3. Remove the fob holder(A) after removing the screws and connector.






Installation

1. Install the fob holder assembly.
2. Install the crash pad lower panel.
