Electrical Diagrams

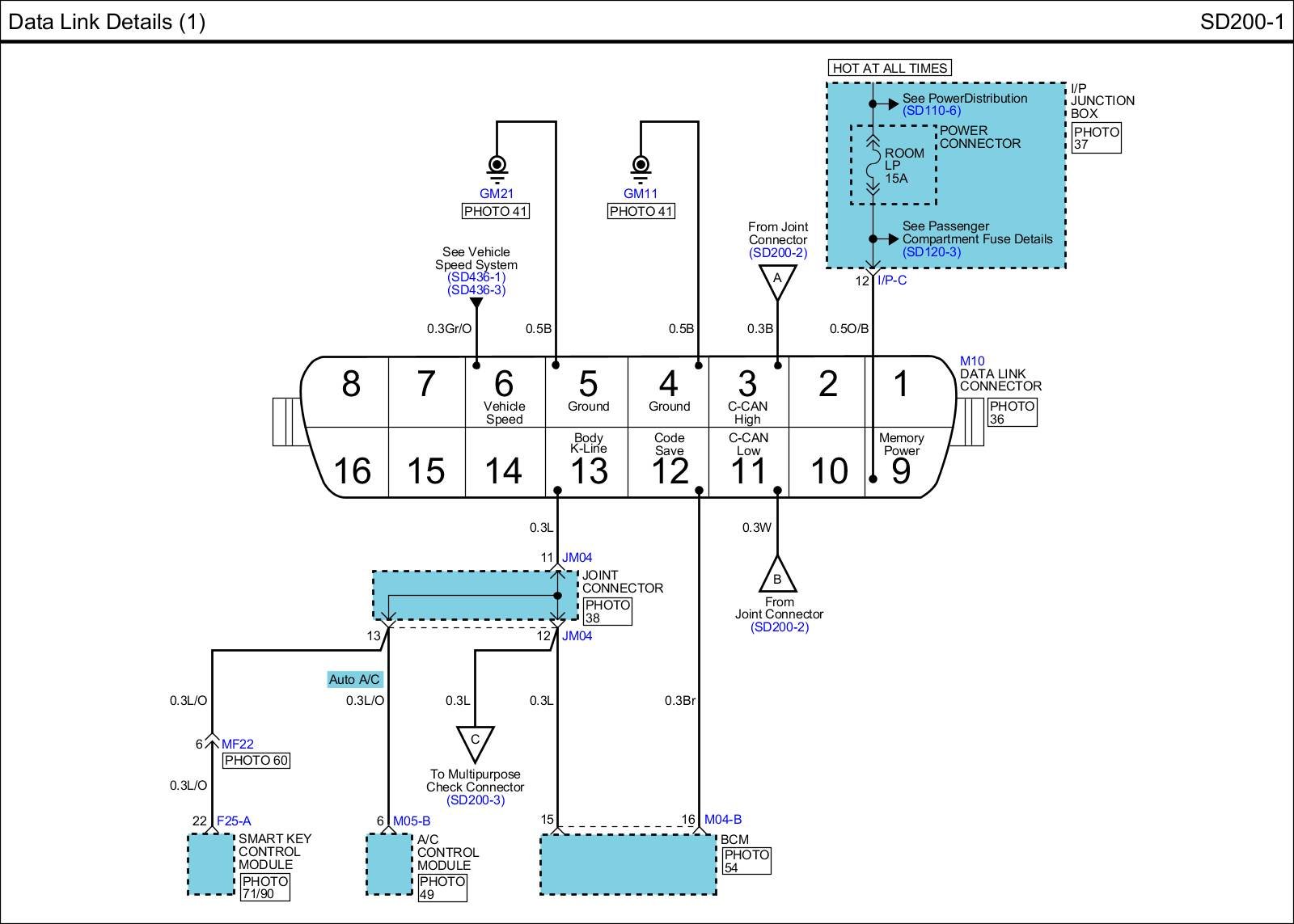

SD200-1 Data Link Details (1):

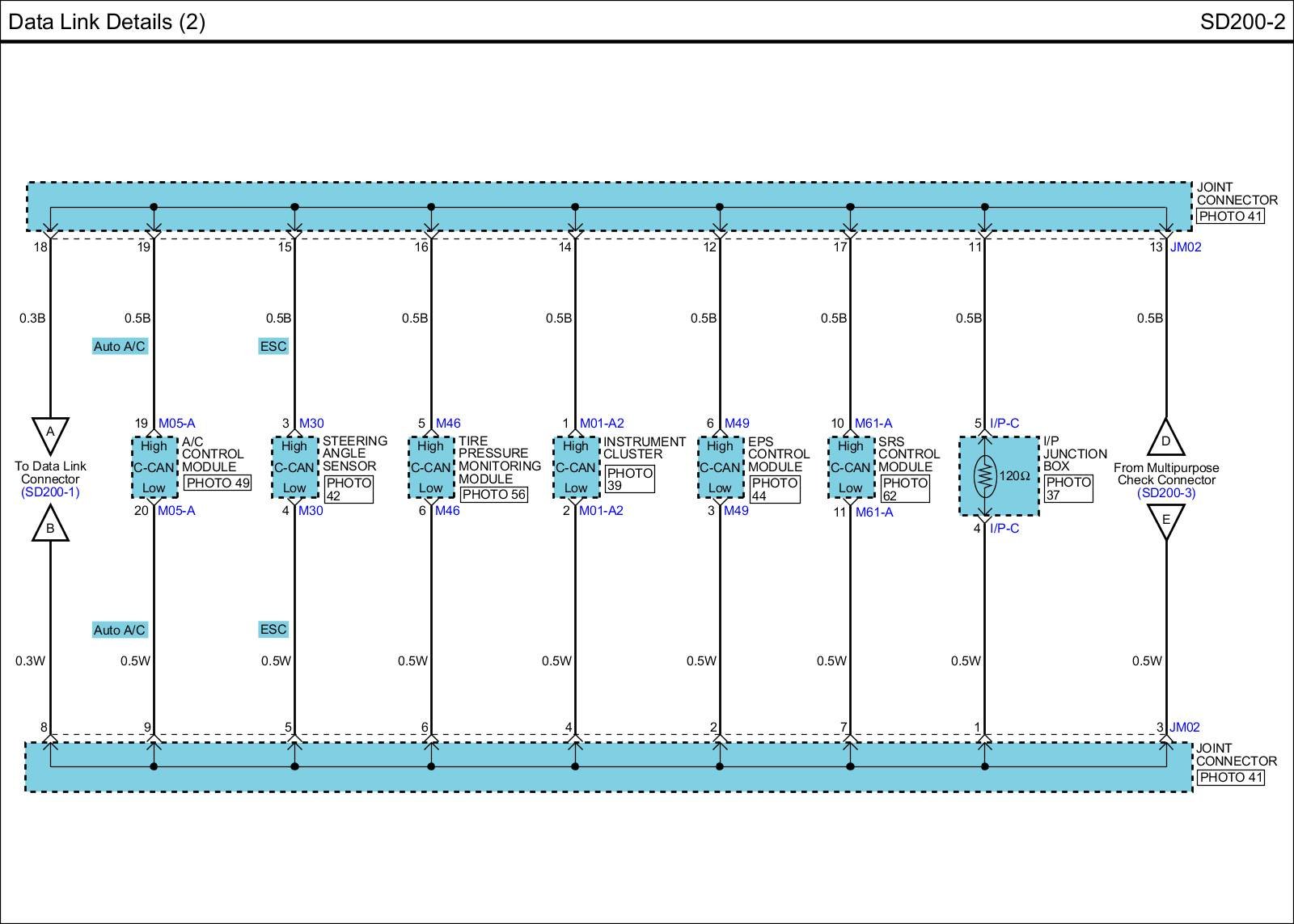

SD200-2 Data Link Details (2):

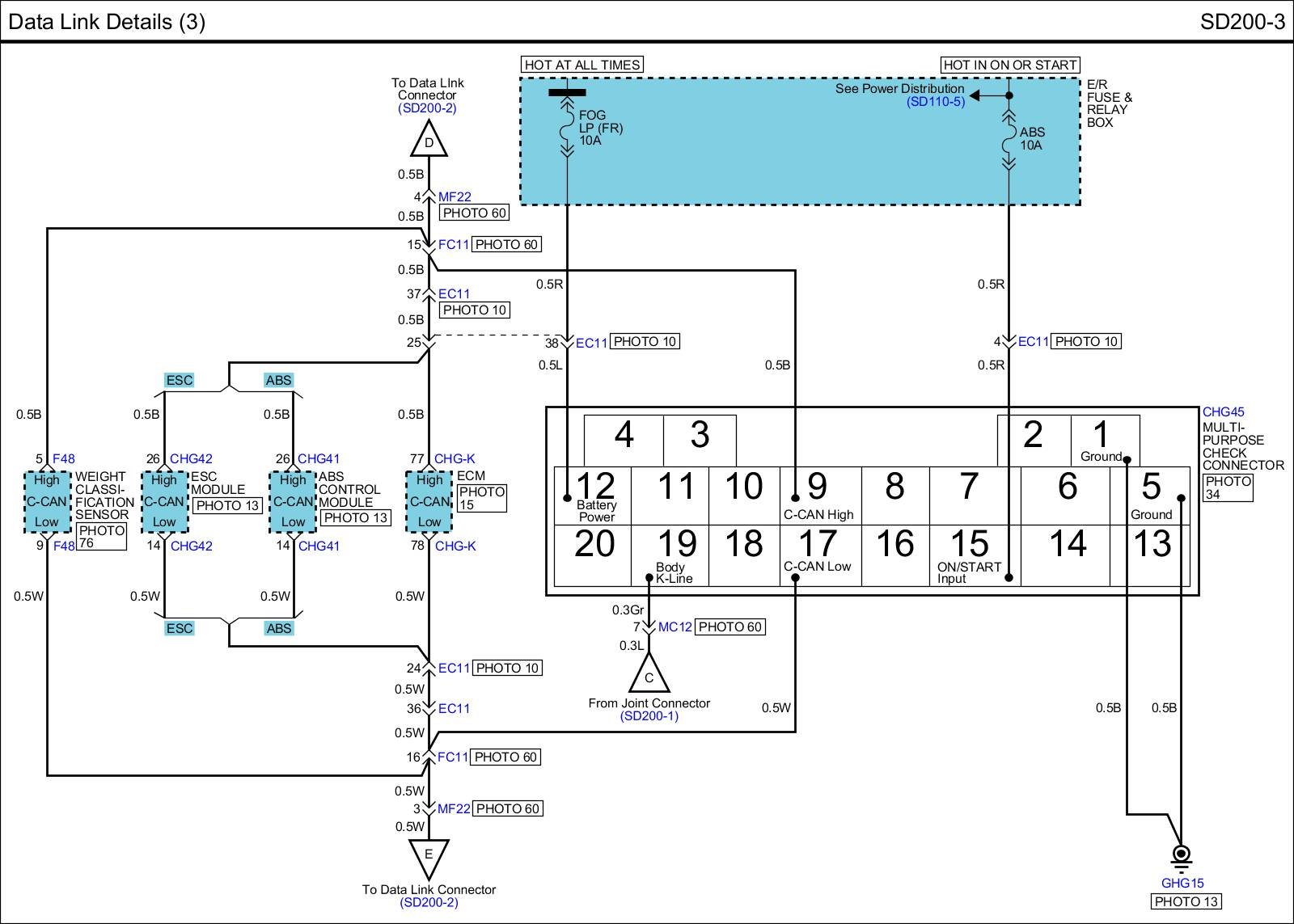

SD200-3 Data Link Details (3):

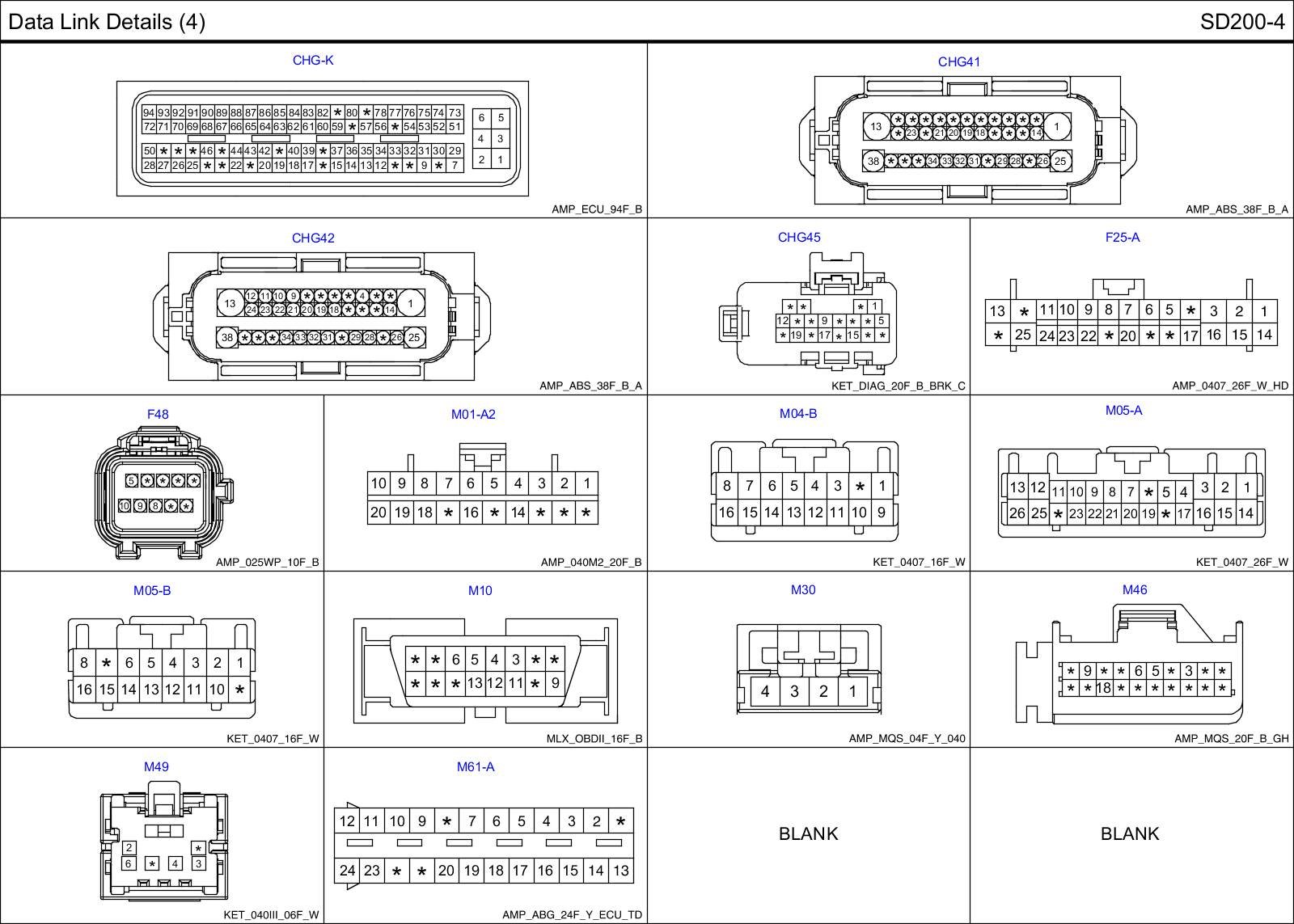

Data Link Details (4) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
