Electrical Diagrams





ECM Terminal And Input/Output signal

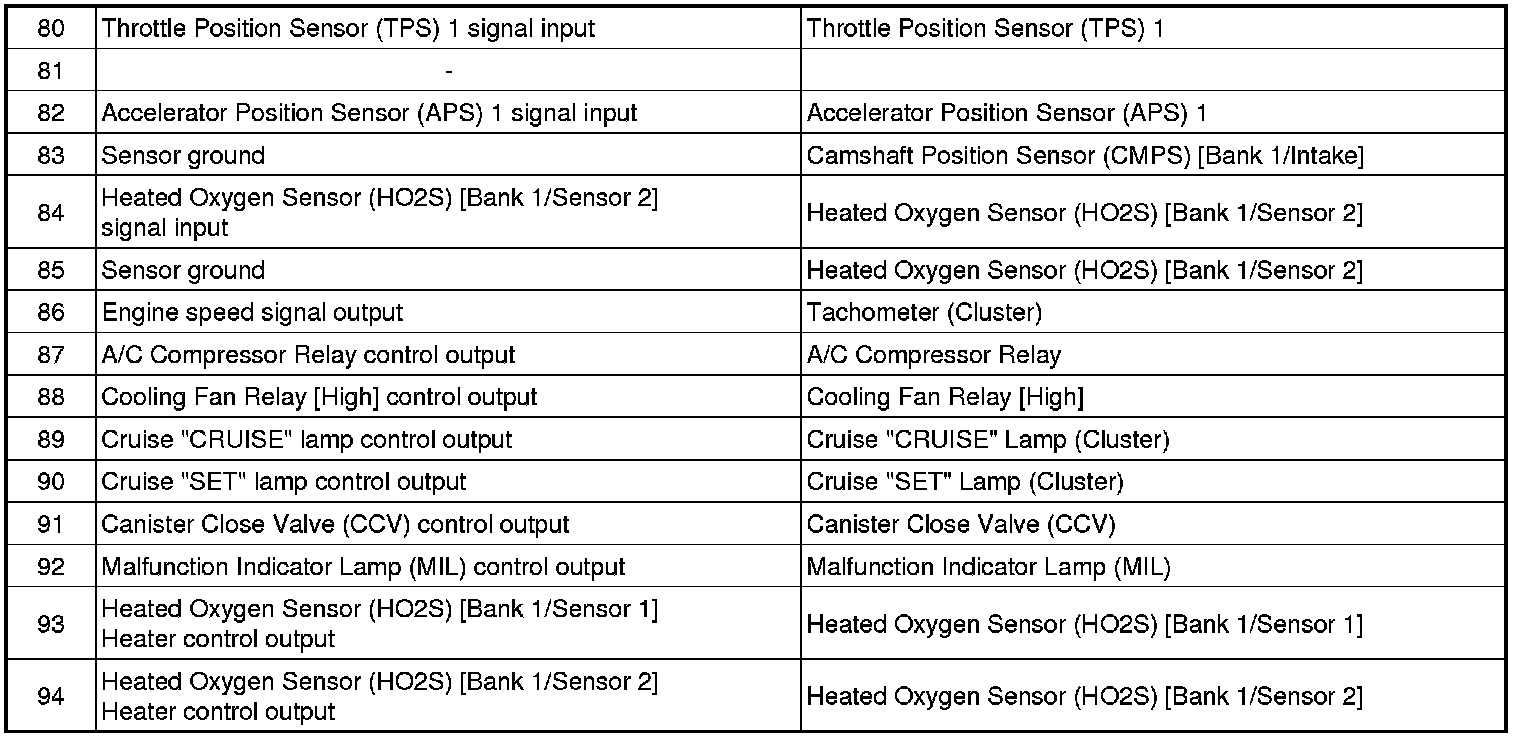

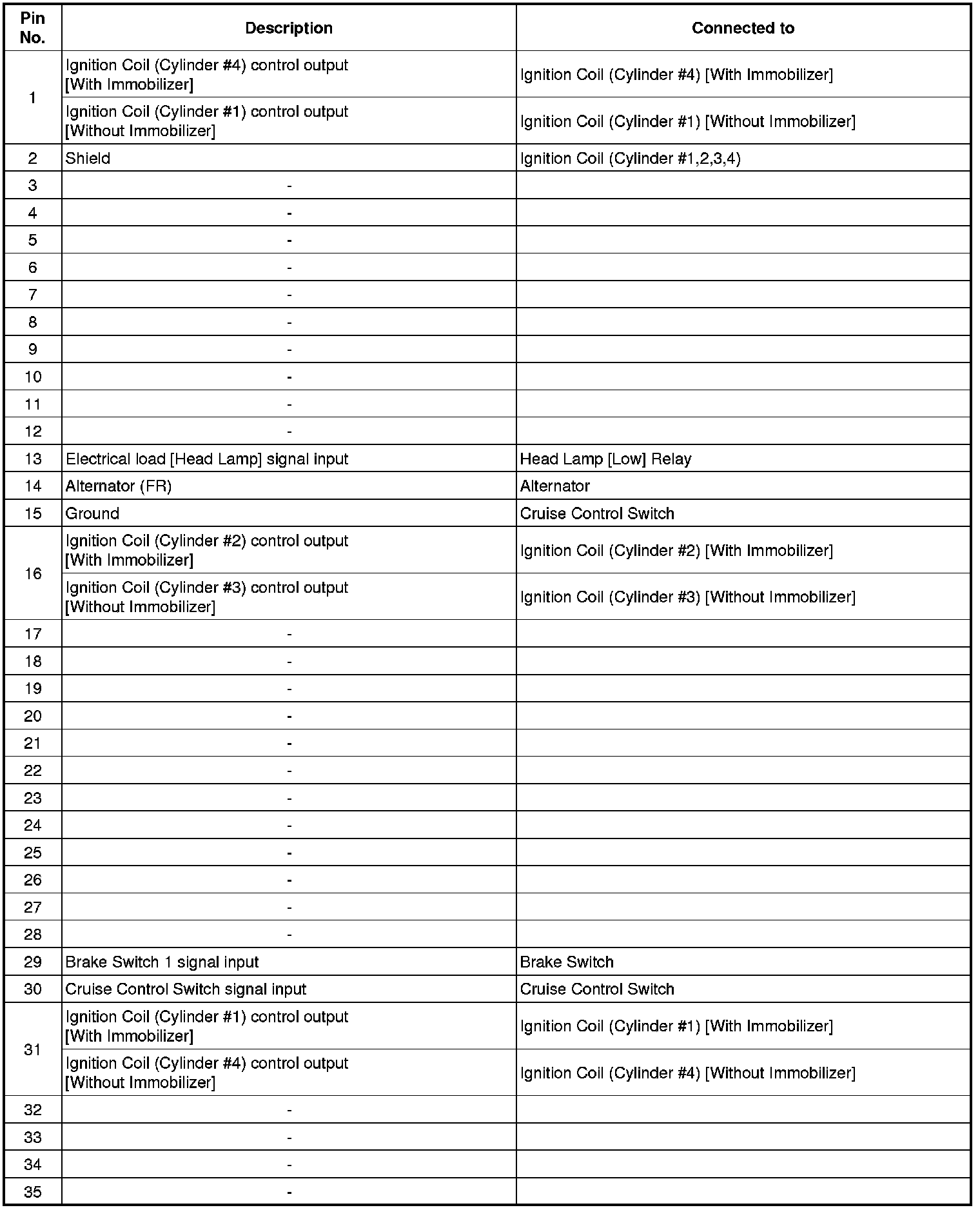

ECM Terminal Function

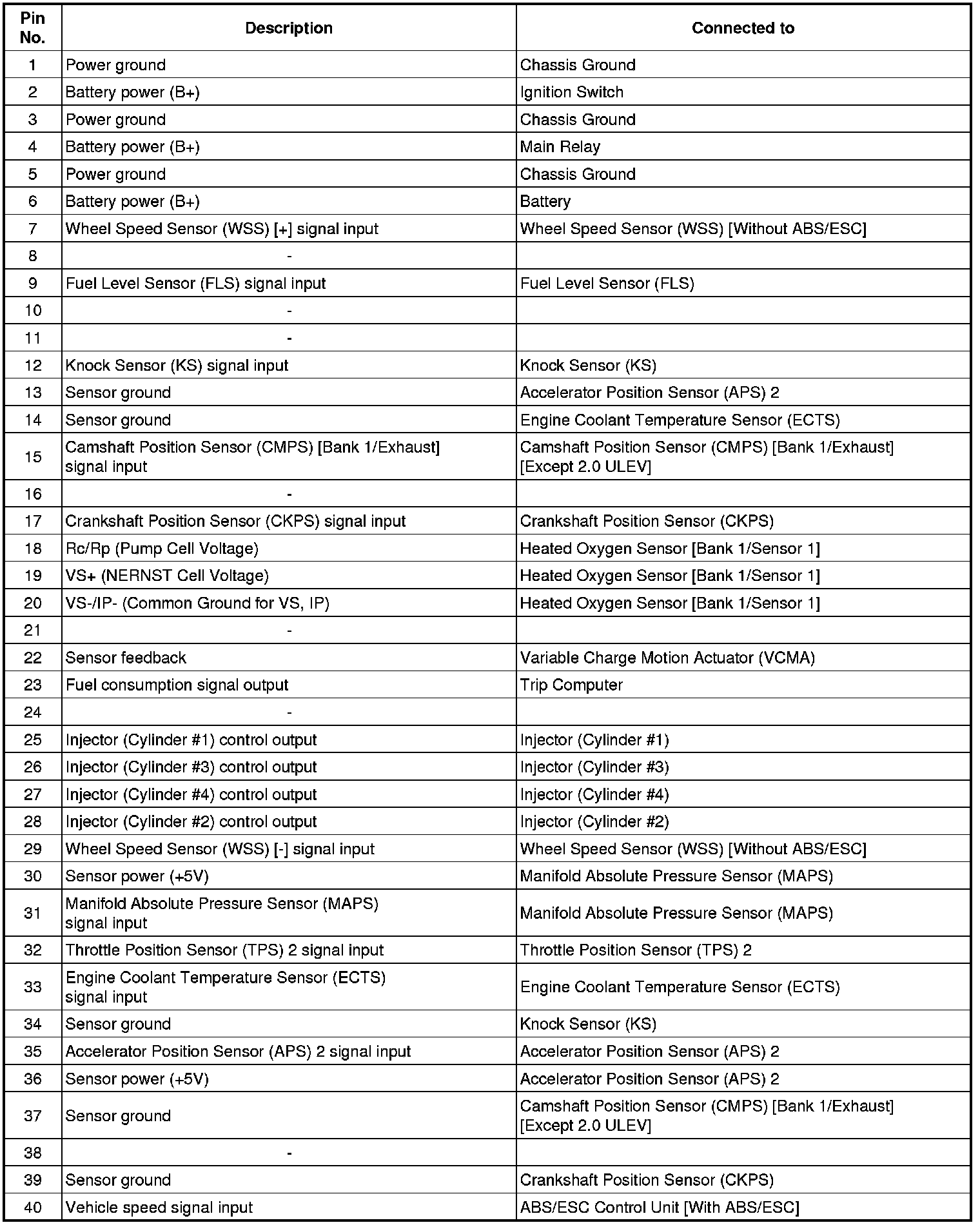

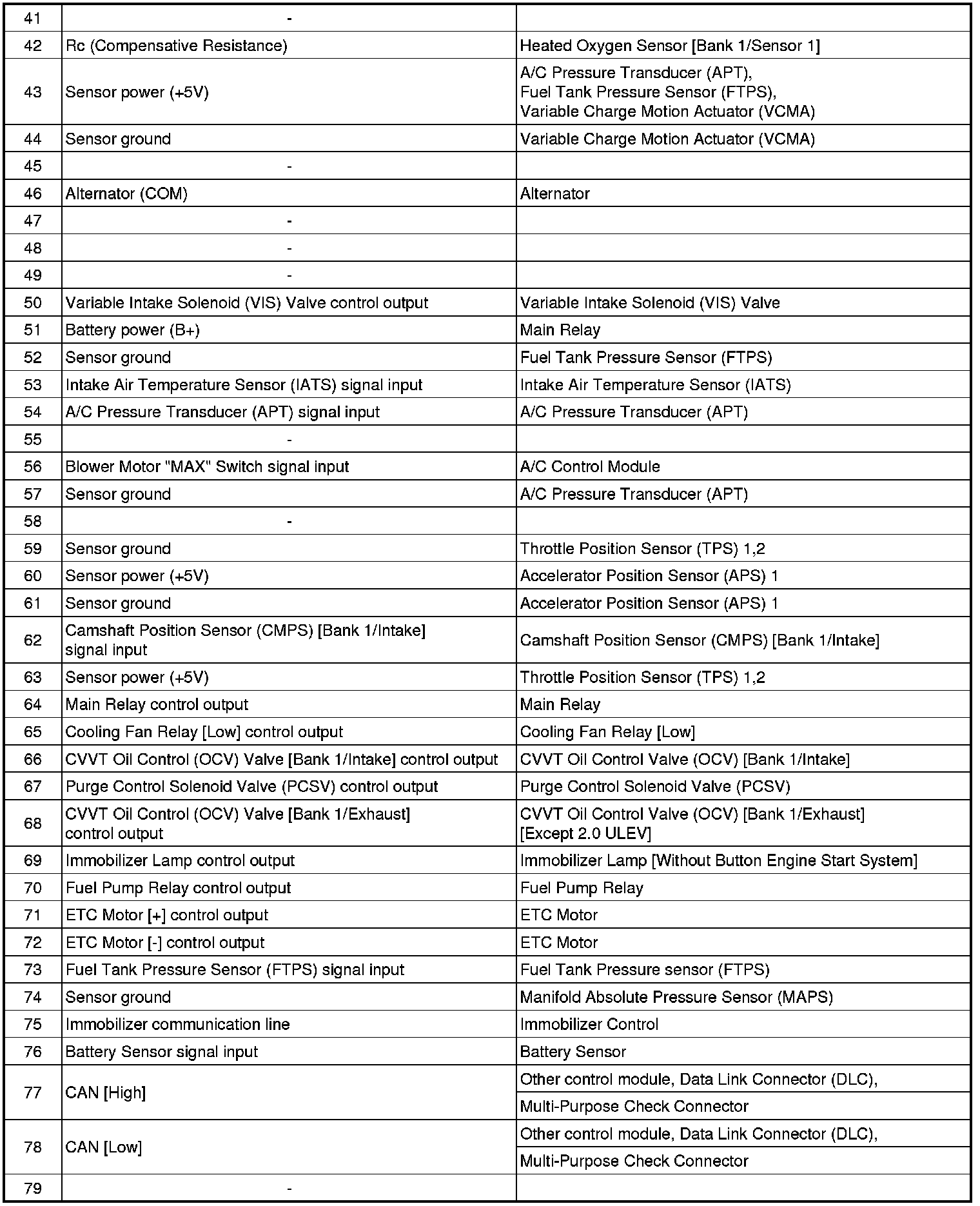

Connector [CHG-K]

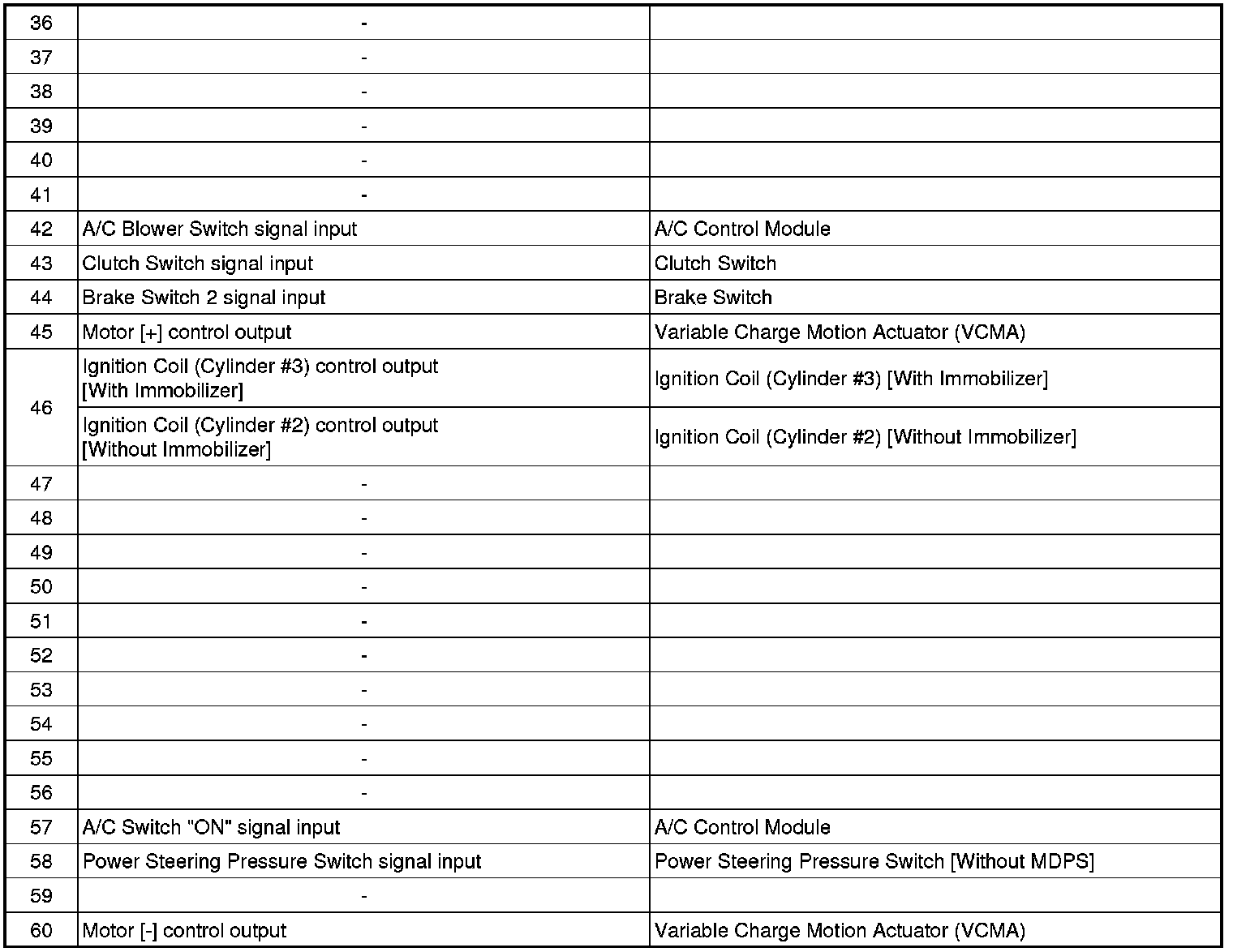

Connector [CHG-A]

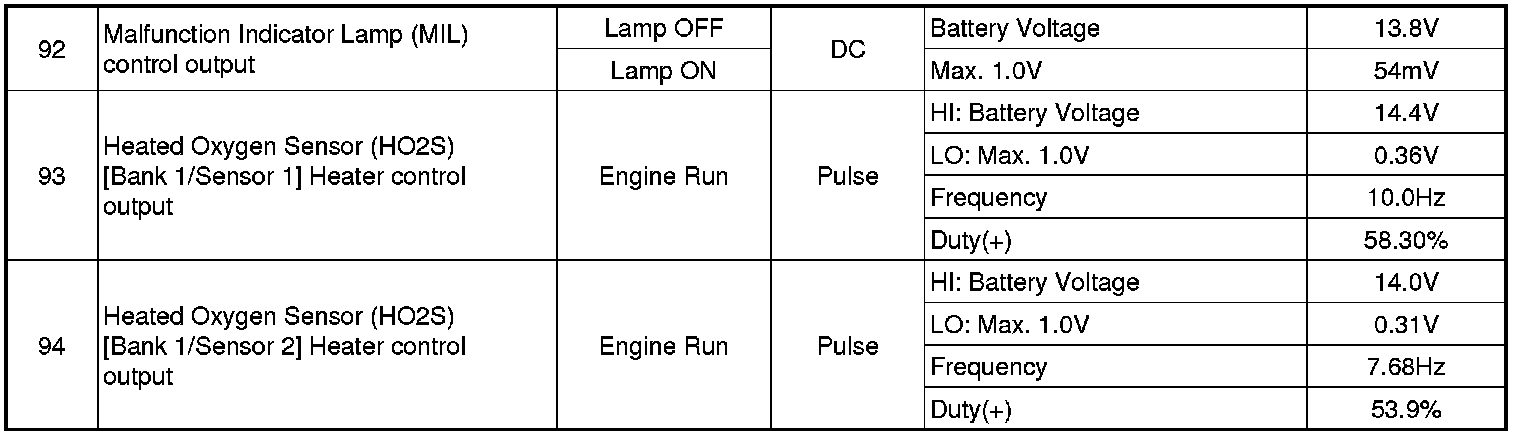

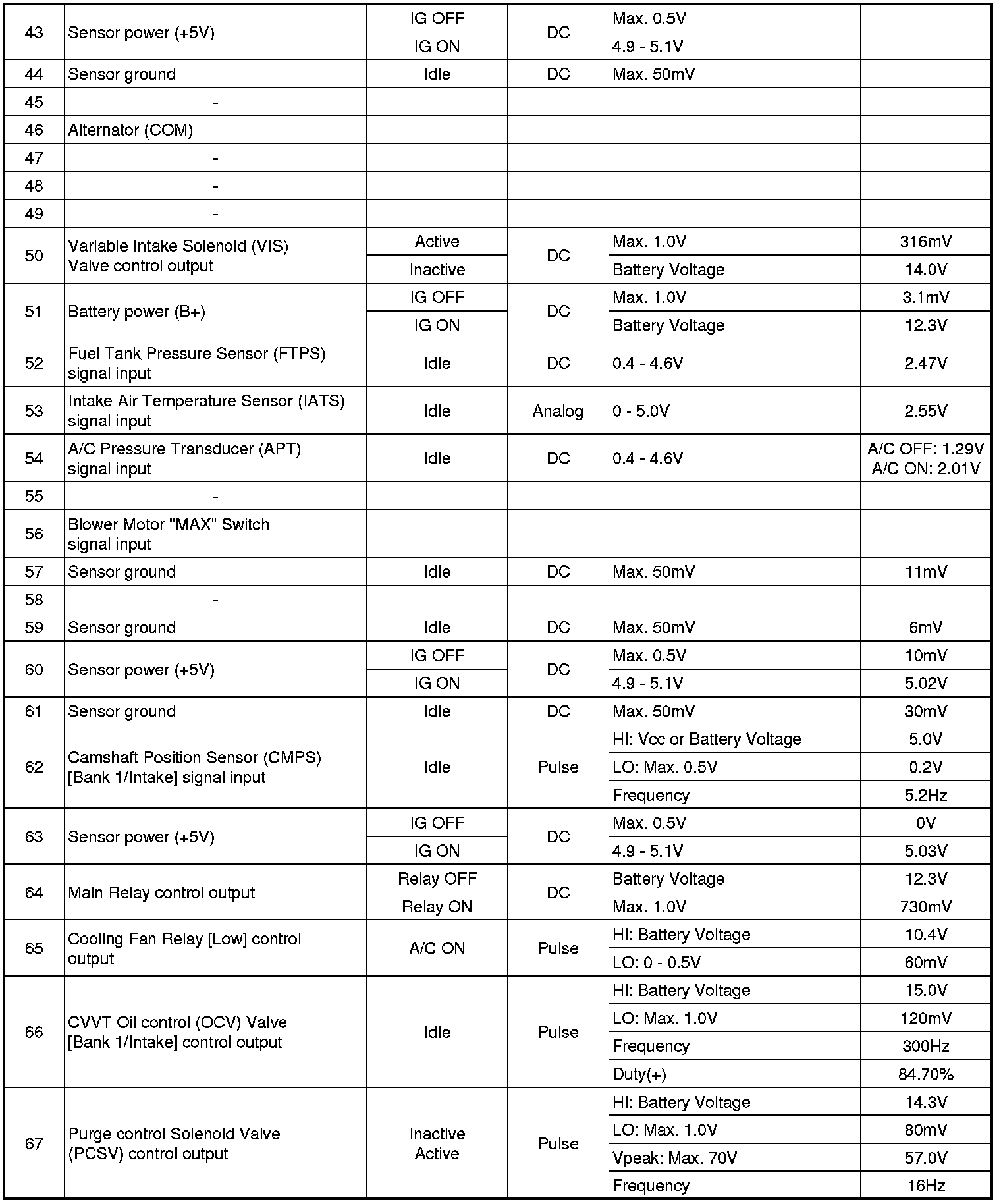

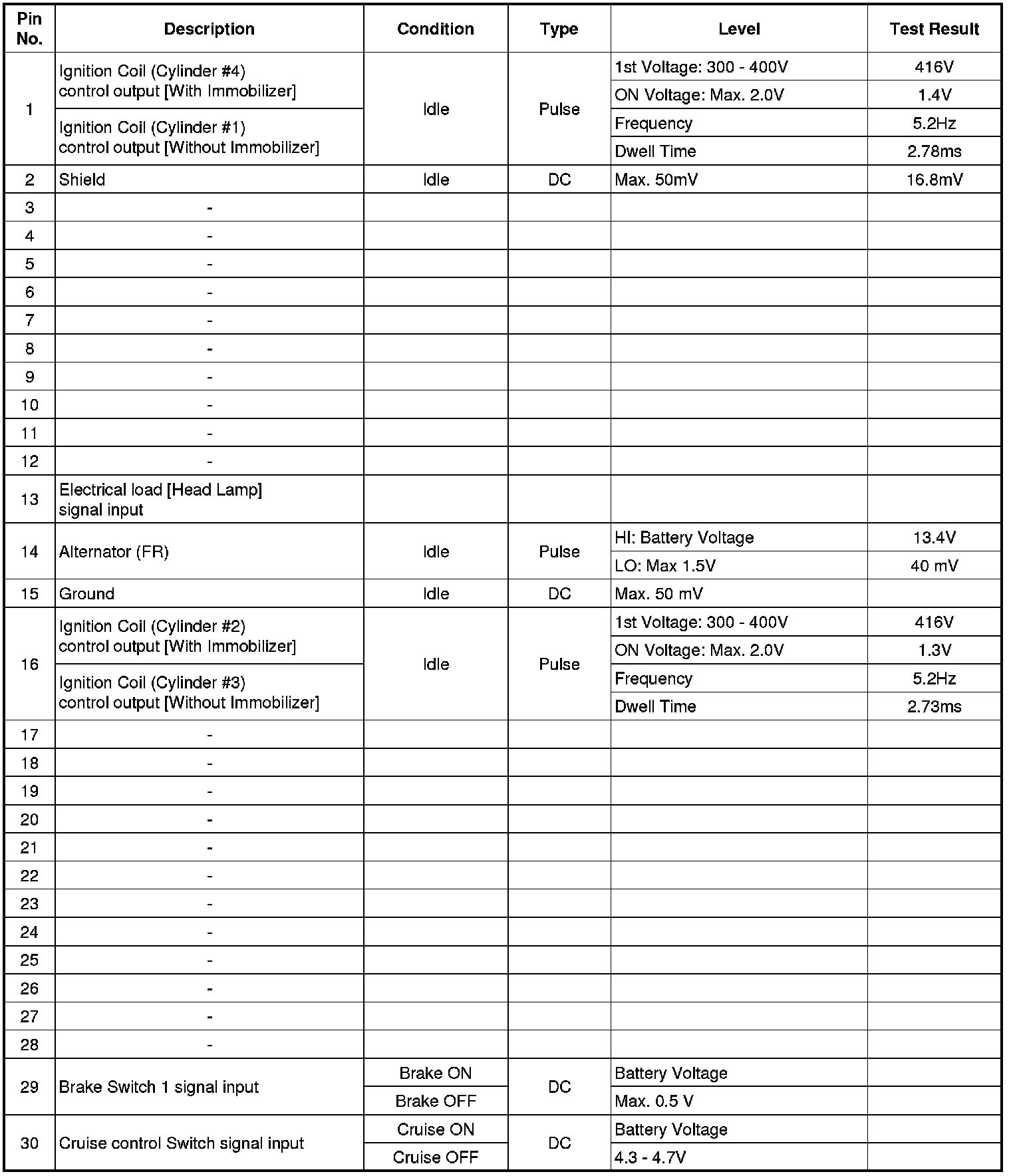

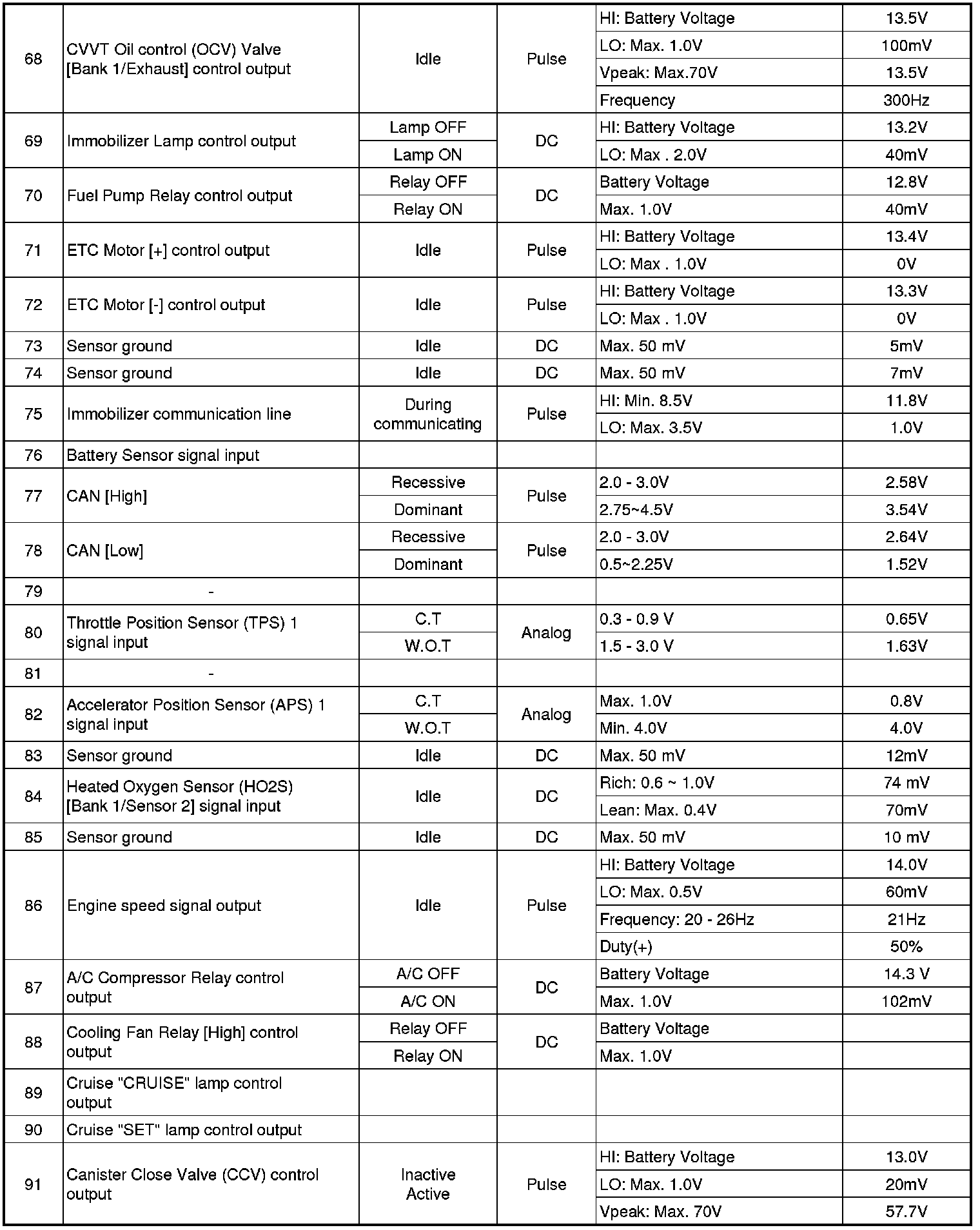

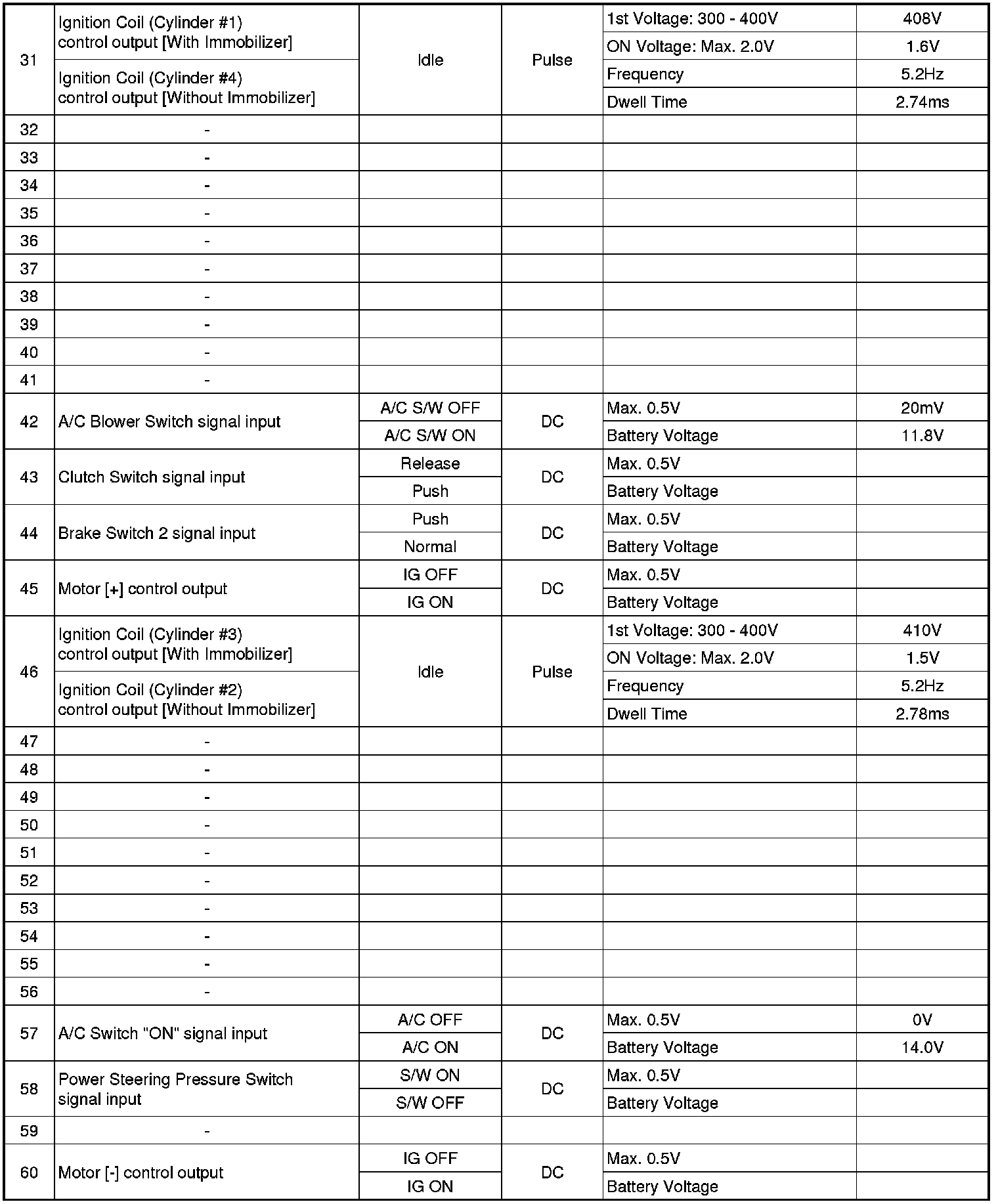

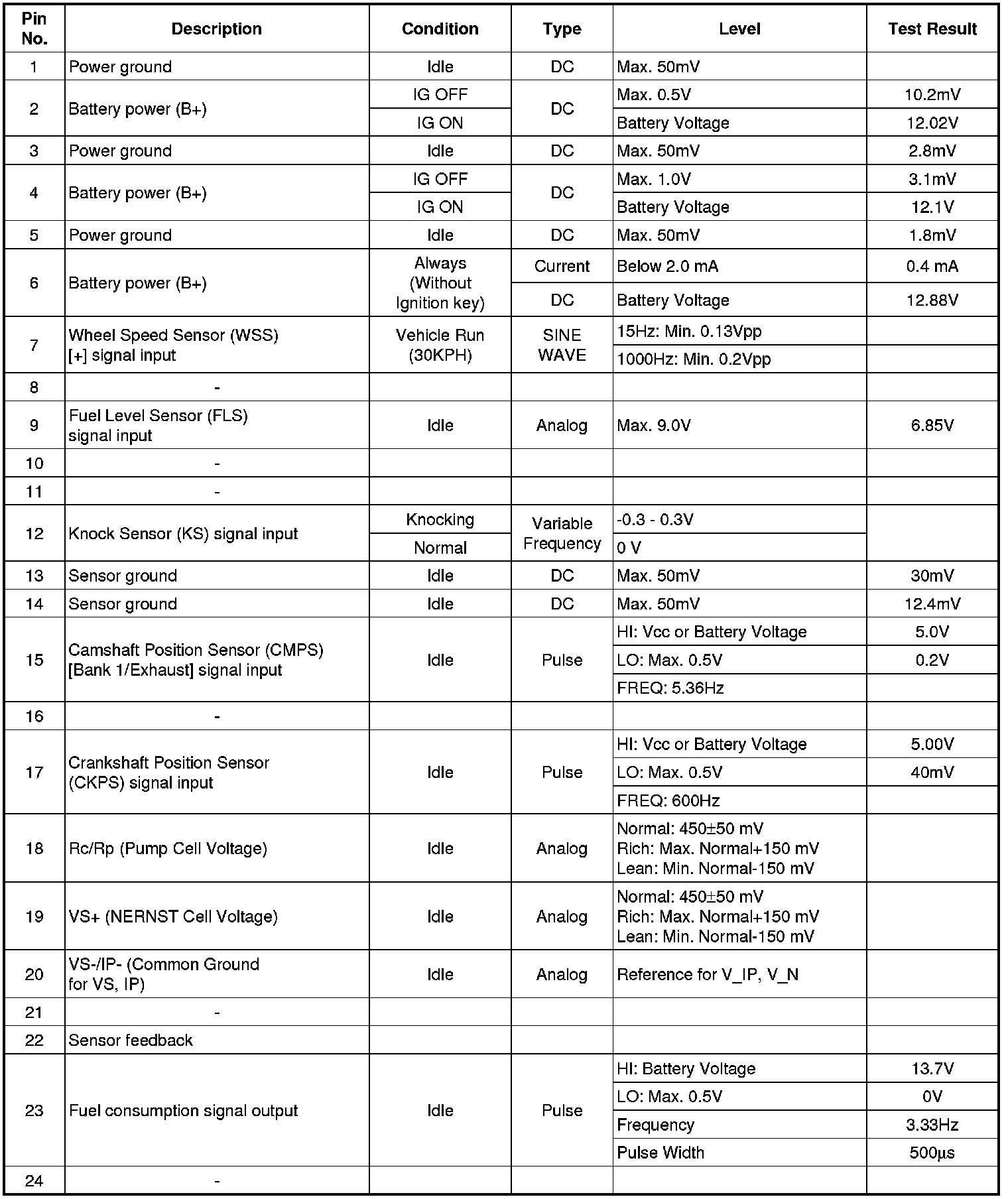

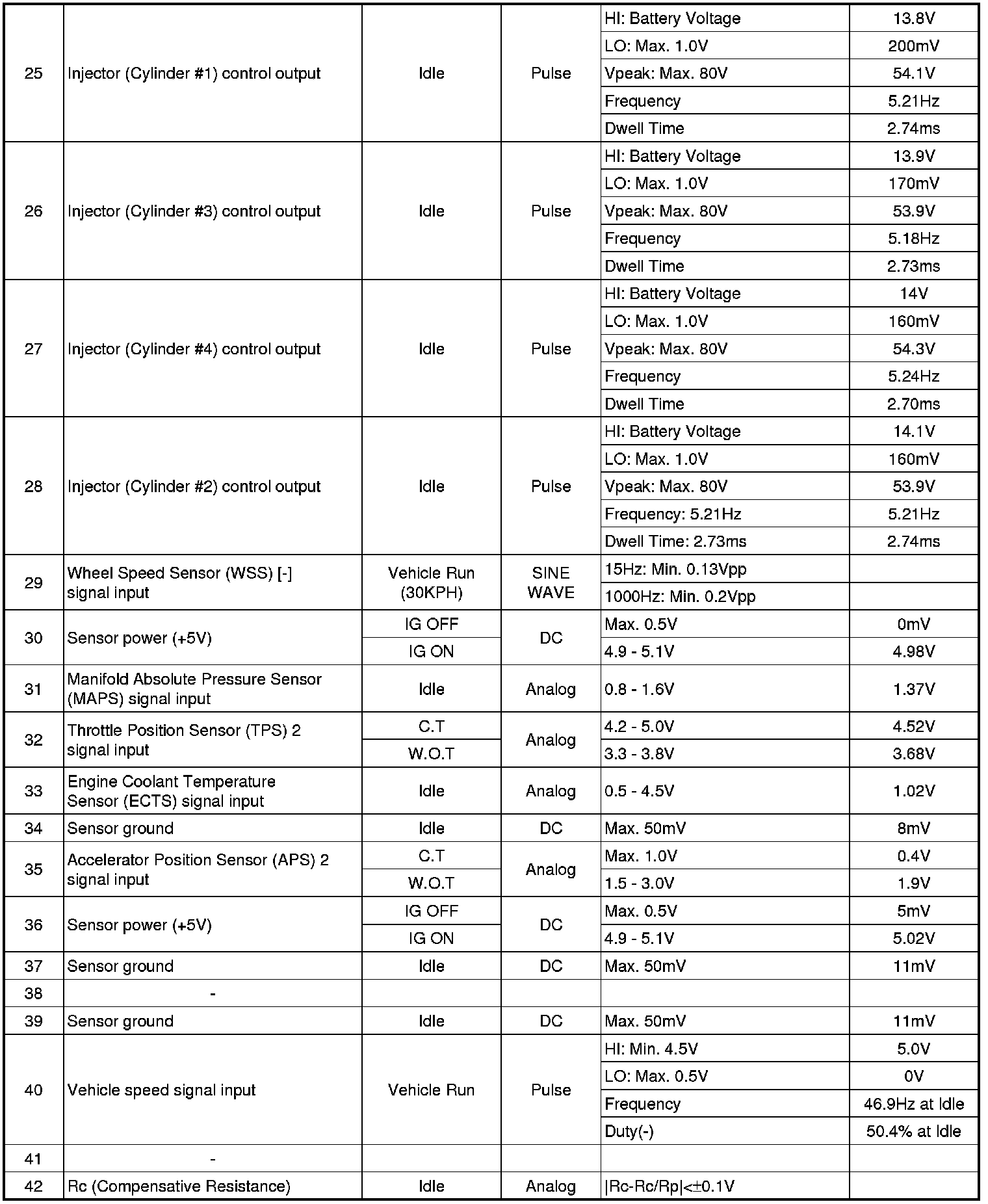

ECM Terminal Input/ Output signal
Connector [CHG-K]





















Connector [CHG-A]










Circuit Diagram
