Axle Shaft Assembly

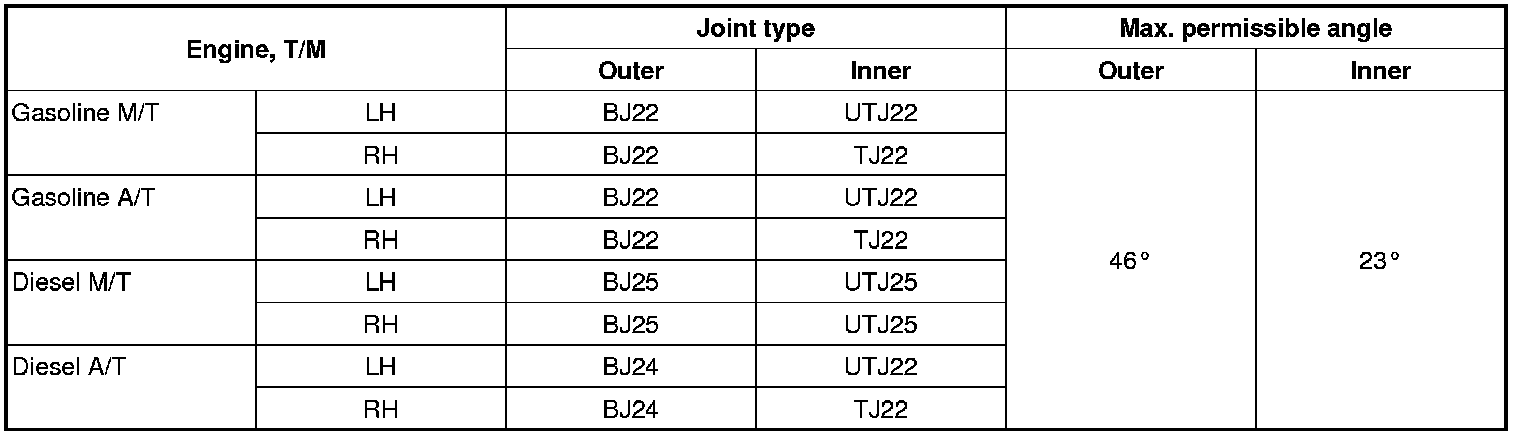

Specification

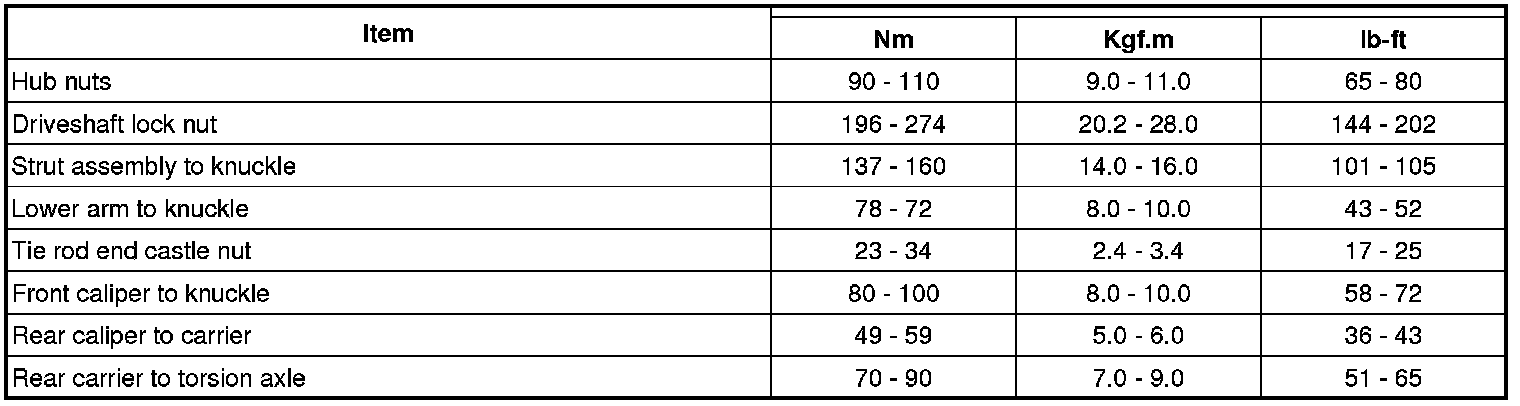

Tightening torque





CAUTION:
Replace self-locking nuts with new ones after removal.

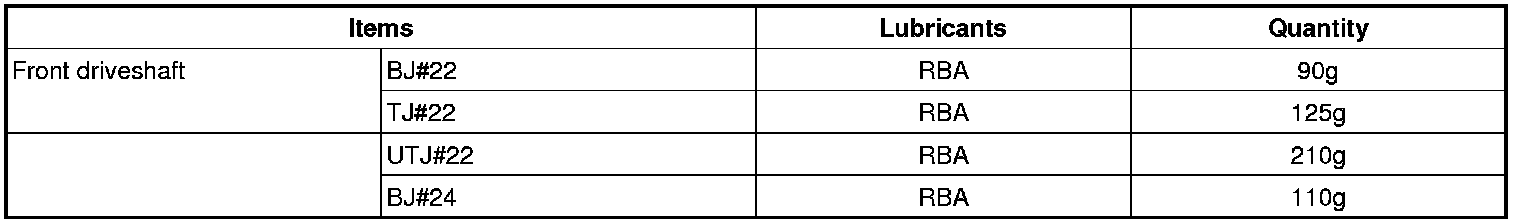

Lubricants
