Electrical Diagrams

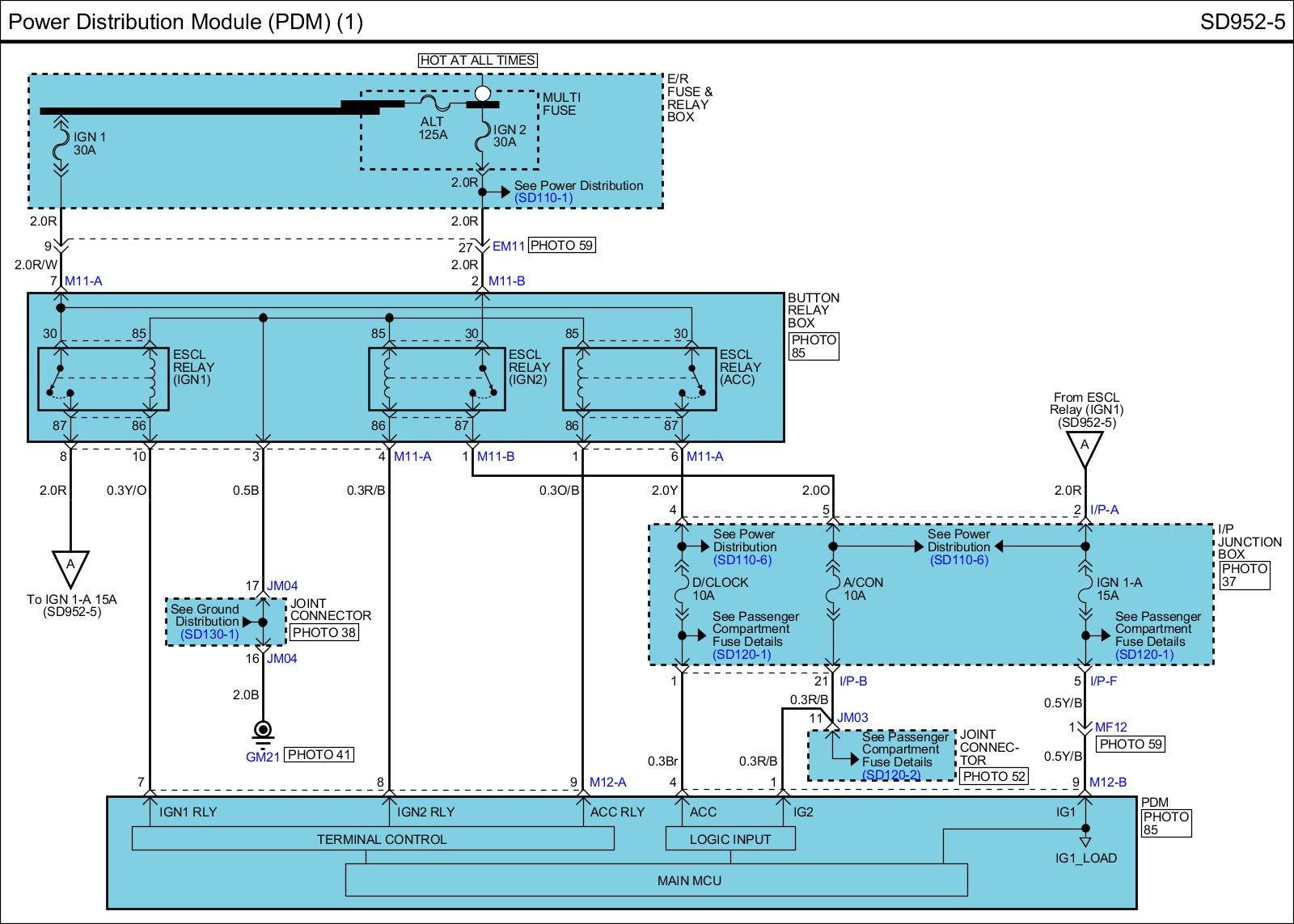

SD952-5 Power Distribution Module (PDM) (1):

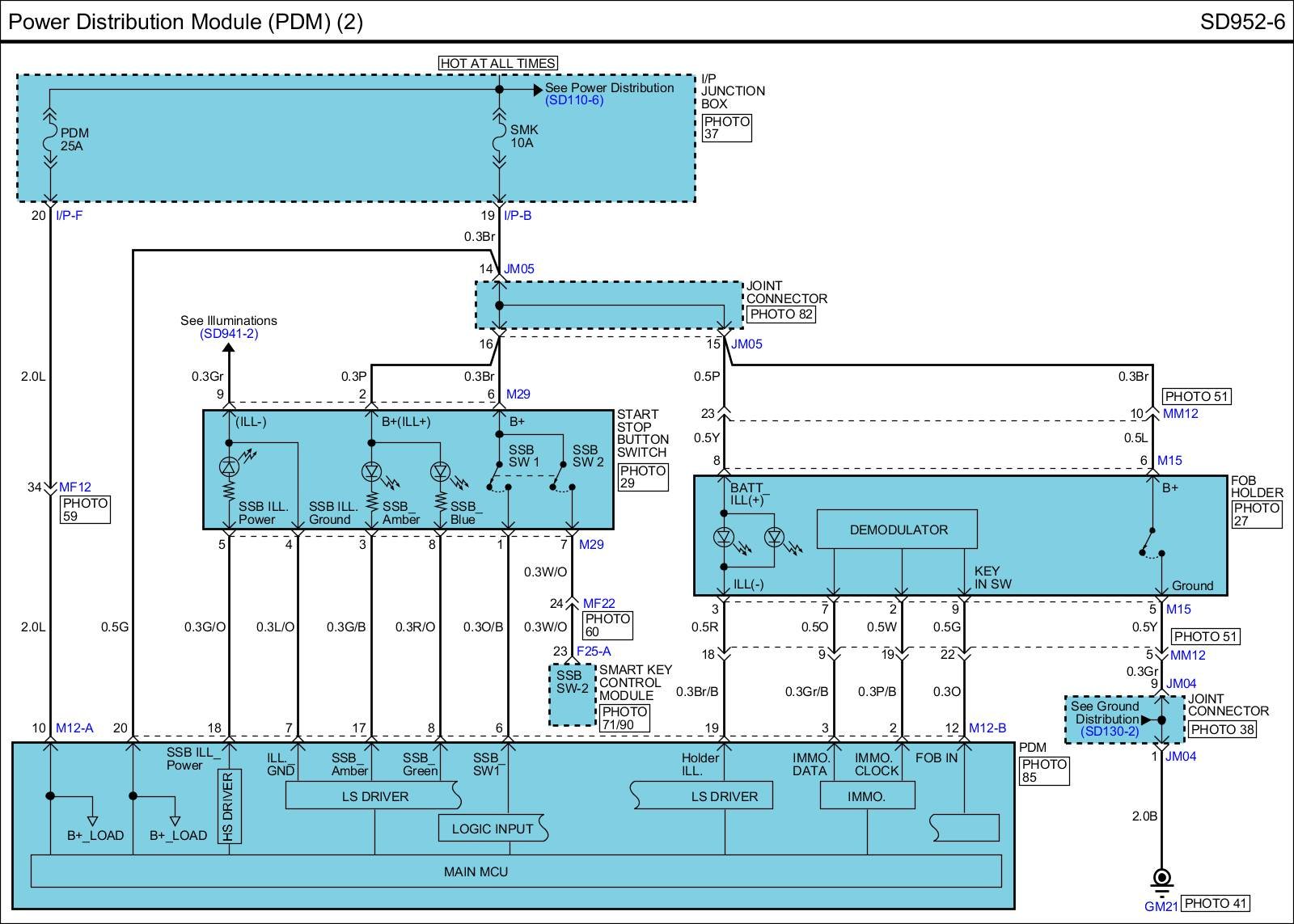

SD952-6 Power Distribution Module (PDM) (2):

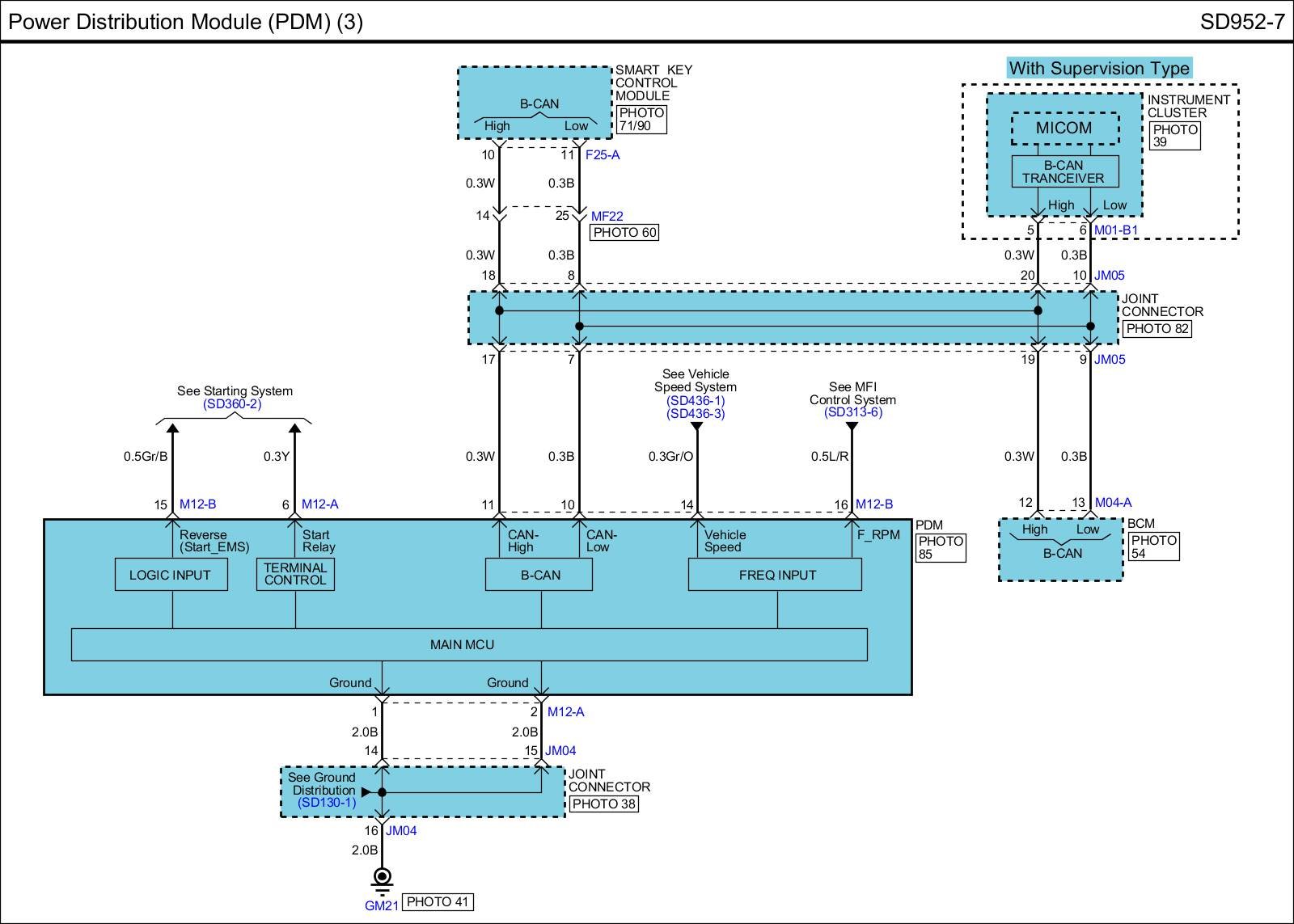

SD952-7 Power Distribution Module (PDM) (3):

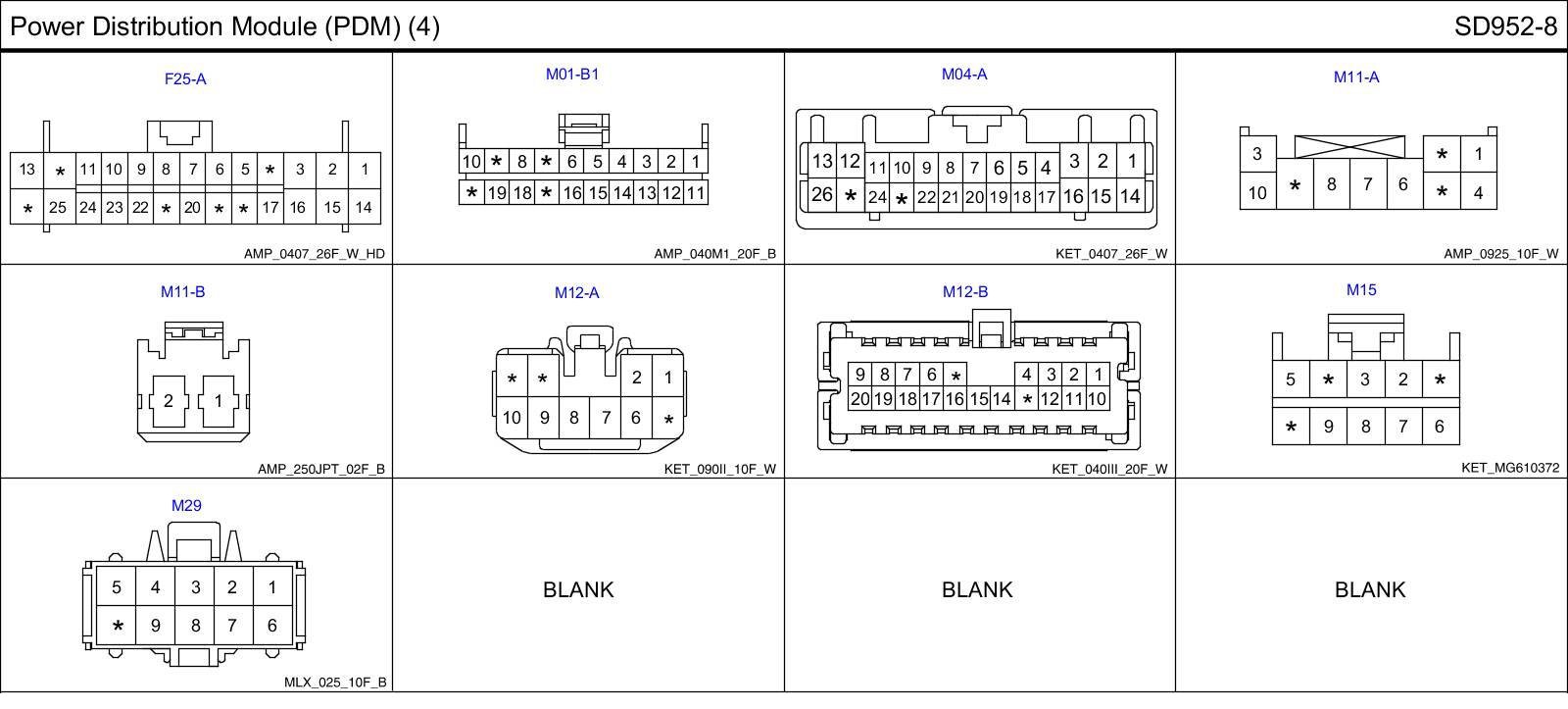

Power Distribution Module (PDM) (4) Connector Pin Outs:
