Axle Nut





Axle Nut

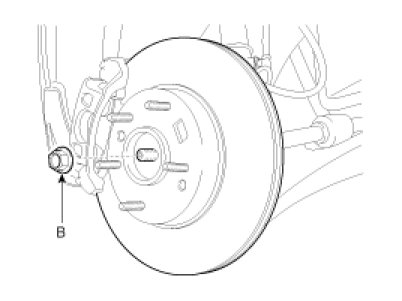

Install driveshaft nut(B) from the front hub under applying the break.

Tightening torque 196.1 - 274.5 N.m (20.0 - 28.0 Kgf.m, 144.6 - 202.5lb.ft)
