Key In Switch

Remove the crash pad lower panel.
For sedan, refer to LOWER PANEL REPLACEMENT . For coupe, refer to LOWER PANEL REPLACEMENT .
Disconnect the 6P connector from the key warning switch (A).

Fig 1: Key Warning Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each position according to the table.

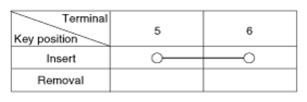

Fig 2: Key Warning Switch Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
