Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

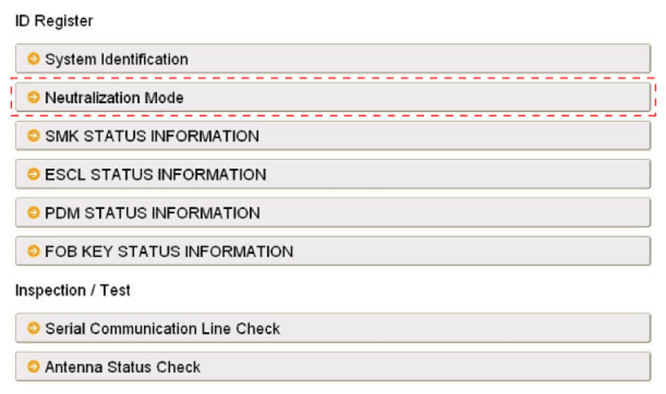

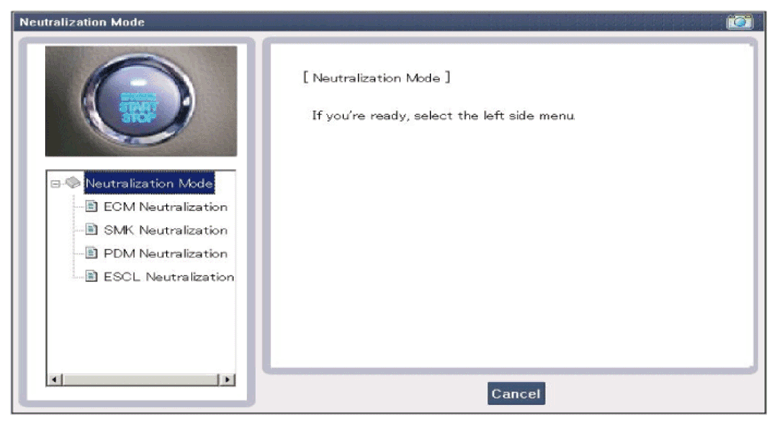

Fig 1: Screen Display - Selecting Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

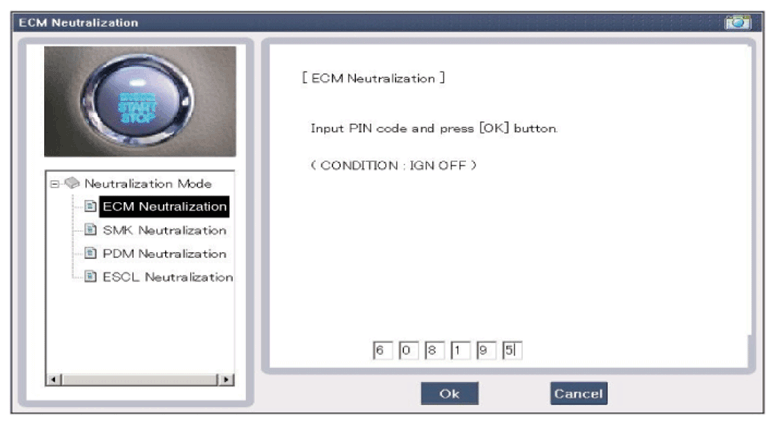

Fig 3: Screen Display - ECM Neutralization Mode (Input Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

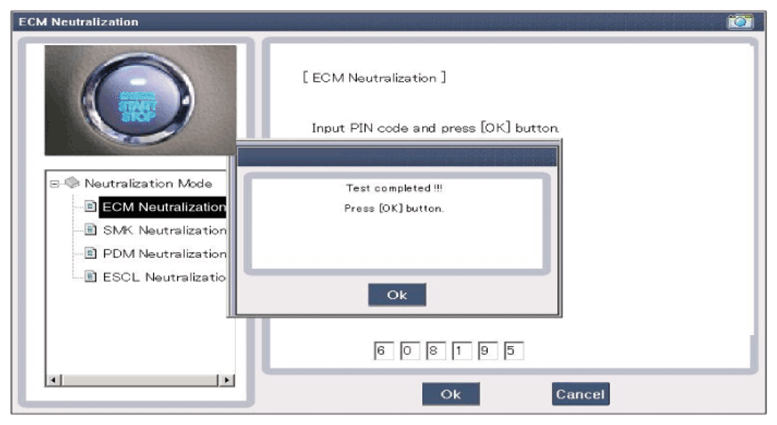

Fig 4: Screen Display - ECM Neutralization Mode (Test Completed)
Courtesy of KIA MOTORS AMERICA, INC.

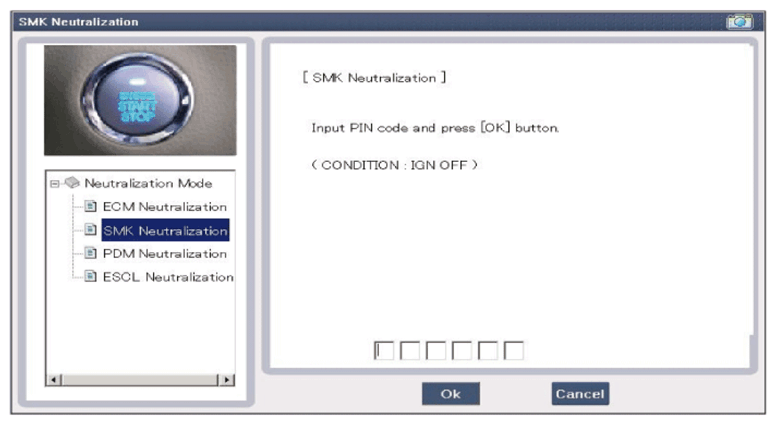

Fig 5: Screen Display - SMK Neutralization Mode (Input Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

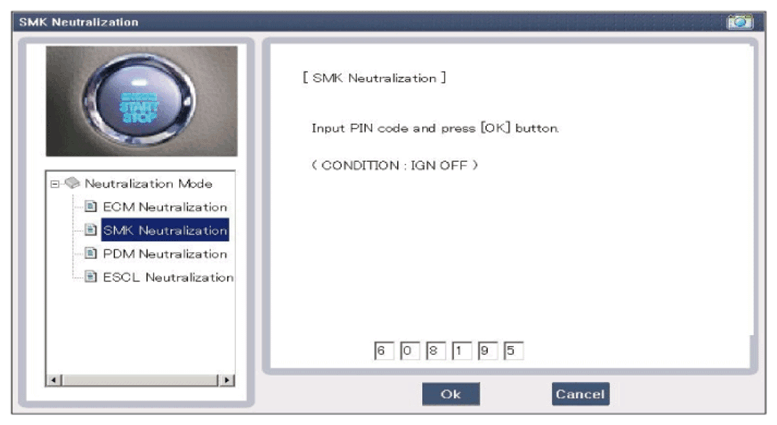

Fig 6: Screen Display - SMK Neutralization Mode (Pin Code 608195)
Courtesy of KIA MOTORS AMERICA, INC.

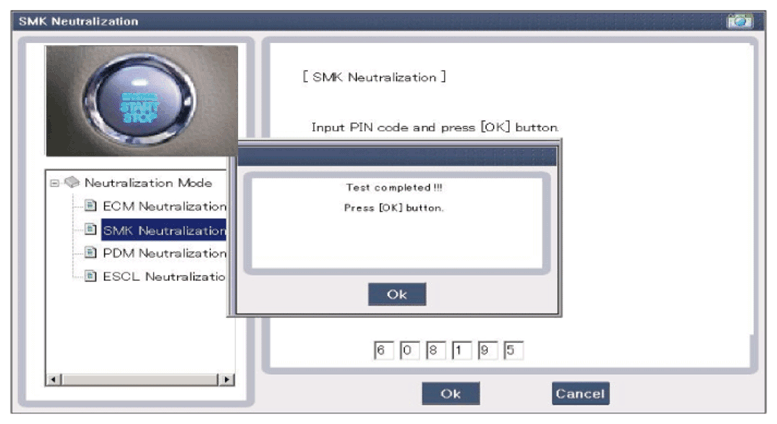

Fig 7: Screen Display - SMK Neutralization Mode (Test Completed)
Courtesy of KIA MOTORS AMERICA, INC.

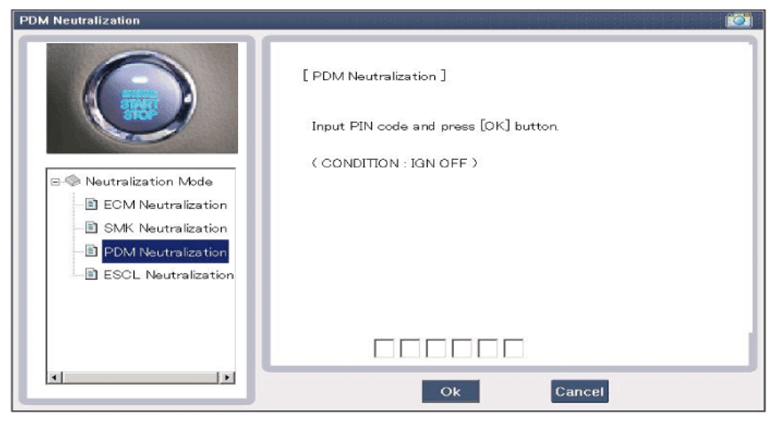

Fig 8: Screen Display - PDM Neutralization Mode (Input Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

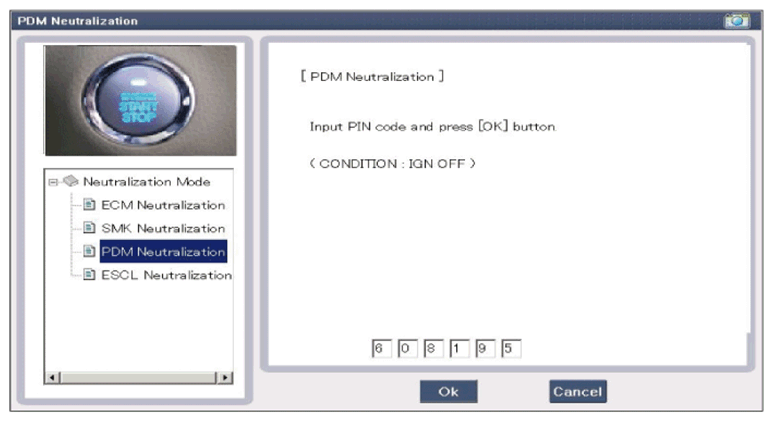

Fig 9: Screen Display - PDM Neutralization Mode (Pin Code 608195)
Courtesy of KIA MOTORS AMERICA, INC.

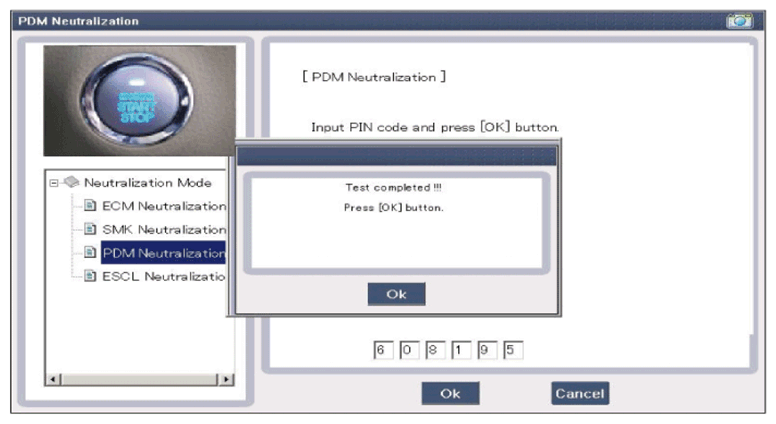

Fig 10: Screen Display - PDM Neutralization Mode (Test Completed)
Courtesy of KIA MOTORS AMERICA, INC.

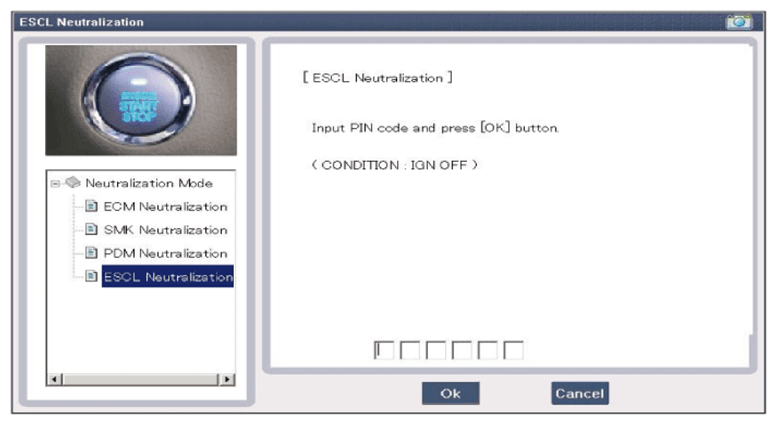

Fig 11: Screen Display - ESCL Neutralization Mode (Input Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

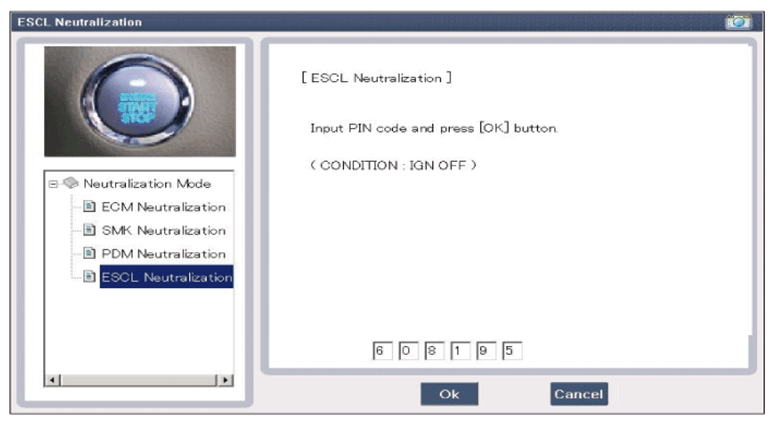

Fig 12: Screen Display - ESCL Neutralization Mode (Pin Code 608195)
Courtesy of KIA MOTORS AMERICA, INC.

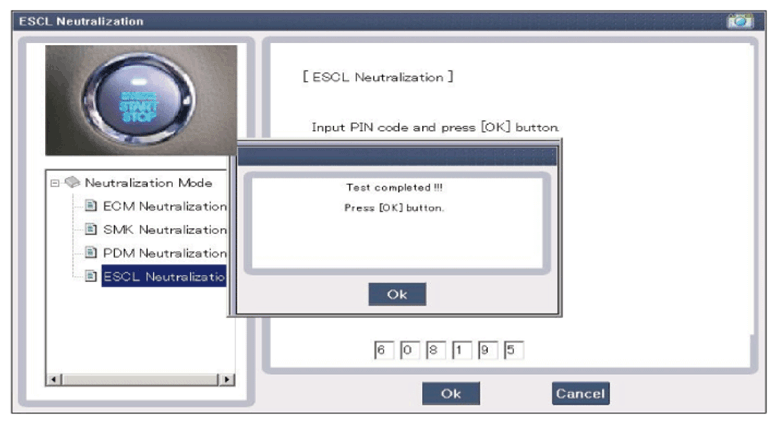

Fig 13: Screen Display - ESCL Neutralization Mode (Test Completed)
Courtesy of KIA MOTORS AMERICA, INC.
