Smart Key Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "SMK STATUS INFO".

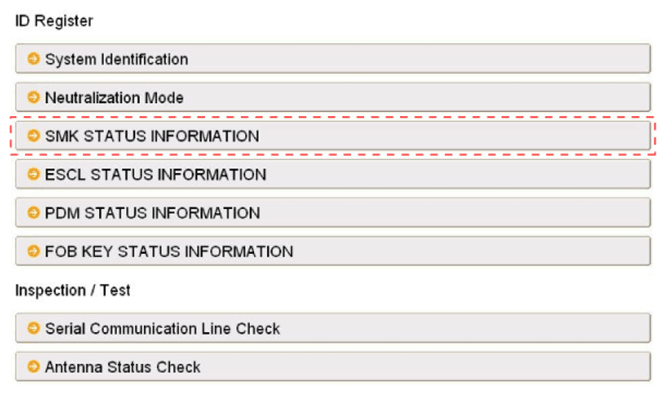

Fig 1: Screen Display - Selecting SMK Status Information
Courtesy of KIA MOTORS AMERICA, INC.

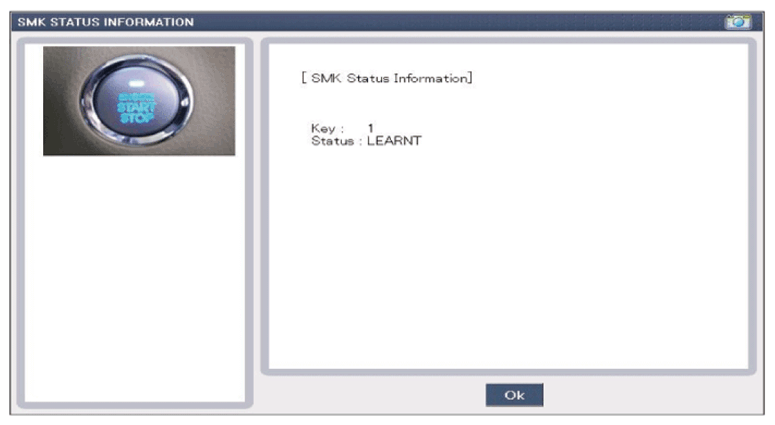

Fig 2: Screen Display - SMK Status Information
Courtesy of KIA MOTORS AMERICA, INC.
