Power Window Relay: Troubleshooting

  1. No windows operate from the main switch on the driver's door.

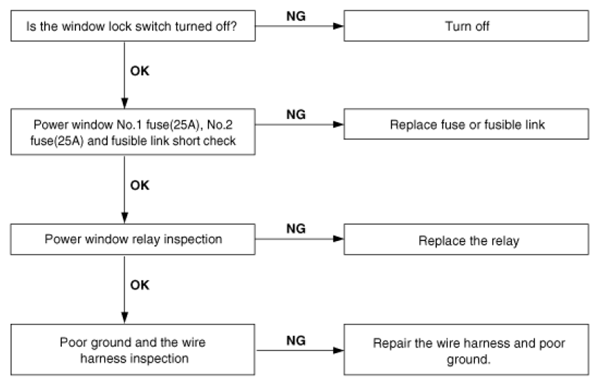

    Fig 1: No Windows Operating From Main Switch - Troubleshooting Flow Diagram
    G07369337Courtesy of KIA MOTORS AMERICA, INC.
  2. Driver's side window does not operate.

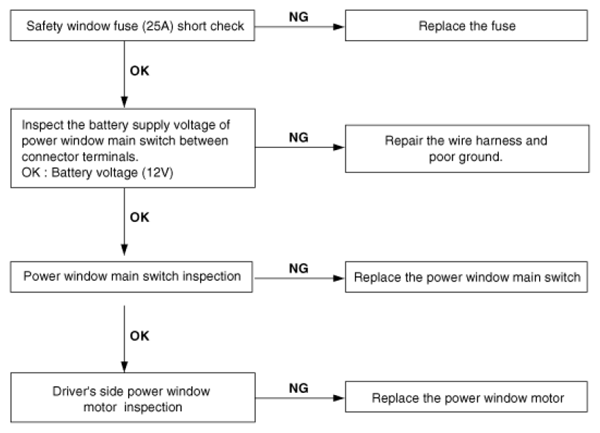

    Fig 2: Drivers Side Window Does Not Operate - Troubleshooting Flow Diagram
    G07369338Courtesy of KIA MOTORS AMERICA, INC.
  3. Passenger's side window does not operate.

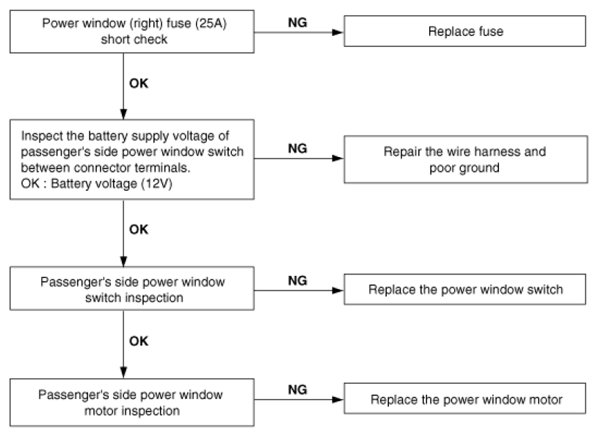

    Fig 3: Passengers Side Window Does Not Operate - Troubleshooting Flow Diagram
    G07369339Courtesy of KIA MOTORS AMERICA, INC.
