Power Window Main Switch

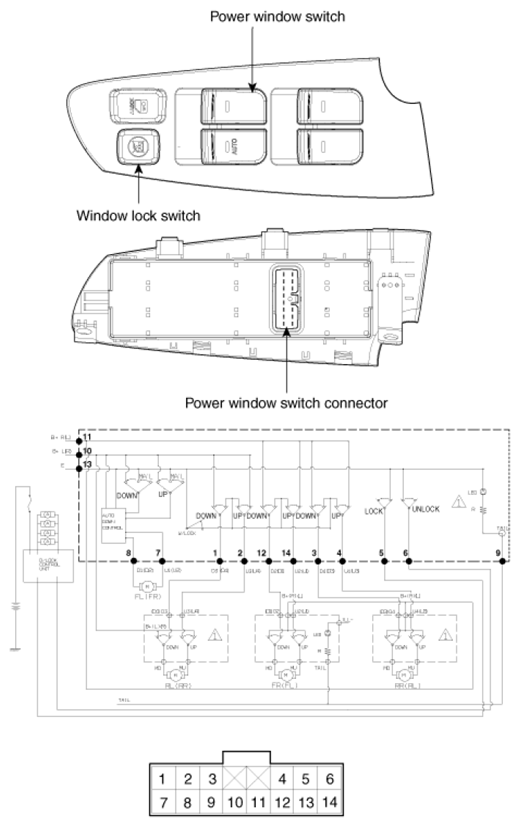

Fig 1: Power Window Switch Wiring Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
