Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
For sedan, refer to FRONT DOOR . For coupe, refer to FRONT DOOR .

Fig 1: Power Window Main Switch
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector from the switch and remove the screws.

Fig 2: Power Window Main Switch Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hooks when removing the switch module.

Fig 3: Identifying Switch Module Hooks
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
(A : Auto Down, B : Auto Up & Down)

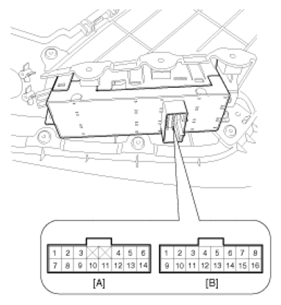

Fig 4: Switch Module Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

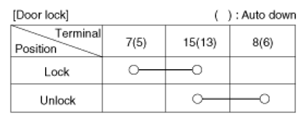

Fig 5: Switch Module Terminals Continuity Chart (Door Lock)
Courtesy of KIA MOTORS AMERICA, INC.

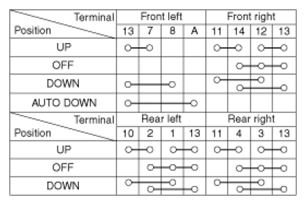

Fig 6: Switch Module Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
