Components and Components Location: Component

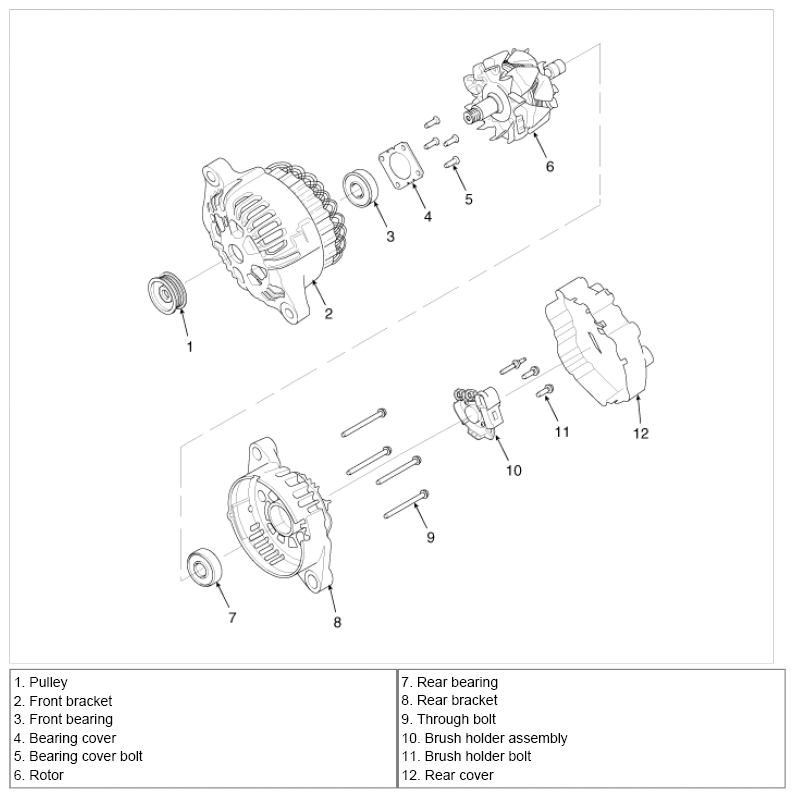

Fig 1: Exploded View Of Alternator

G07367691

Courtesy of KIA MOTORS AMERICA, INC.
