Component and Components Location: Component

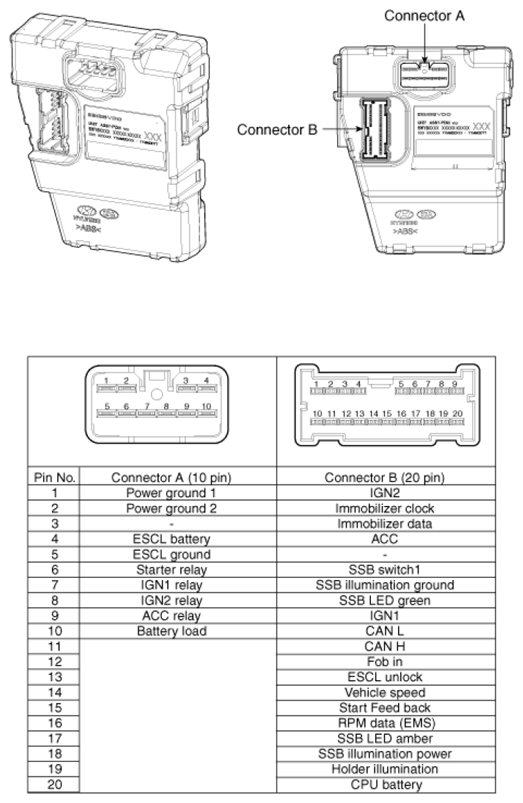

Fig 1: Power Distribution Module Connector Terminal Identification
G07369547Courtesy of KIA MOTORS AMERICA, INC.
