Component and Components Location: Component

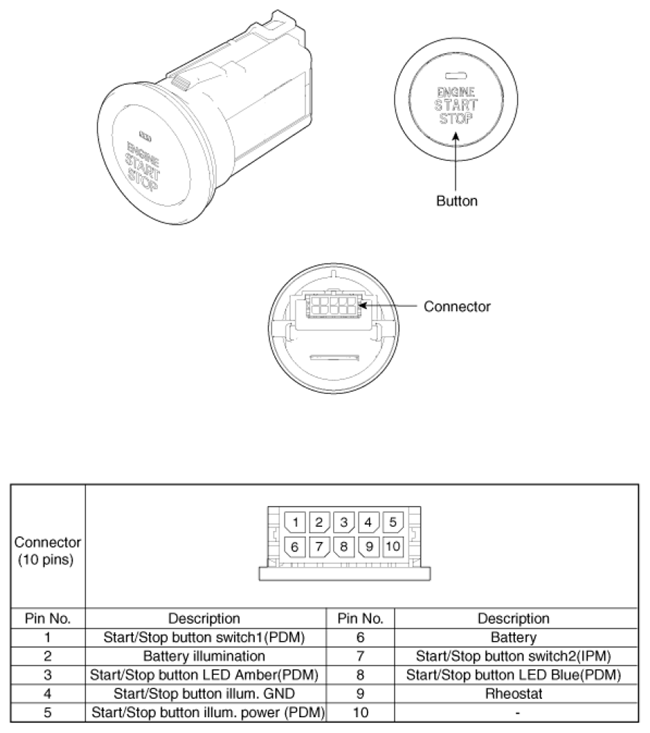

Fig 1: Start/Stop Button Connector Terminal Identification
G07369537Courtesy of KIA MOTORS AMERICA, INC.
