Repair procedures: Inspection

Remove the fuse box cover.
Remove the starter relay (A).

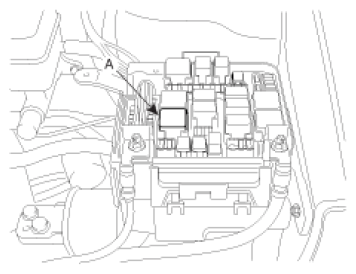

Fig 1: Identifying Starter Relay
Courtesy of KIA MOTORS AMERICA, INC.

Using an ohmmeter, check that there is continuity between each terminal.

CONTINUITY REFERENCE CHART

Terminal	Continuity
30 -87	NO
85 -86	YES

Apply 12V to terminal 85 and ground to terminal 86.
Check for continuity between terminals 30 and 87.

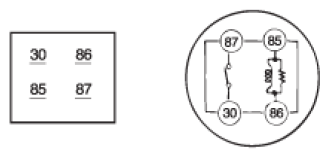

Fig 2: Starter Relay Terminals
Courtesy of KIA MOTORS AMERICA, INC.
If there is no continuity, replace the starter relay.
Install the starter relay.
Install the fuse box cover.
