2.0 ULEV-Single CVVT

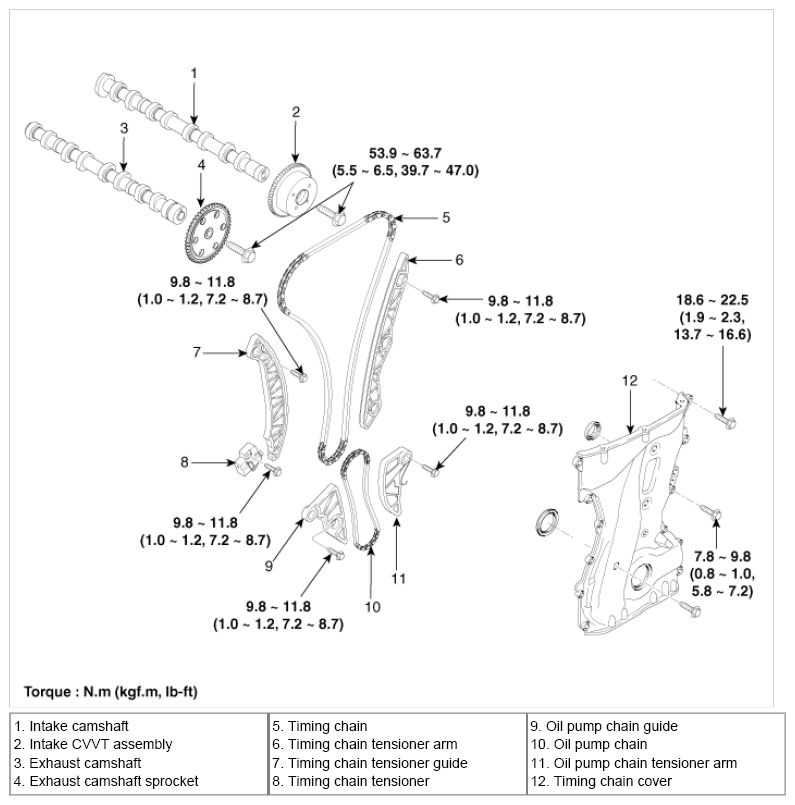

Fig 1: Exploded View Of Timing System With Torque Specifications (2.0 ULEV-Single CVVT)
G07367436Courtesy of KIA MOTORS AMERICA, INC.
