Circuit Diagram

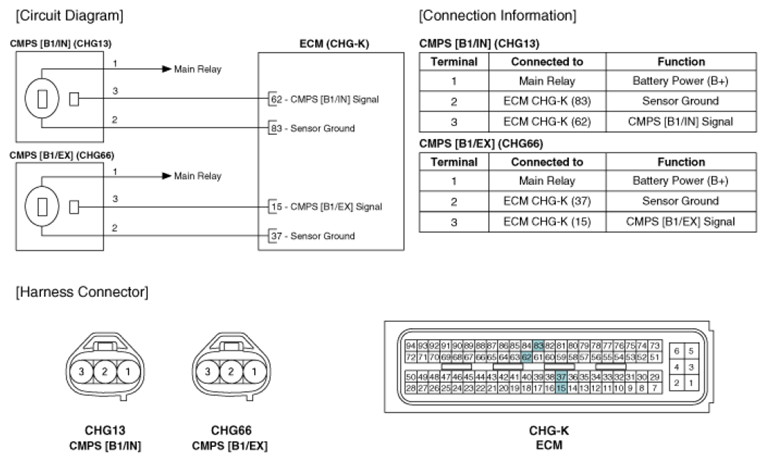

Fig 1: Camshaft Position Sensor - Circuit Diagram & Connector Terminal Identification
G07367825Courtesy of KIA MOTORS AMERICA, INC.
