Circuit Diagram

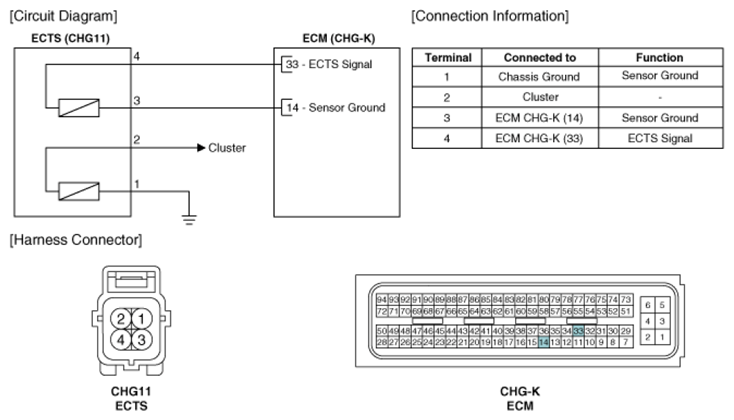

Fig 1: Engine Coolant Temperature Sensor - Circuit Diagram & Connector Terminal Identification
G07367819Courtesy of KIA MOTORS AMERICA, INC.
