Circuit Diagram

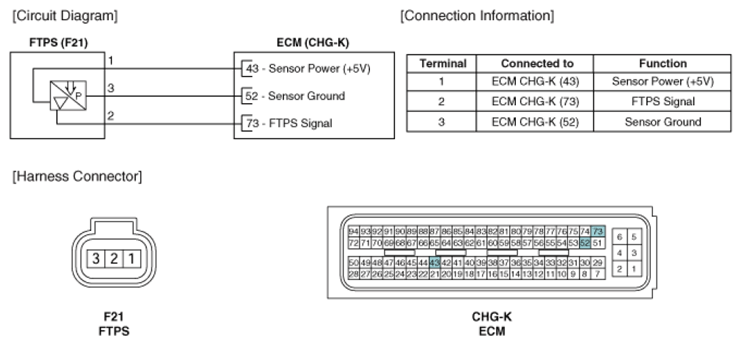

Fig 1: Fuel Tank Pressure Sensor - Circuit Diagram & Connector Terminal Identification
G07367835Courtesy of KIA MOTORS AMERICA, INC.
