Circuit Diagram

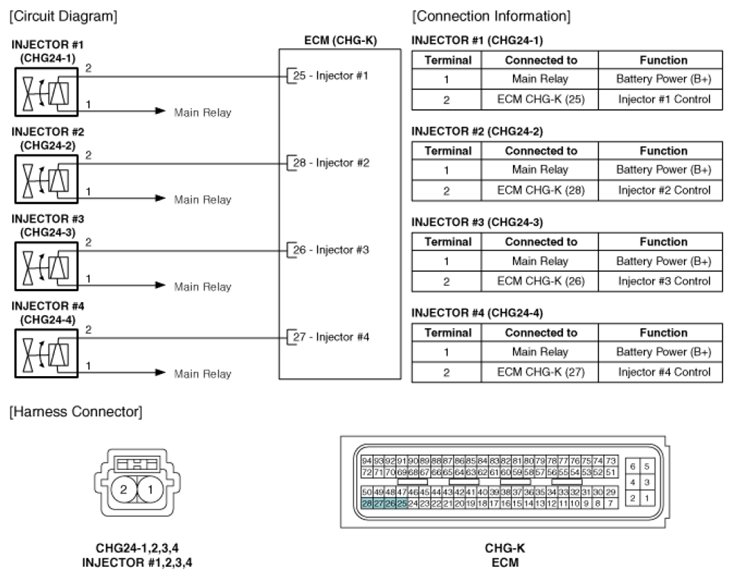

Fig 1: Injector - Circuit Diagram & Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
