Components And Components Location: Components

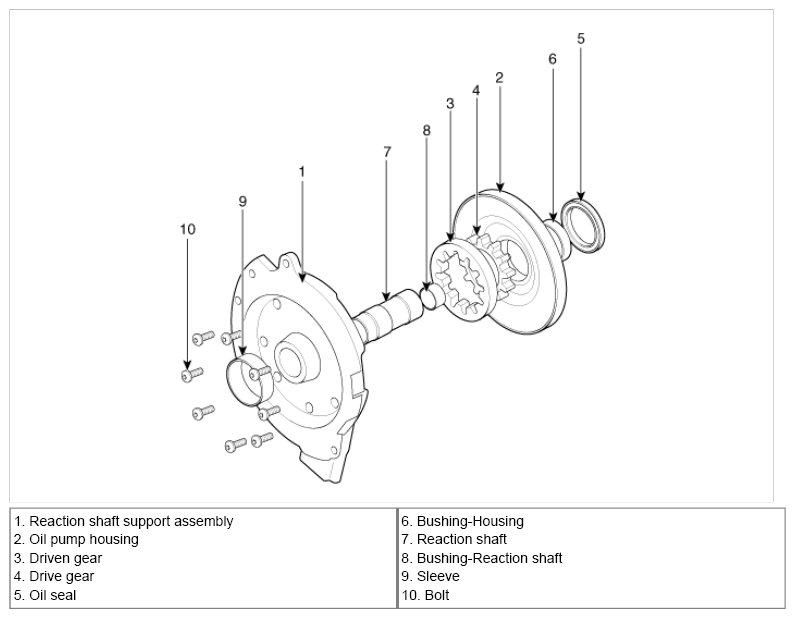

Fig 1: Exploded View Of Oil Pump
G07367958Courtesy of KIA MOTORS AMERICA, INC.
