Repair procedures: Installation

Check that the shift lever is placed in the "N" position
Install the inhibitor switch (A).
NOTE: Lightly tighten the inhibitor switch mounting bolts so that necessary adjustments can be made.

Fig 1: Inhibitor Assembly
Courtesy of KIA MOTORS AMERICA, INC.

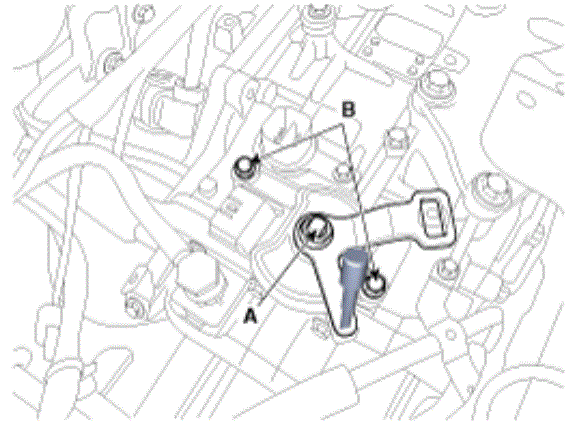

Install the manual control lever (A).
NOTE: Lightly tighten the manual control lever nut (B) so that necessary adjustments can be made.

Fig 2: Manual Control Lever & Nut
Courtesy of KIA MOTORS AMERICA, INC.

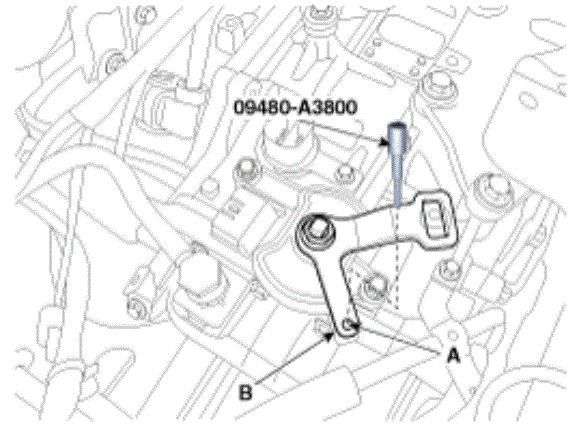

Align the hole (A) in the manual control lever with the "N" position hole (B) of the inhibitor switch and then insert the SST inhibitor switch guide pin (09480-A3800).

Fig 3: Manual Control Lever Hole & Inhibitor Switch Hole
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the nut (A) and bolts (B) with the specified torque.
Tightening torque:
1. 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)
2. 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
Fig 4: Nut & Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the SST (09480-A3800) from the hole.
Connect the inhibitor switch connector (A).
Install the shift cable by tightening nut (B).
NOTE: Lightly tighten the shift cable mounting nut (B) so that necessary adjustments can be made.

Fig 5: Inhibitor Switch Connector & Shift Cable Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

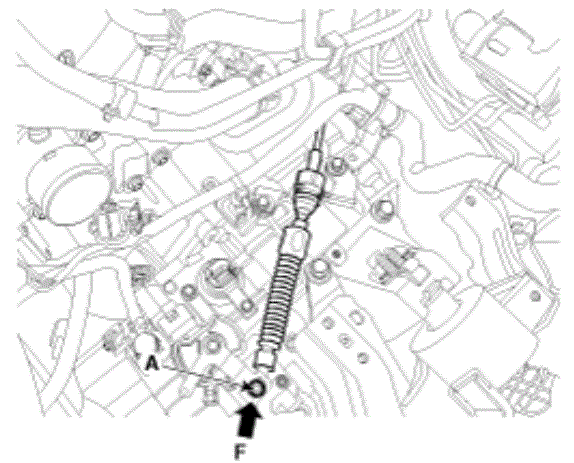

Push the shift cable to the arrow "F" to eliminate free play and then tighten the nut (A) with the specified torque.

Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.8 lb-ft)

Fig 6: Shift Cable Nut

Courtesy of KIA MOTORS AMERICA, INC.

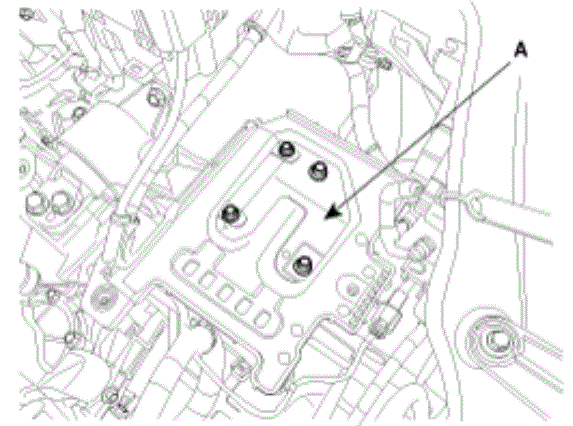

Fig 7: Battery Tray

Courtesy of KIA MOTORS AMERICA, INC.

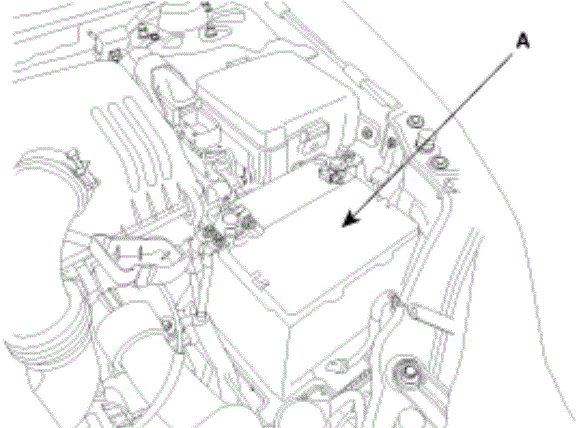

Fig 8: Battery

Courtesy of KIA MOTORS AMERICA, INC.

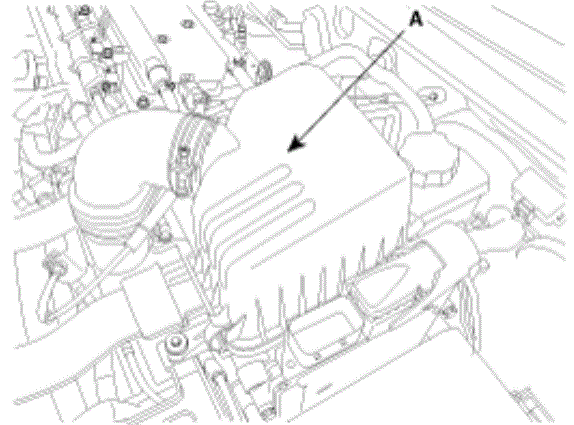

Install the air cleaner assembly (A).

Fig 9: Air Cleaner Assembly
Courtesy of KIA MOTORS AMERICA, INC.

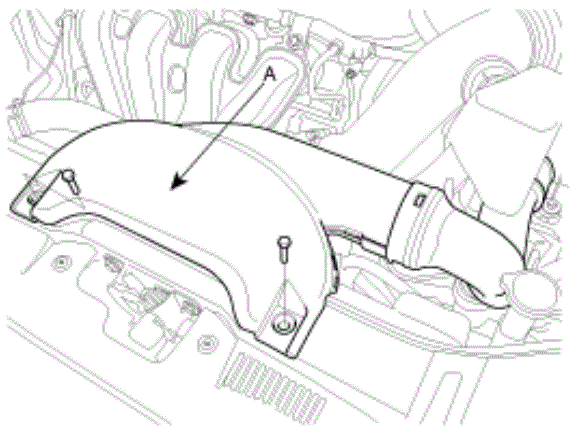

Install the air duct (A).

Fig 10: Air Duct
Courtesy of KIA MOTORS AMERICA, INC.
