Passenger Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim.
For sedan, refer to FRONT DOOR . For coupe, refer to FRONT DOOR .
Remove the power window switch module (A).

Fig 1: Passenger Power Window Switch Module
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
(A : Door Lock / Unlock, B : General)

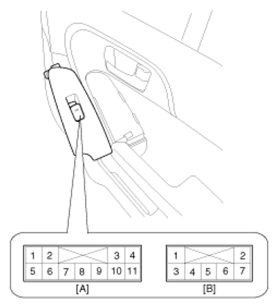

Fig 2: Passenger Power Window Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

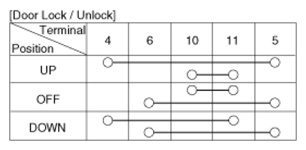

Fig 3: Passenger Power Window Switch Terminals Continuity Chart (Door Lock/Unlock)
Courtesy of KIA MOTORS AMERICA, INC.

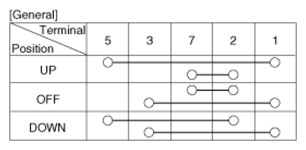

Fig 4: Passenger Power Window Switch Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
