Circuit Diagram

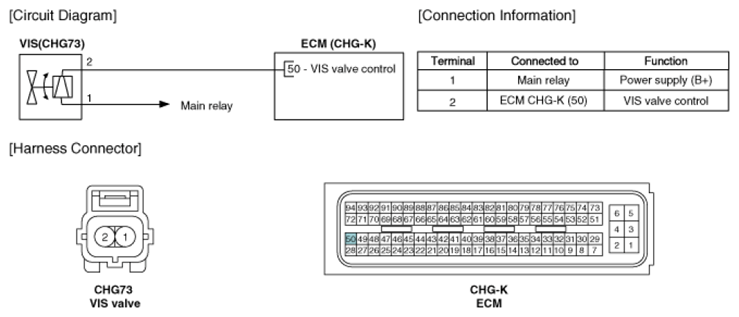

Fig 1: Variable Intake Solenoid (VIS) Valve - Circuit Diagram & Connector Terminal Identification
G07367844Courtesy of KIA MOTORS AMERICA, INC.
