Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

After IG ON, select the "Neutralization mode".

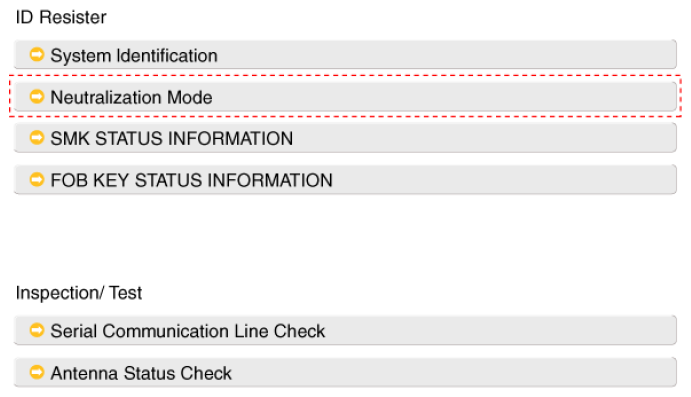

Fig 1: Display - Neutralization Mode

Courtesy of KIA MOTORS AMERICA, INC.

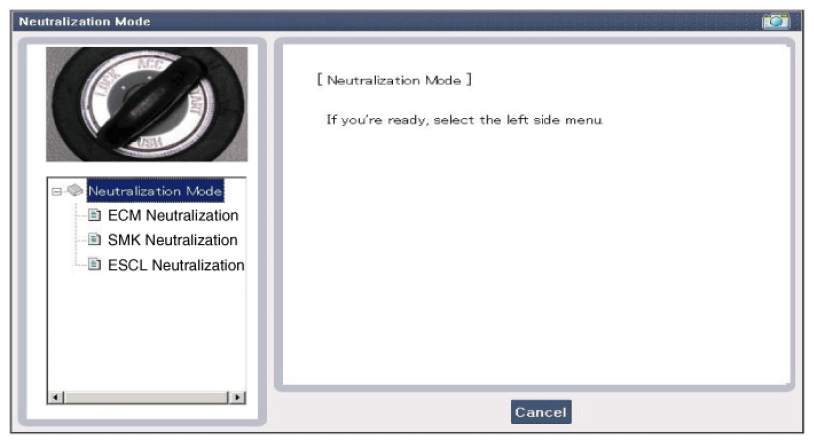

Fig 2: Display - Neutralization Mode Screen

Courtesy of KIA MOTORS AMERICA, INC.

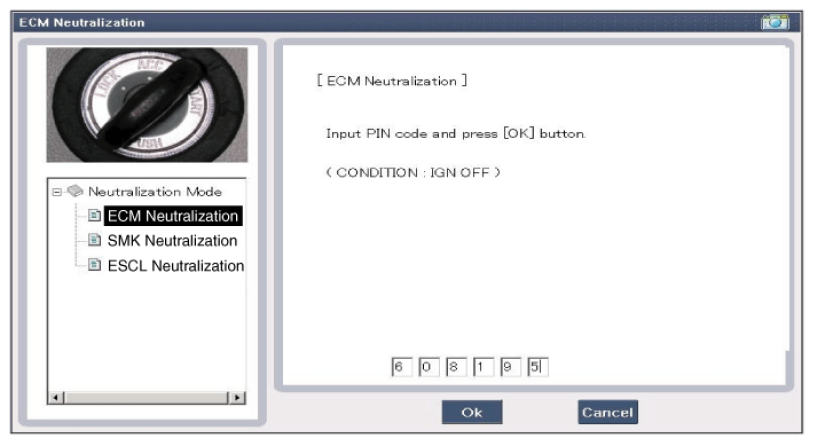

Fig 3: Display - ECM Neutralization (With Input Code)

Courtesy of KIA MOTORS AMERICA, INC.

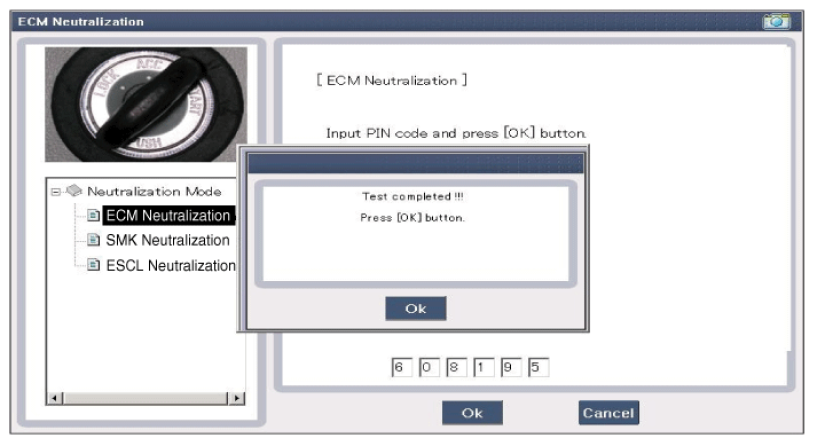

Fig 4: Display - ECM Neutralization Test Completed Message

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Display - SMK Neutralization Screen (Without Input Code)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Display - SMK Neutralization Screen (With Input Code)

Courtesy of KIA MOTORS AMERICA, INC.

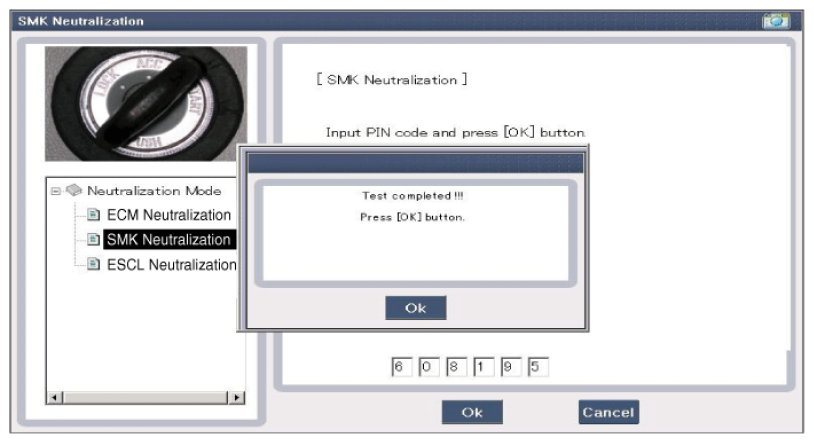

Fig 7: Display - SMK Neutralization Test Completed Message

Courtesy of KIA MOTORS AMERICA, INC.

INPUT SWITCH LIST

ACTUATOR LIST

No.	Item name	Condition
1	Immo.indicator Lamp	Ignition switch ON Engine off
2	External Buzzer	Ignition switch ON Engine off
3	Interior Antenna 1 Active	Ignition switch ON Engine off
4	Interior Antenna 2 Active	Ignition switch ON Engine off
5	Trunk Antenna Active	Ignition switch ON Engine off
6	Bumper Antenna Active	Ignition switch ON Engine off
7	DRV DR Antenna Active	Ignition switch ON Engine off
8	AST DR Antenna Active	Ignition switch ON Engine off
