Circuit Diagram

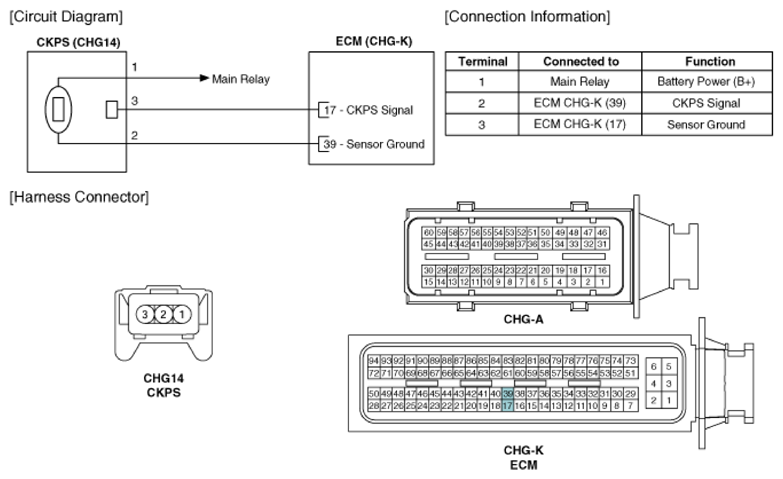

Fig 1: CKPS (CHG14) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
G08312851Courtesy of KIA MOTORS AMERICA, INC.
