Intake Air Temperature Sensor (IATS): Specification

Temperature [°C(°F)]	Resistance (kΩ)
-40(-40)	40.93 ~ 48.35
-20(-4)	13.89 ~ 16.03
0(32)	5.38 ~ 6.09
10(50)	3.48 ~ 3.90
20(68)	2.31 ~ 2.57
40(104)	1.08 ~ 1.21
50(122)	1.56 ~ 1.74
60(140)	0.54 ~ 0.62
80(176)	0.29 ~ 0.34

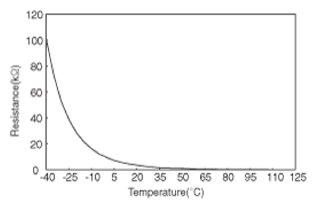

Fig 1: Intake Air Temperature Sensor Characteristics Graph

Courtesy of KIA MOTORS AMERICA, INC.
