Circuit Diagram

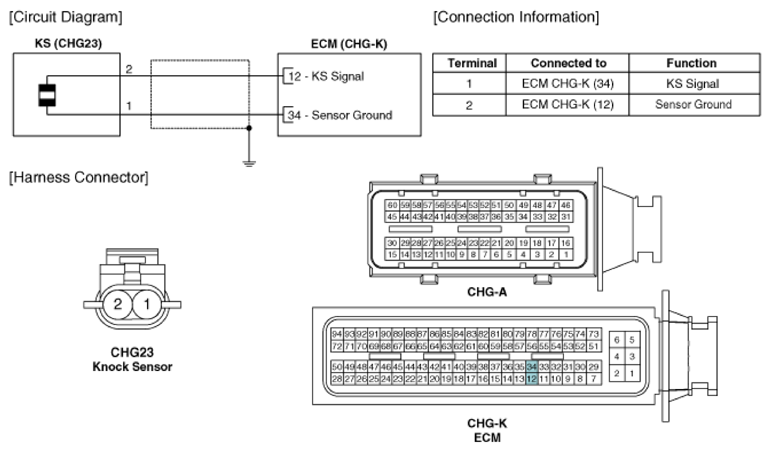

Fig 1: KS (CHG23) And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
G08312861Courtesy of KIA MOTORS AMERICA, INC.
