Signal Waveform

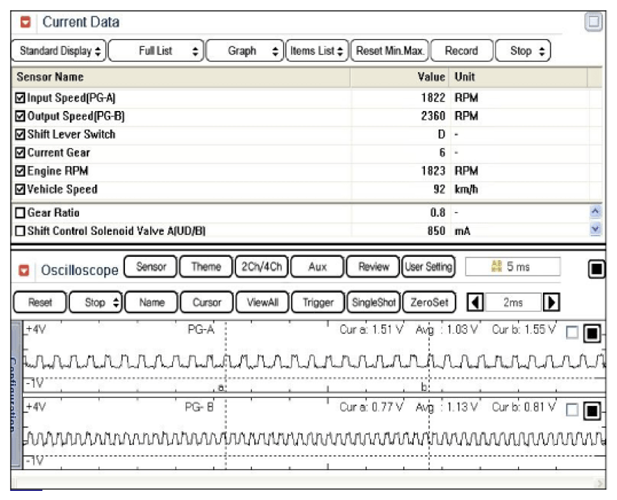

Fig 1: Input/Output Speed Sensor Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

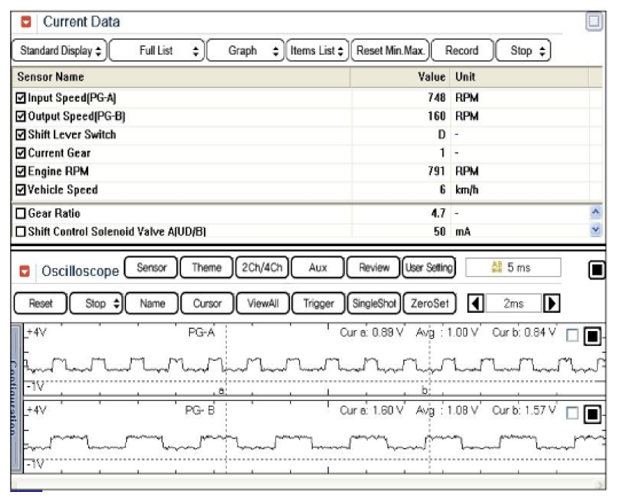

Fig 2: Input/Output Speed Sensor Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
