Control Cable Replacement

Remove the center console assembly.
(Refer to "CONSOLE ".)
Remove the control cable (B).

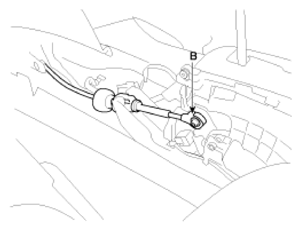

Fig 1: Locating Control Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable assembly in the vehicle after removing the nuts (B) and the retainer (A).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.9 lb-ft)

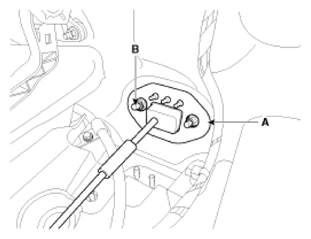

Fig 2: Locating Control Cable Assembly Nuts And Retainer
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut (C).
Remove the cable (B) from the bracket (A) at transaxle assembly side (Refer to "AUTOMATIC TRANSAXLE " in this group).

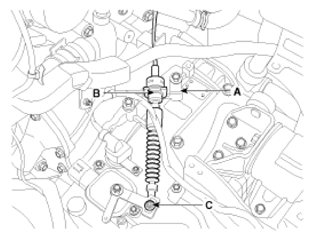

Fig 3: Locating Cable, Bracket And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable inside of cab.
