Repair procedures: Removal

Air cleaner assembly and air duct.
(Refer to "Intake and Exhaust system" in EM group)
Remove the Hybrid Power Control Unit (HPCU) assembly.
(Refer to "HYBRID CONTROL SYSTEM " in HC group)
Remove the under cover (A).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 1: Locating Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ATF warmer.
(Refer to "ATF WARMER " in this group)

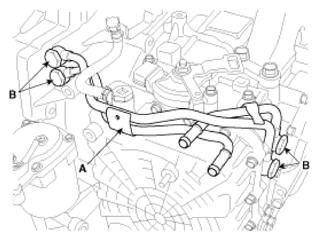

Remove the AT tube (A) after removing eye bolt (B).
Tightening torque:

42 ~ 48 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 31.4 lb-ft)

Fig 2: Locating AT Tube And Eye Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.(Refer to "AUTOMATIC TRANSAXLE " in this group.)
Remove the valve body cover (A) and breather hose clip (B).
Tightening torque:
1. 13.8 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)
Fig 3: Locating Valve Body Cover And Breather Hose Clip
Courtesy of KIA MOTORS AMERICA, INC.

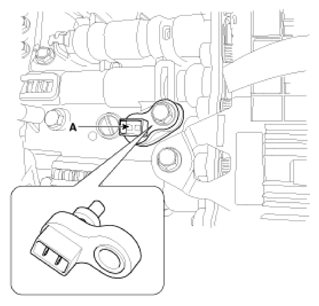

Disconnect the oil temperature sensor connector (A).

Fig 4: Locating Oil Temperature Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil temperature sensor (A) after removing a bolt.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

Fig 5: Locating Oil Temperature Sensor

Courtesy of KIA MOTORS AMERICA, INC.
