Control Module, A/T

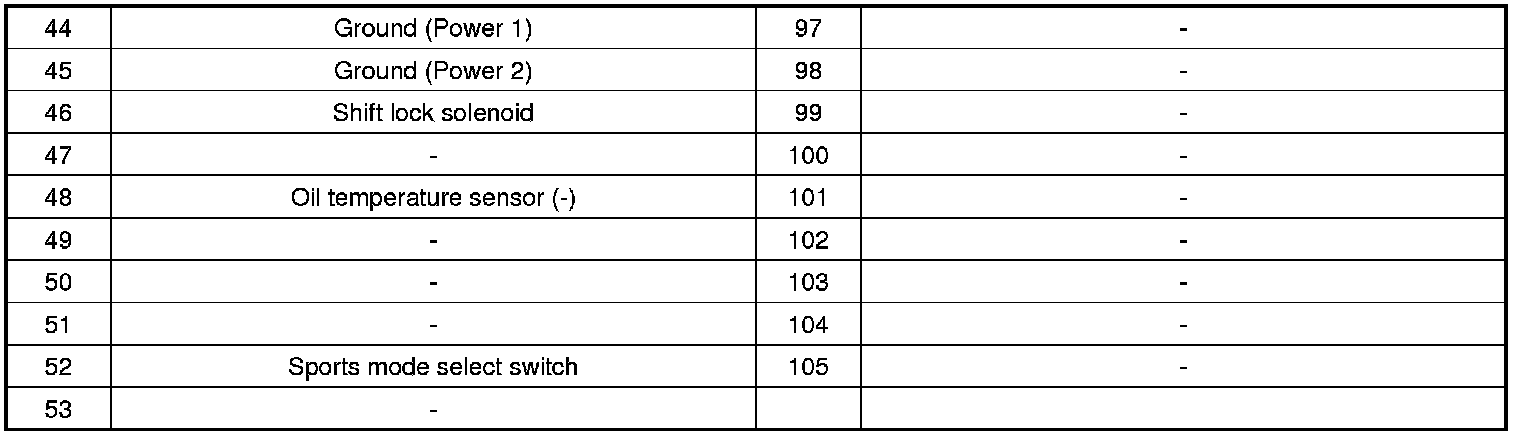

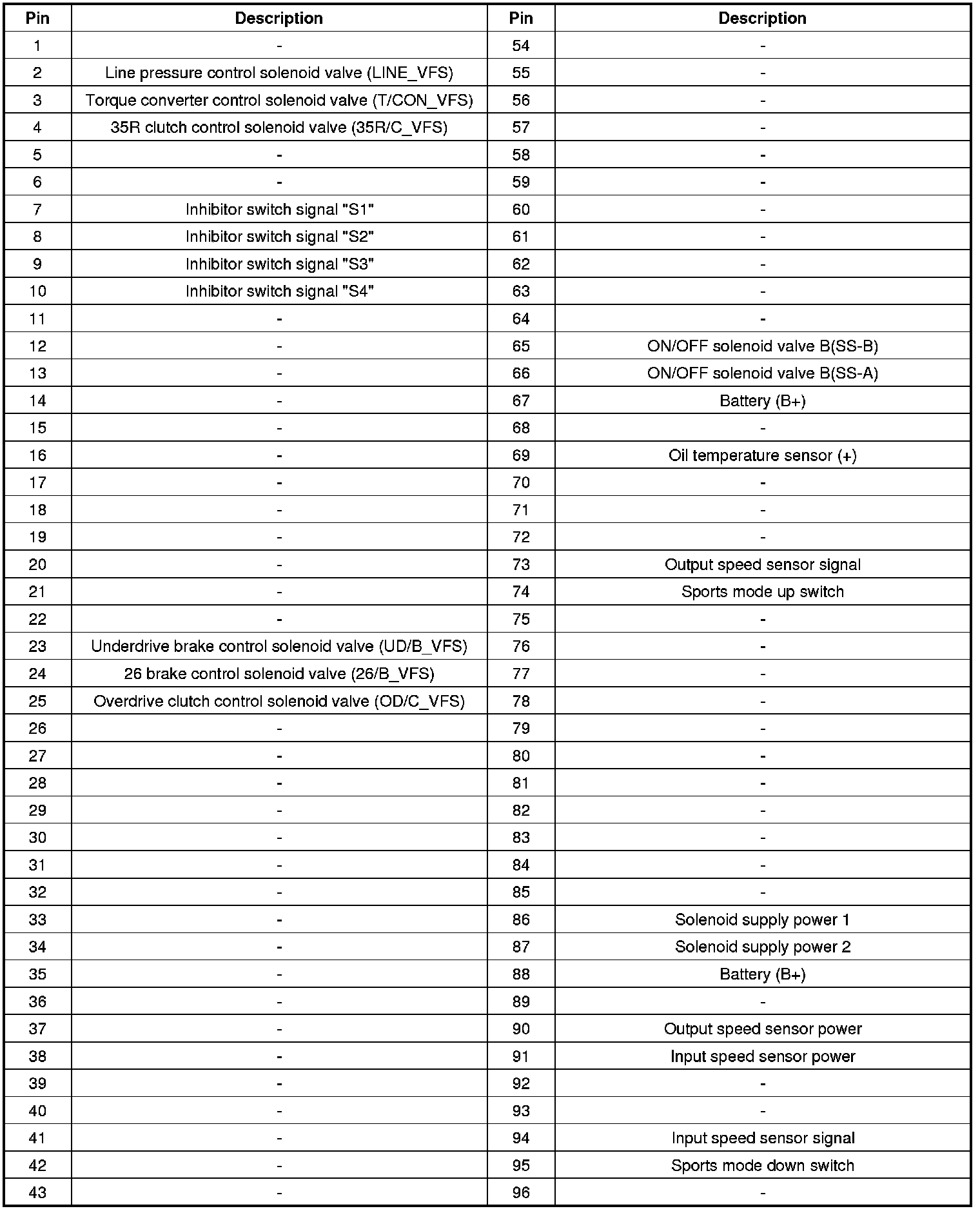

1. TCM Connector and Terminal Function





2. TCM Terminal Function

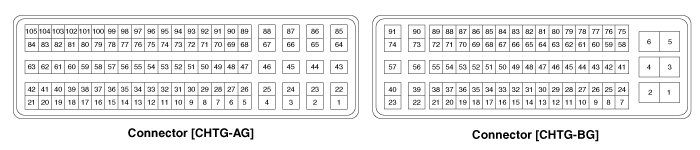

Connector [CHTG-AG]

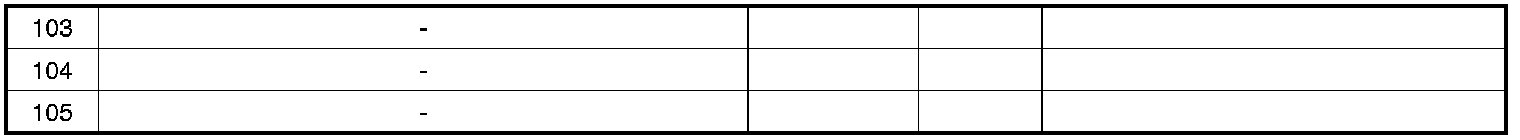

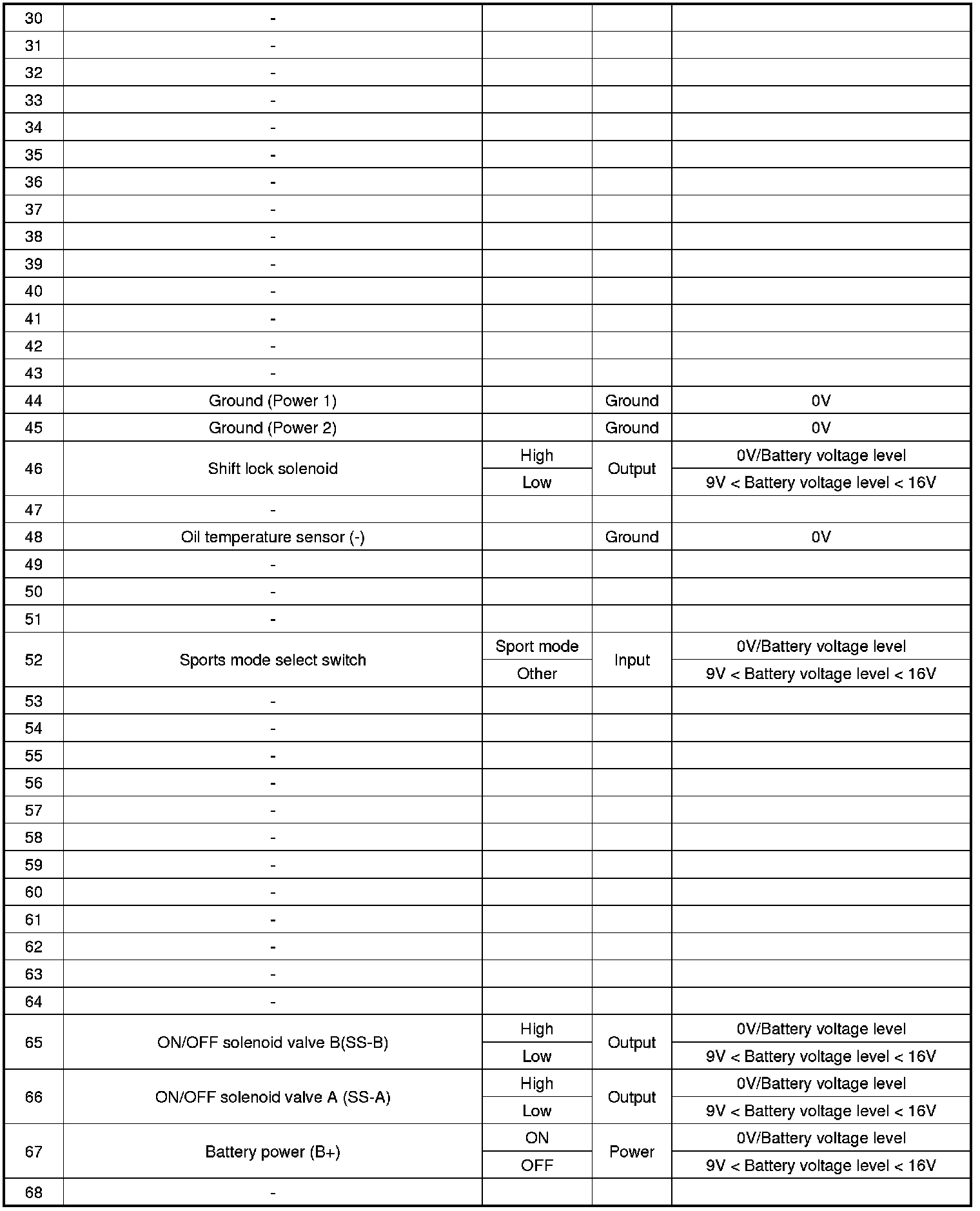

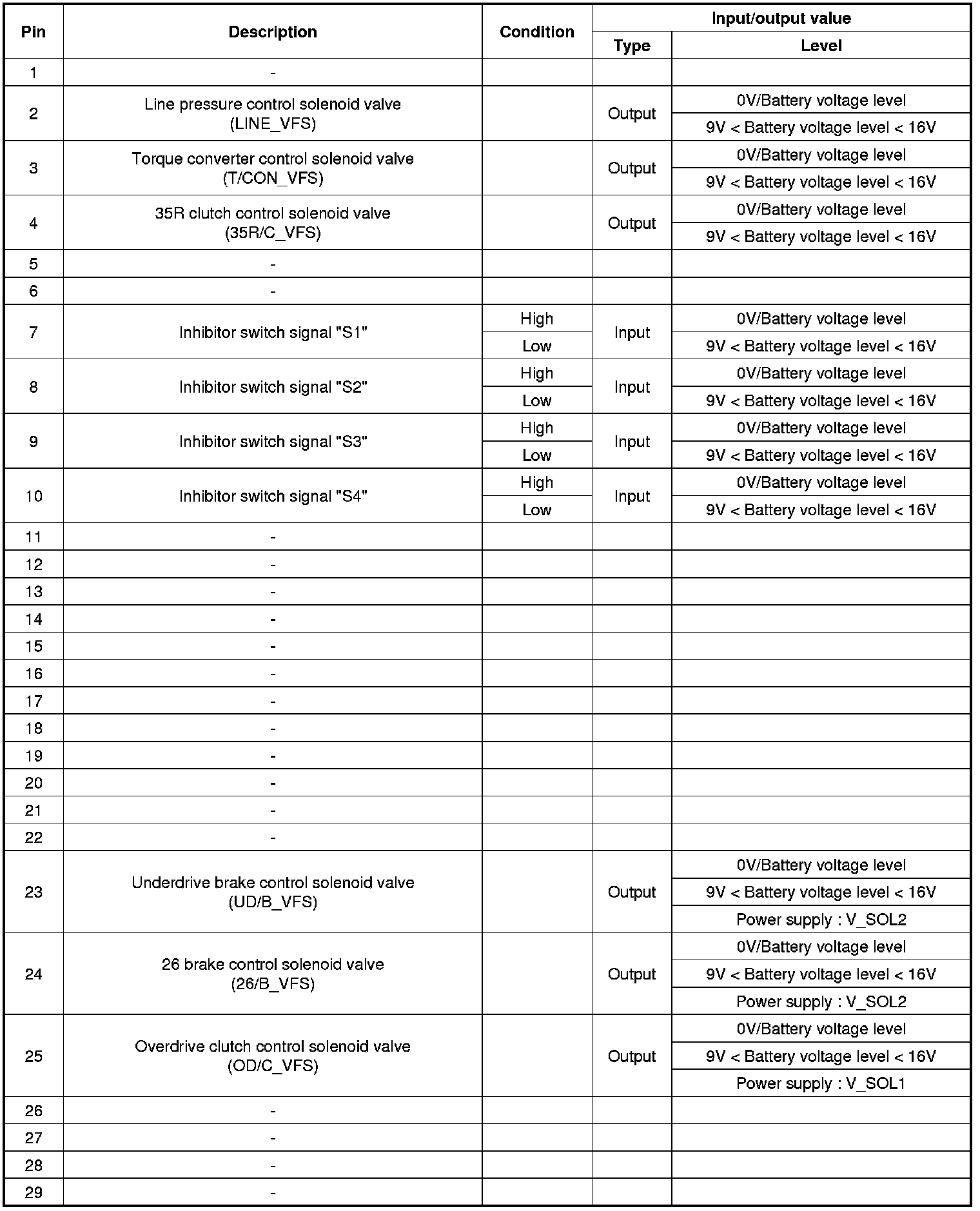

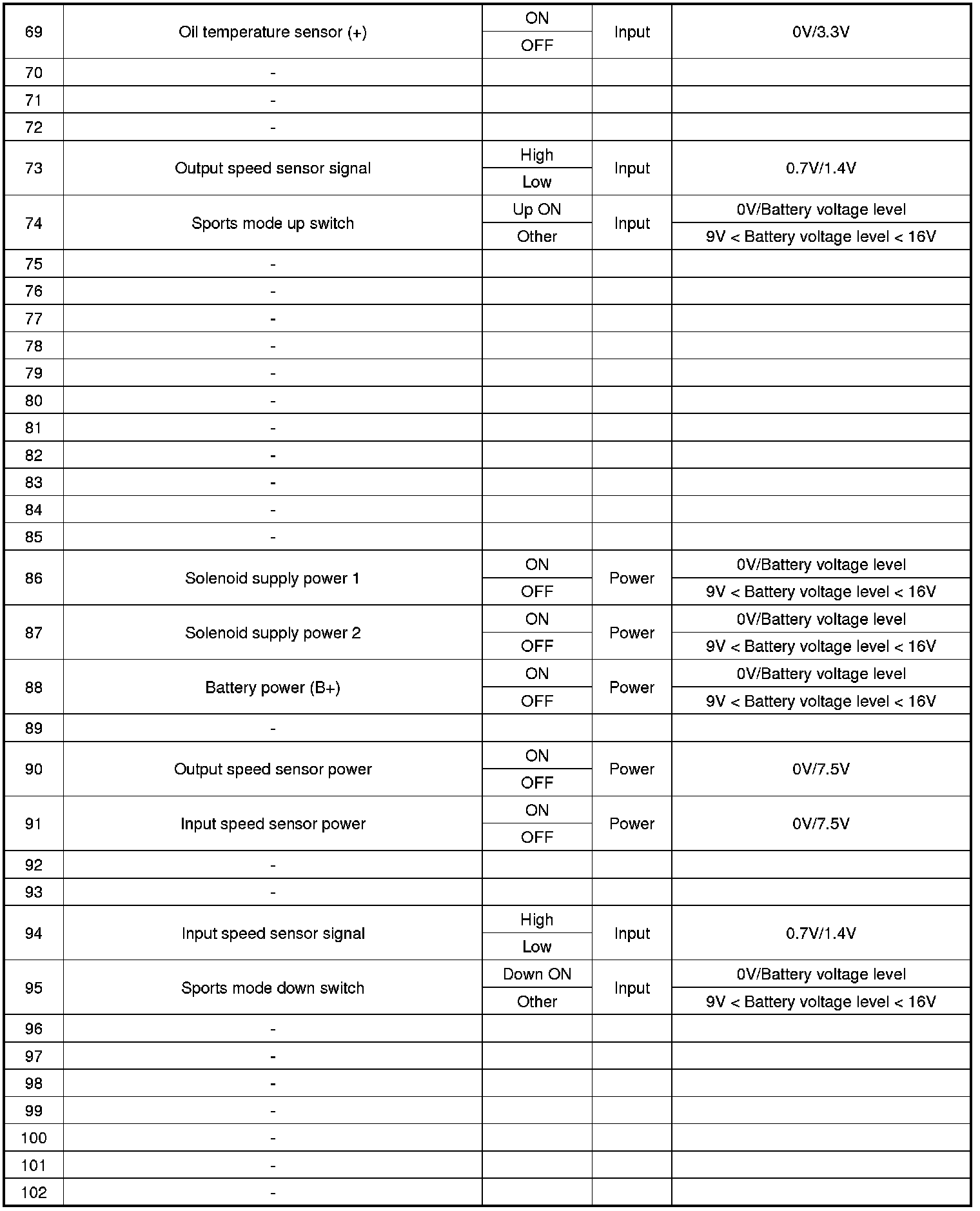

TCM Terminal Input/ Output Signal

Connector [CHTG-AG]

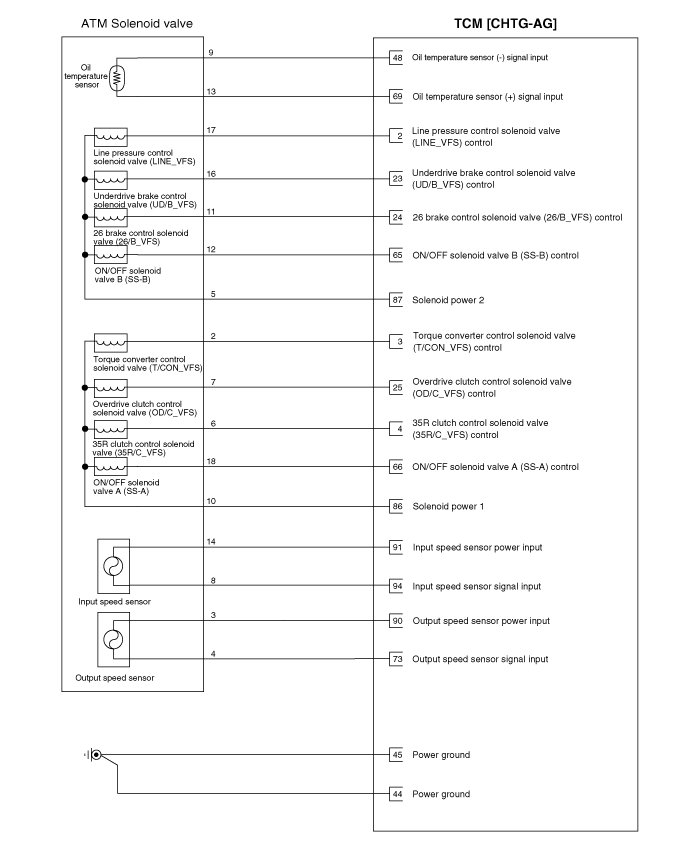

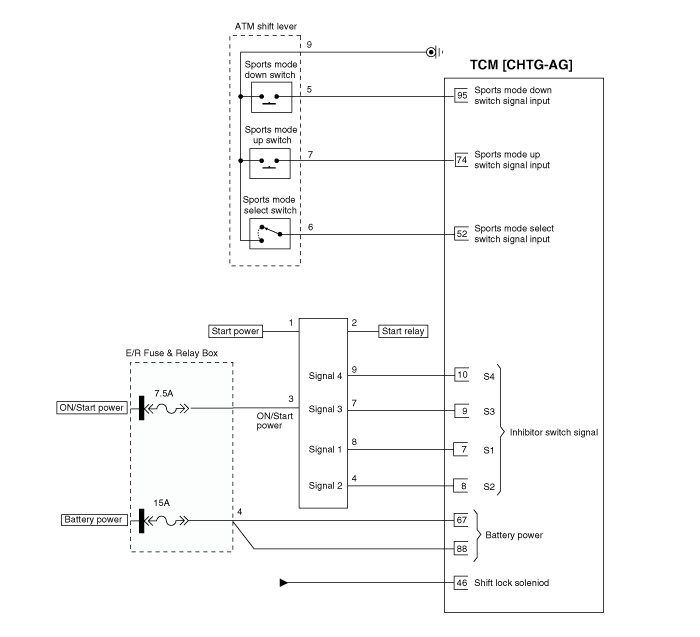

Circuit Diagram
