Engine Control Module





ECM Terminal And Input/Output signal

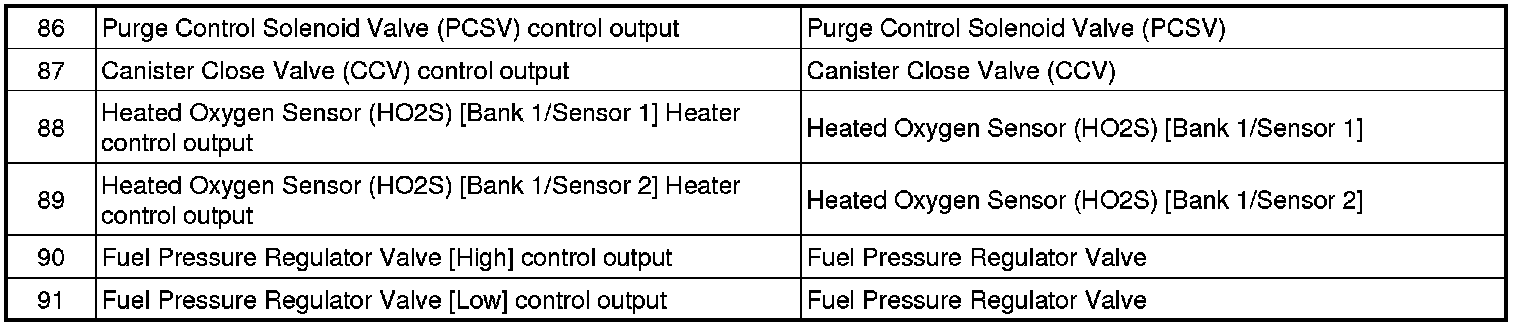

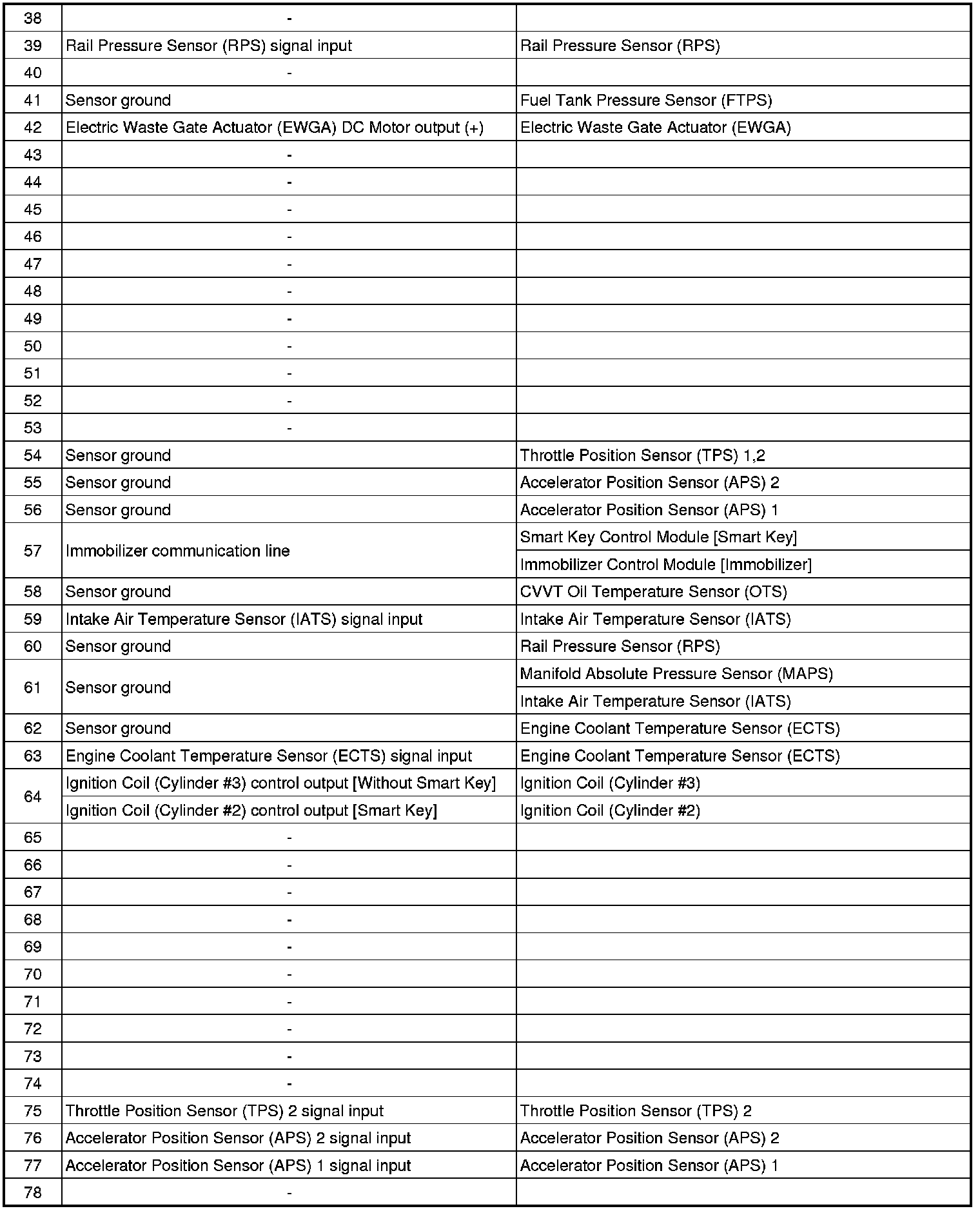

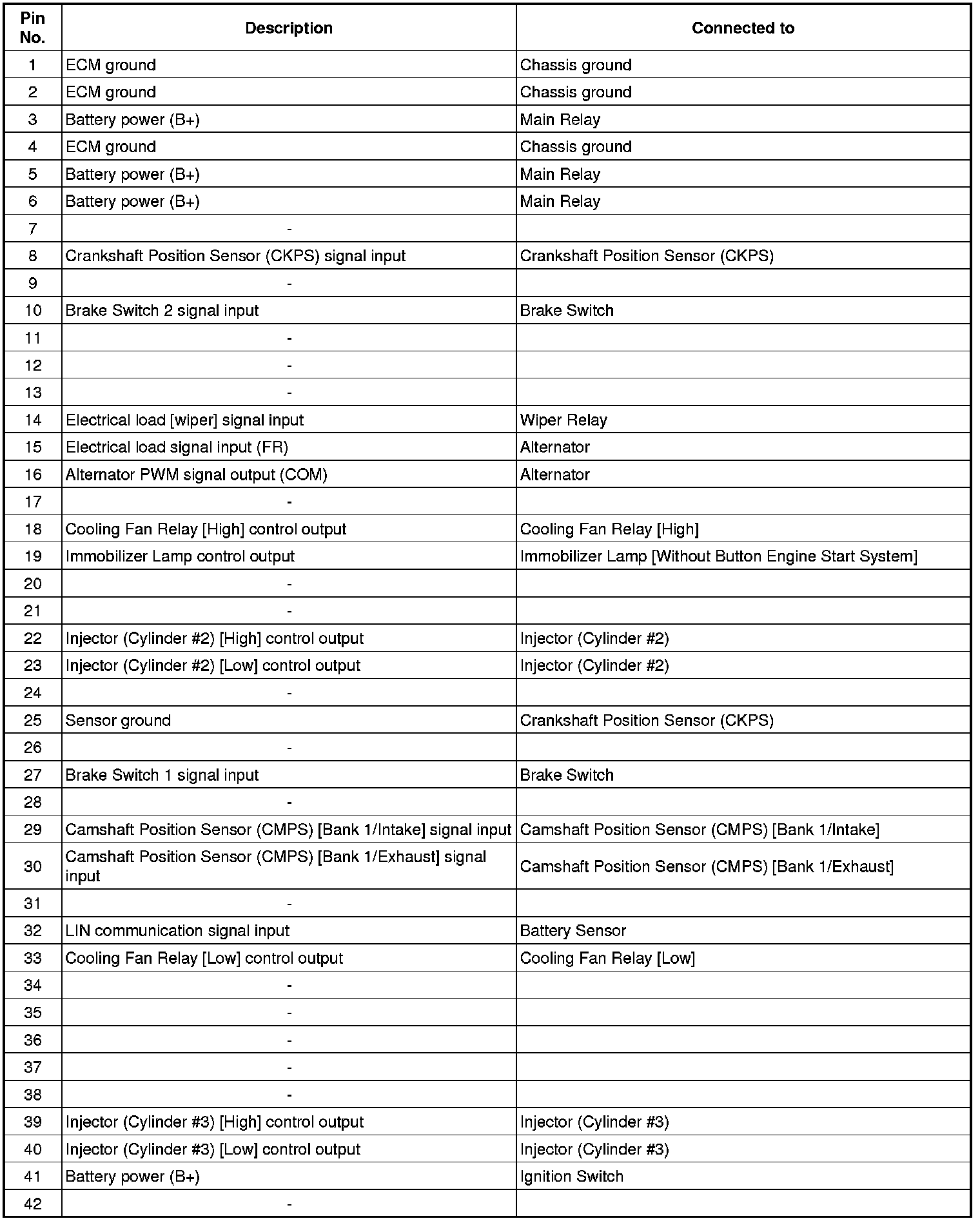

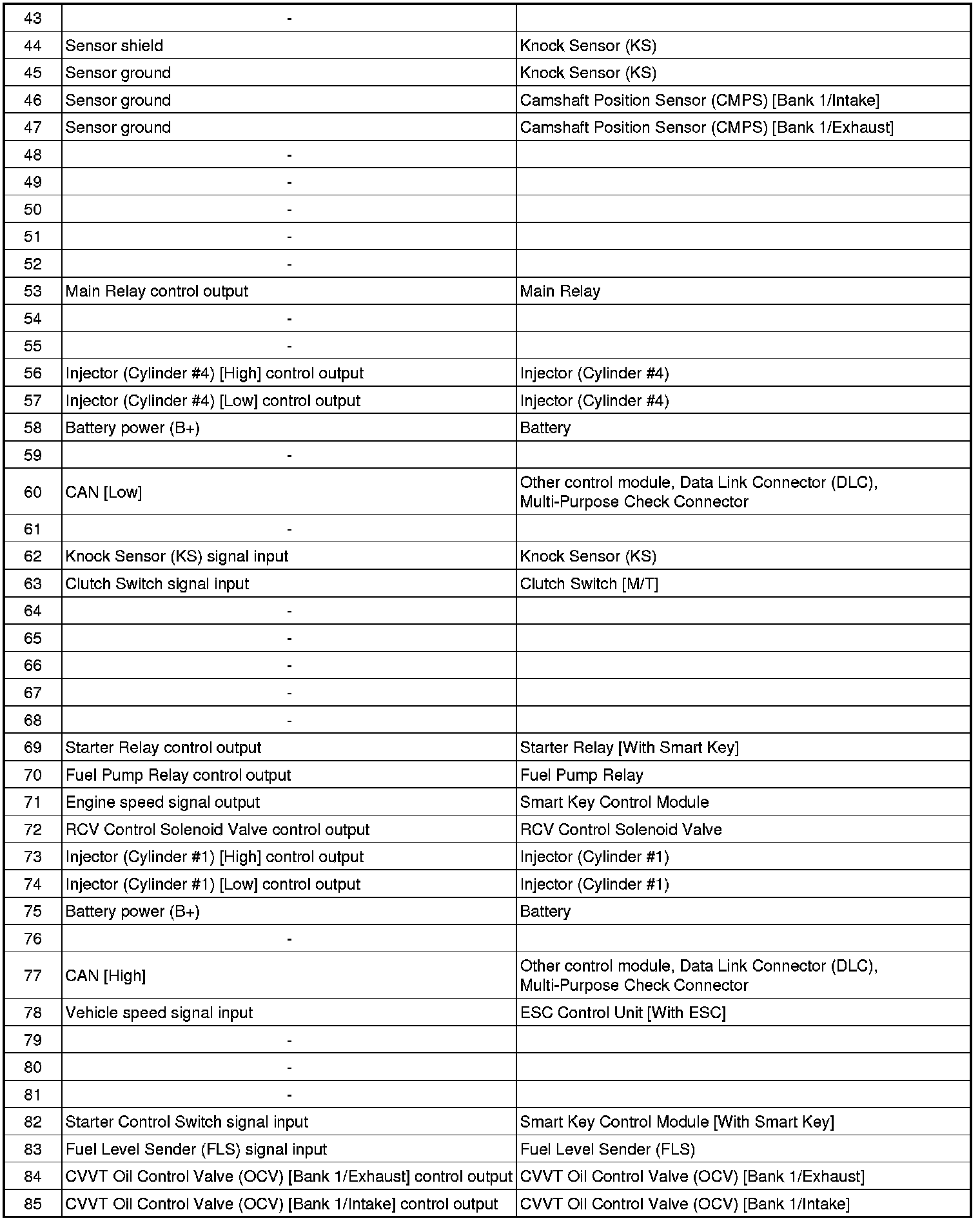

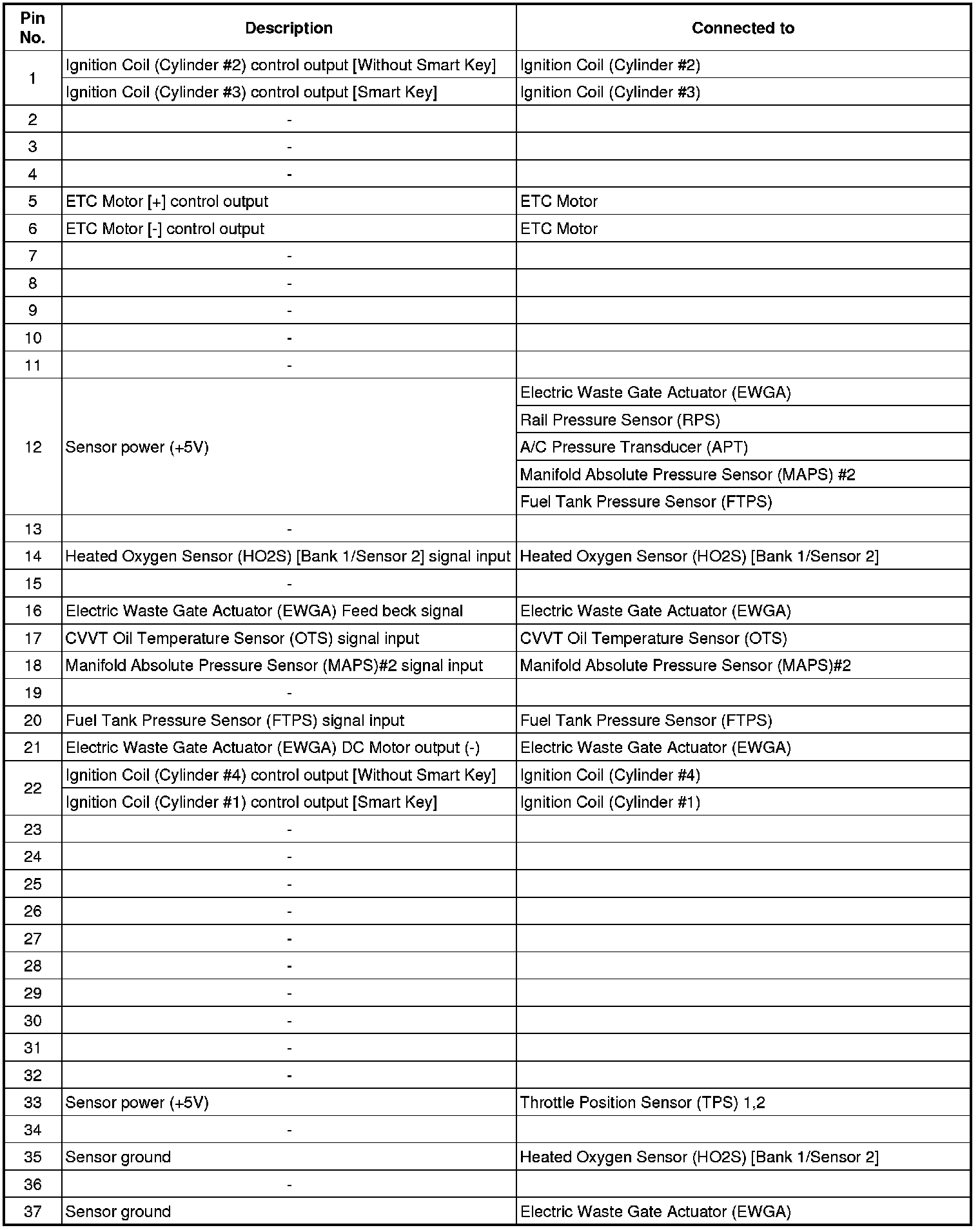

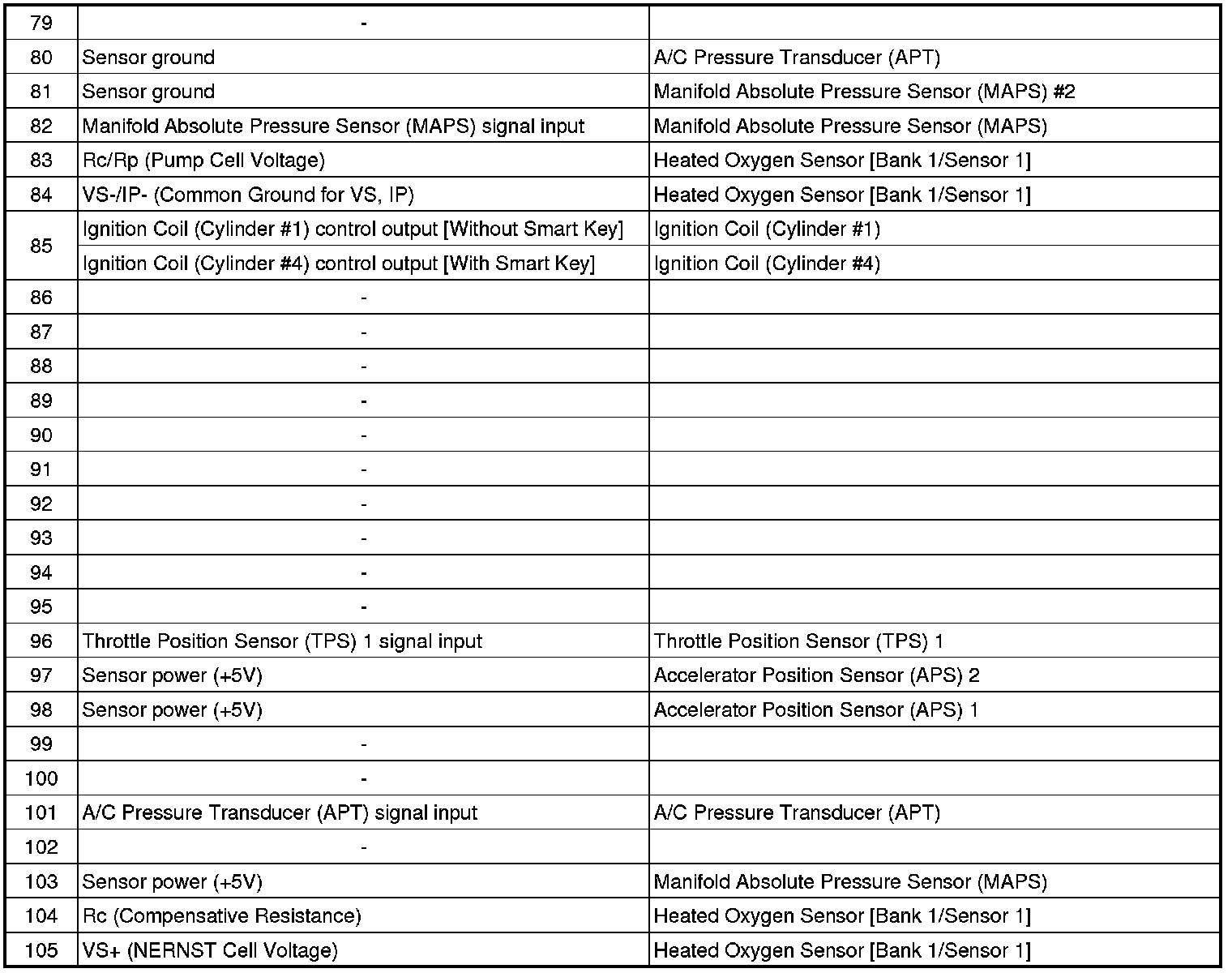

ECM Terminal Function

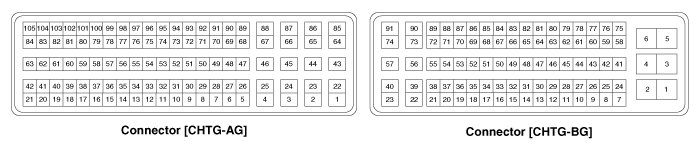

Connector [CHTG-AG]













Connector [CHTG-BG]

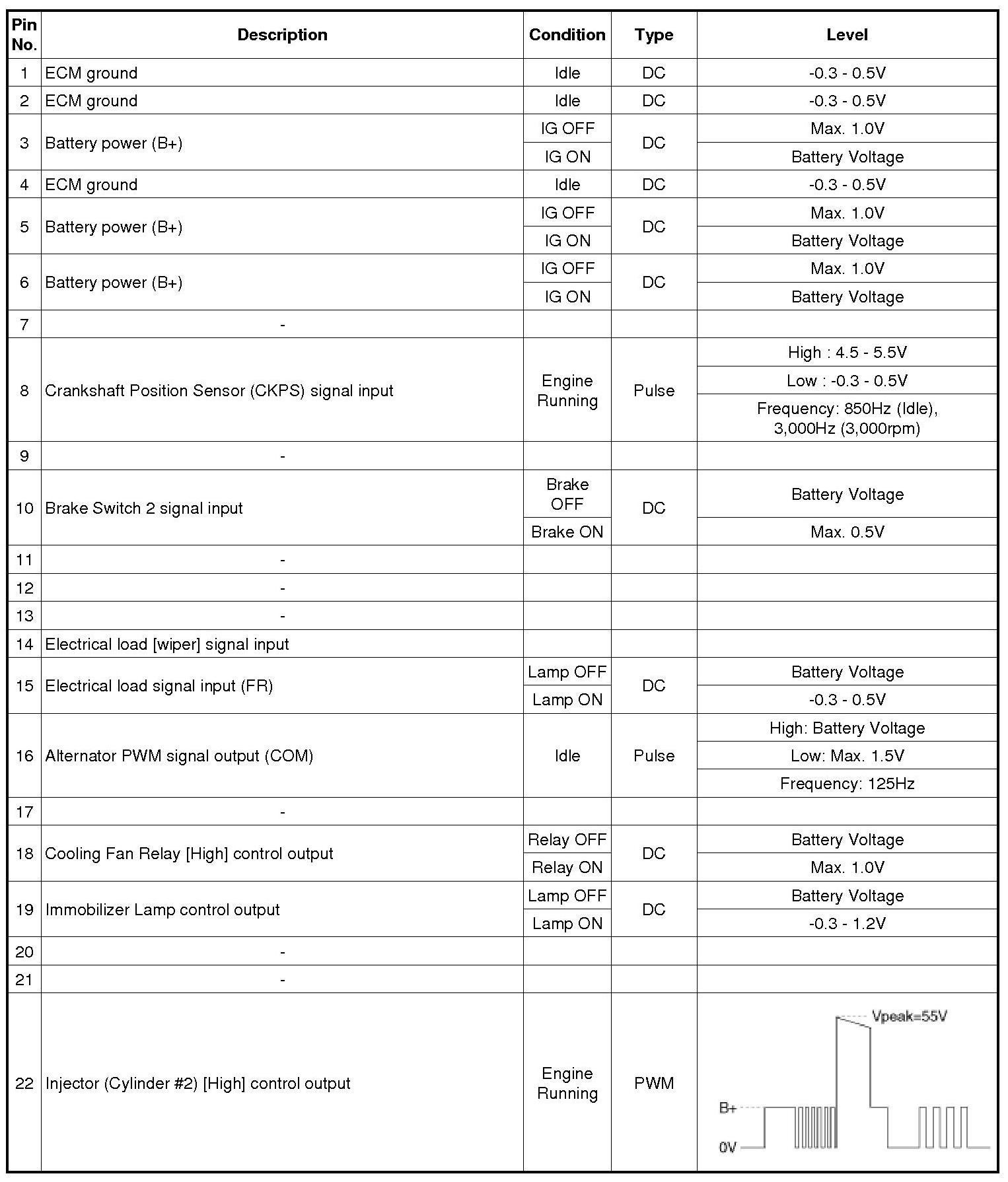

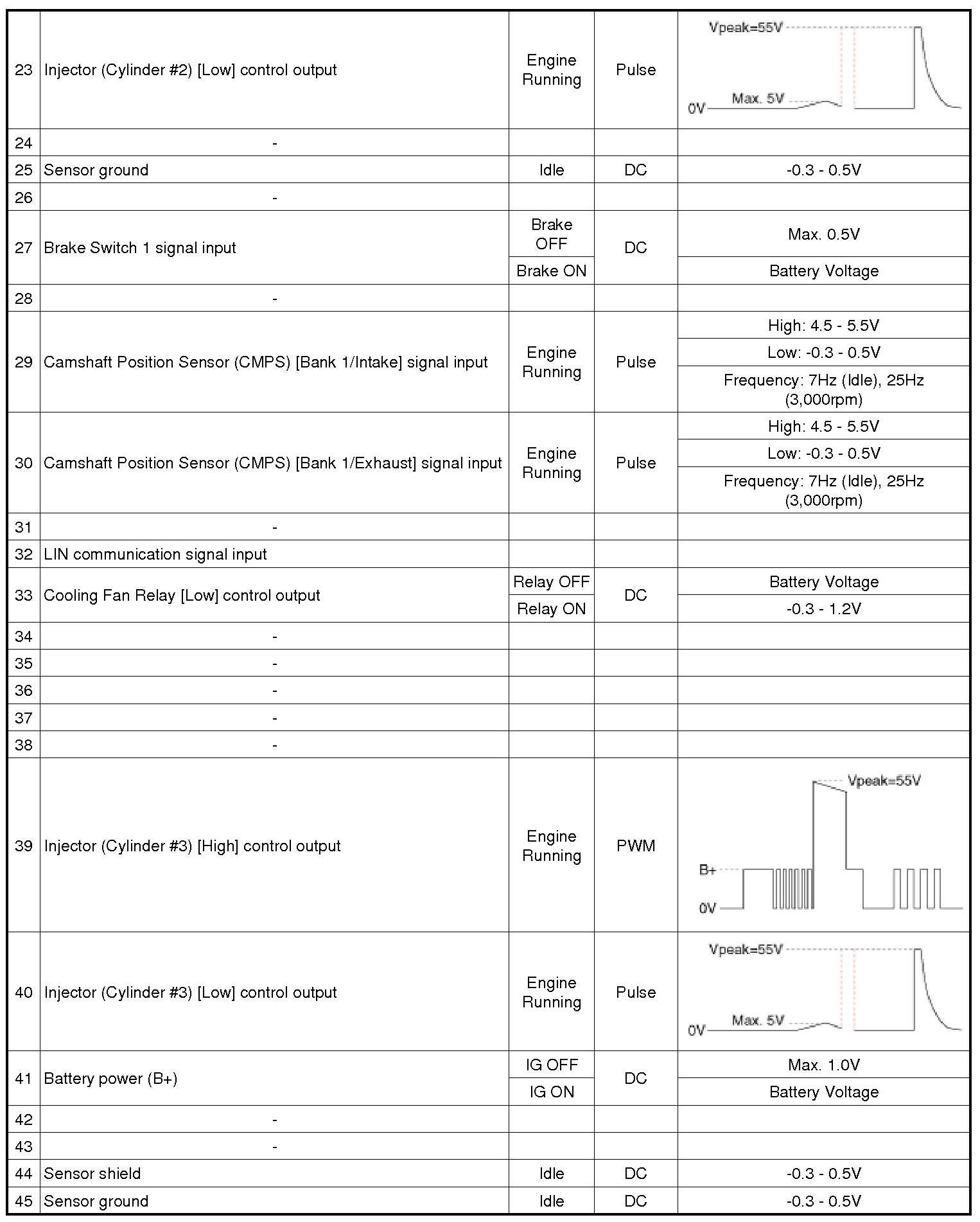

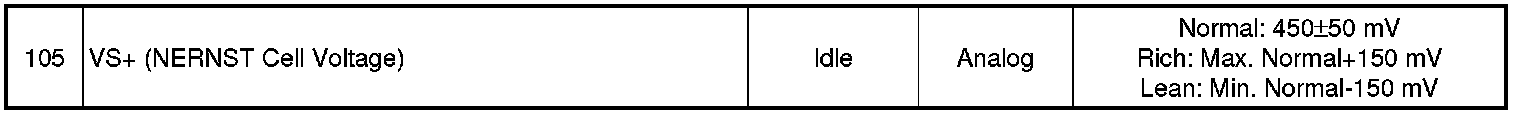

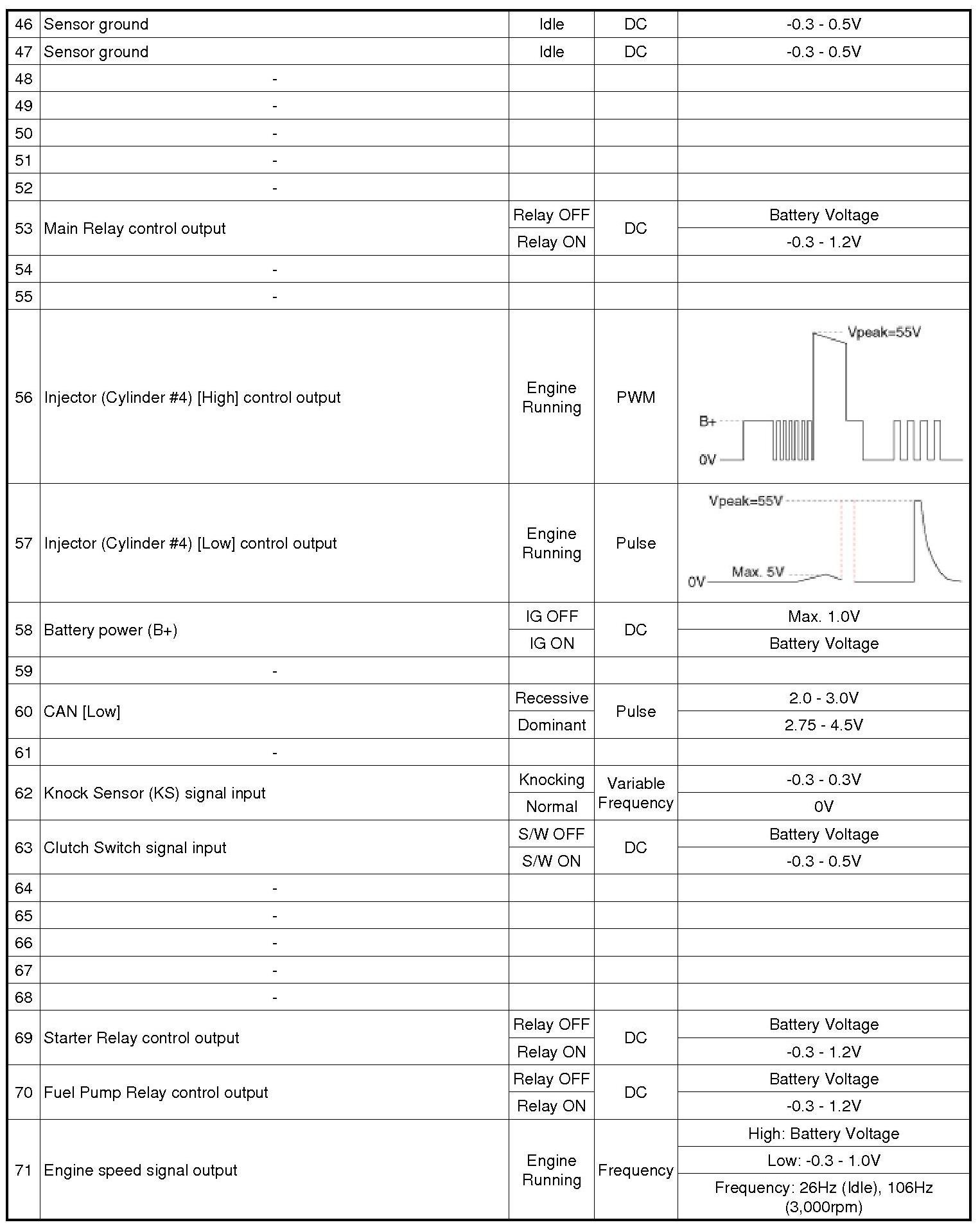

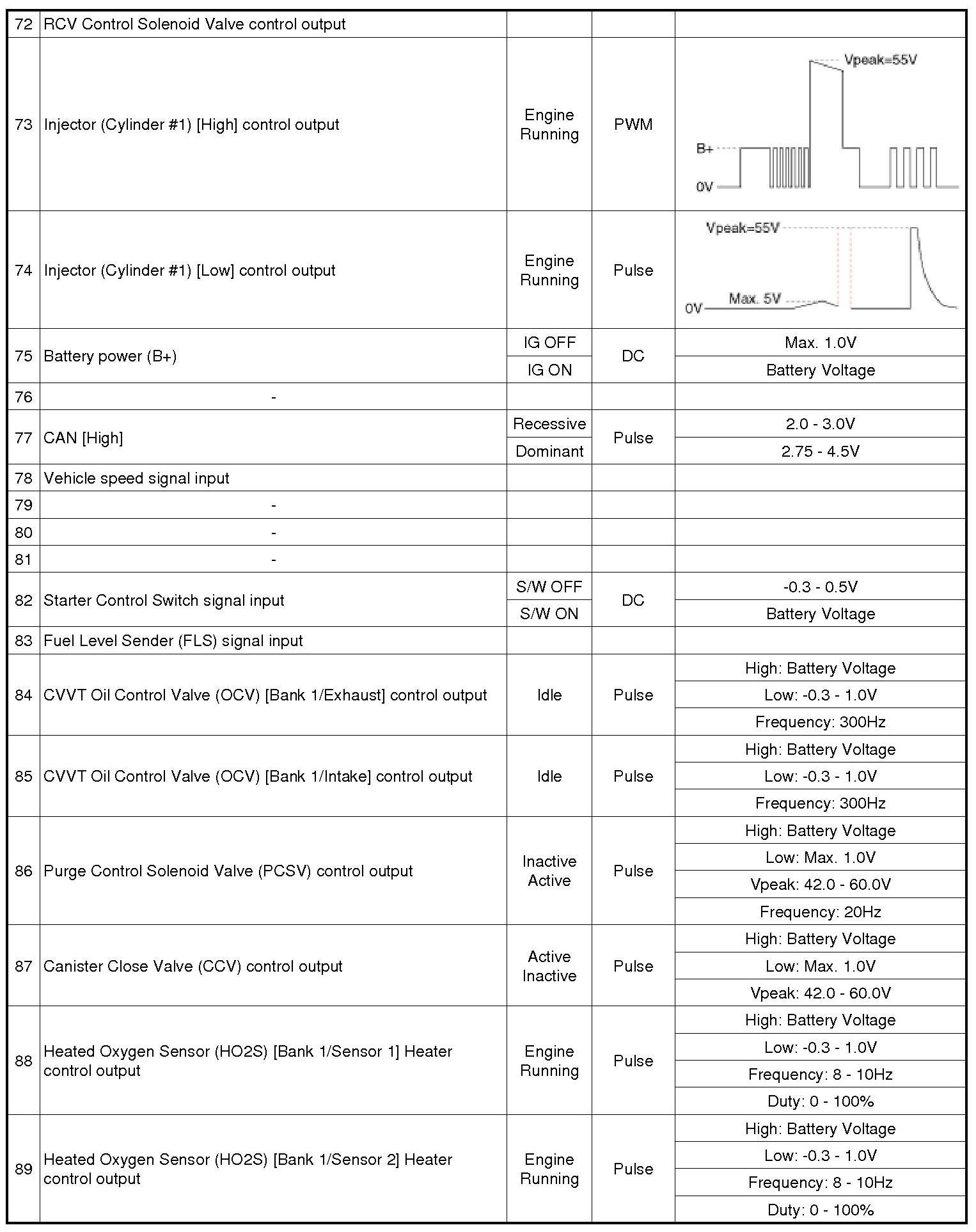

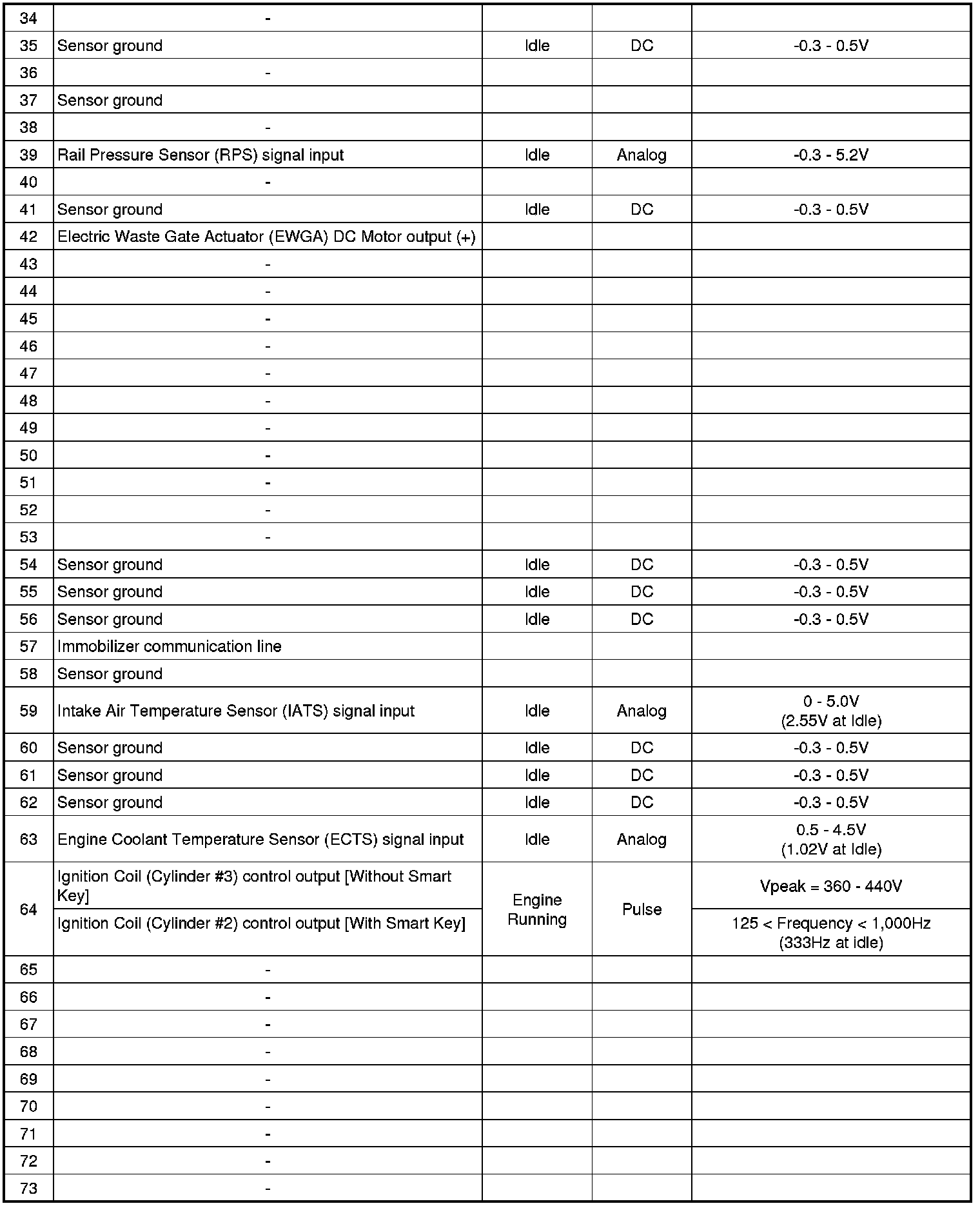

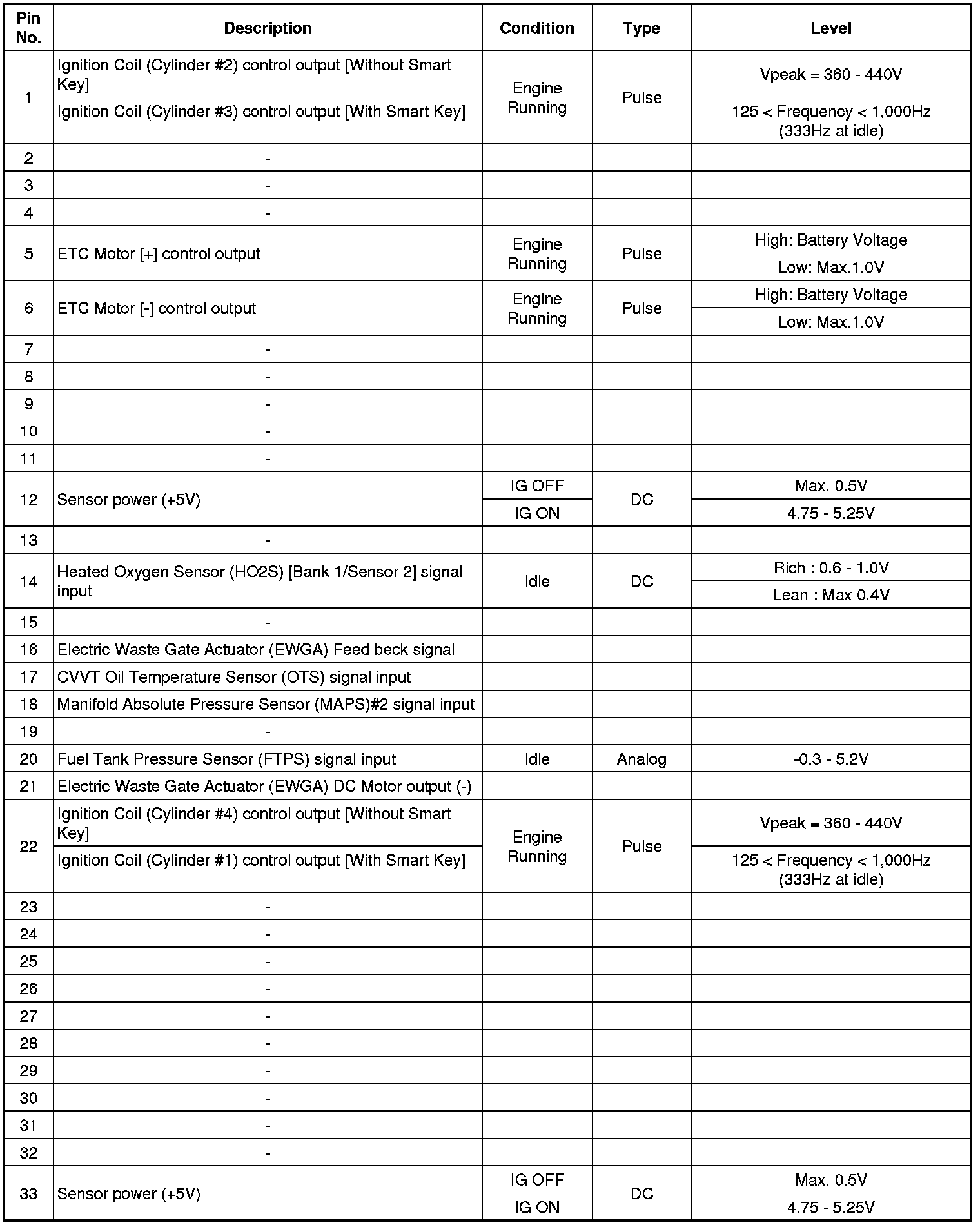

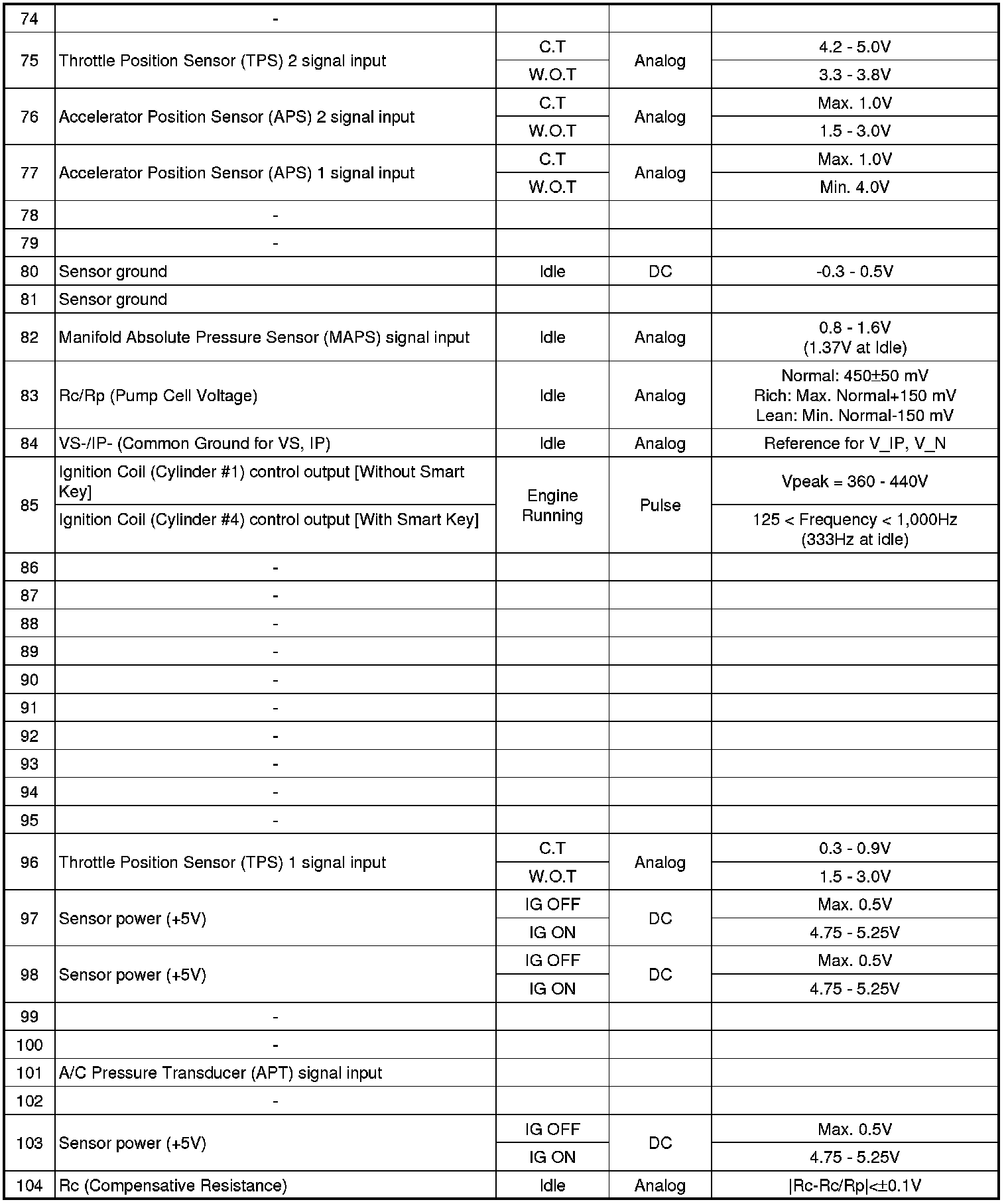

ECM Terminal Input/ Output signal
Connector [CHTG-AG]

















Connector [CHTG-BG]

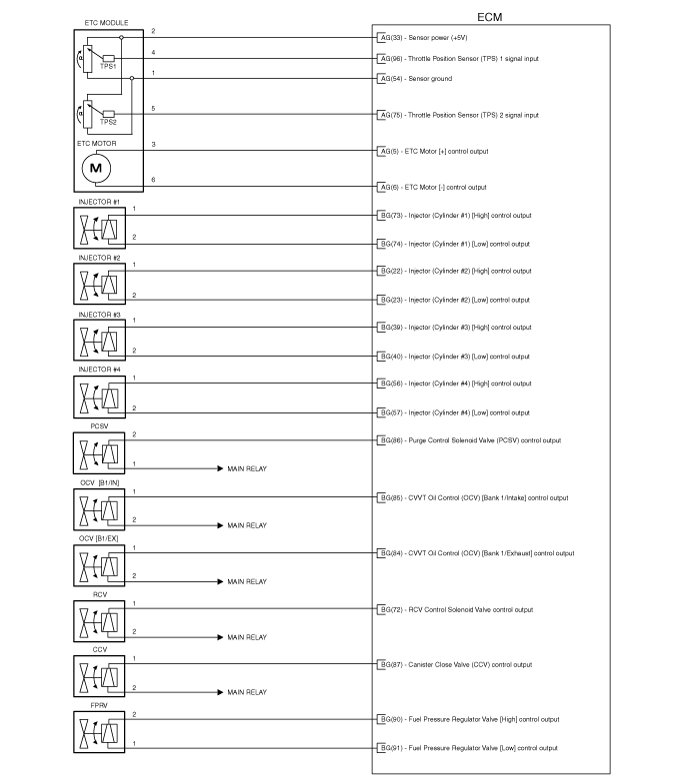

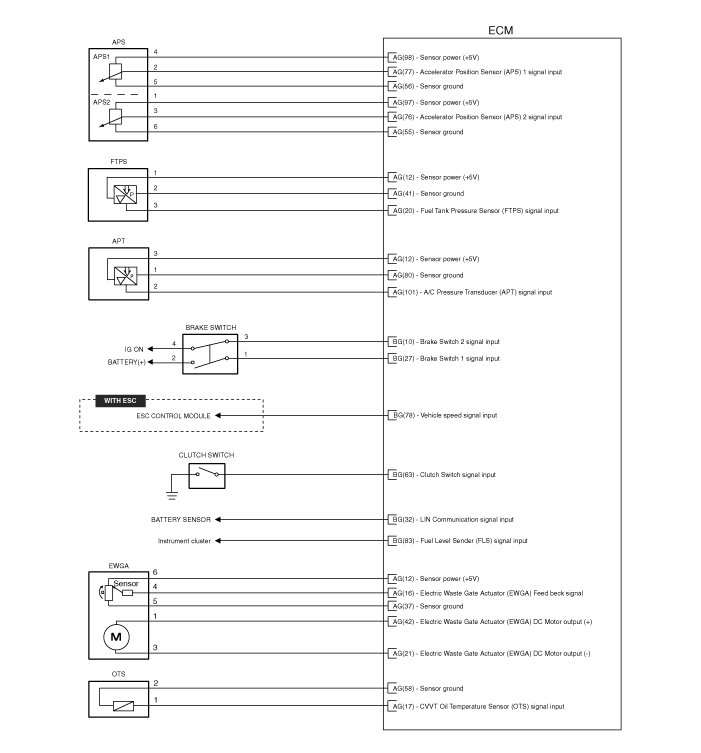

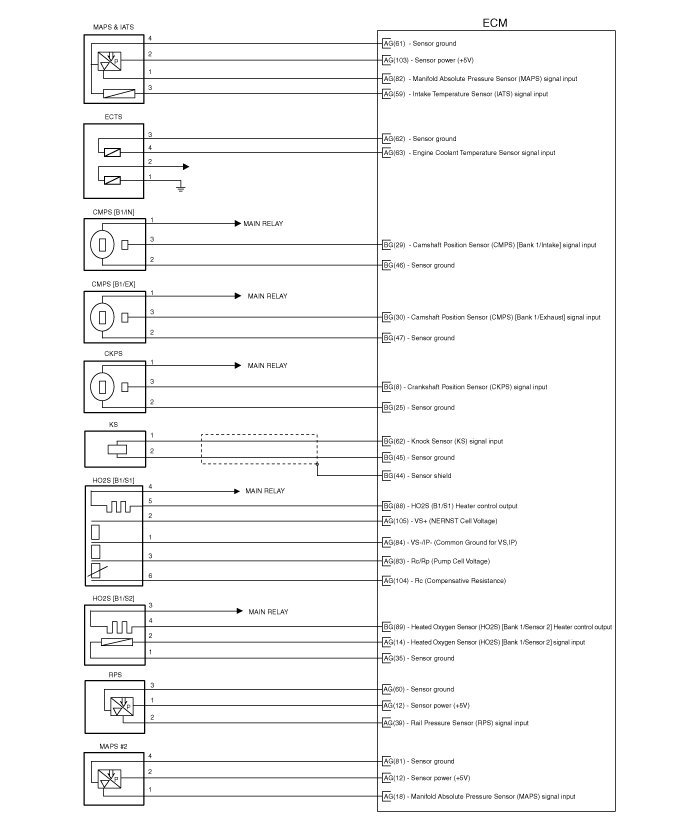

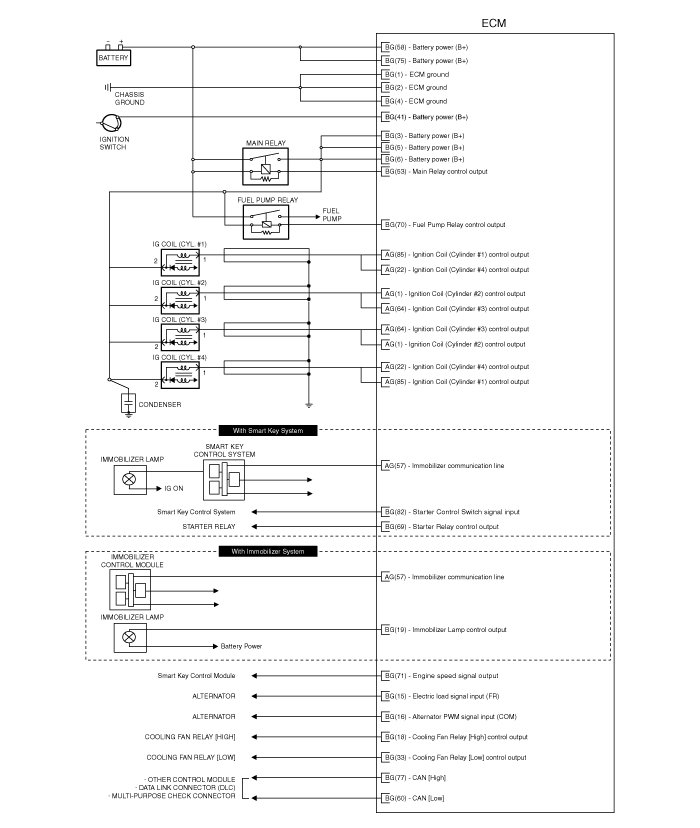

Circuit Diagram
