Navigation Module

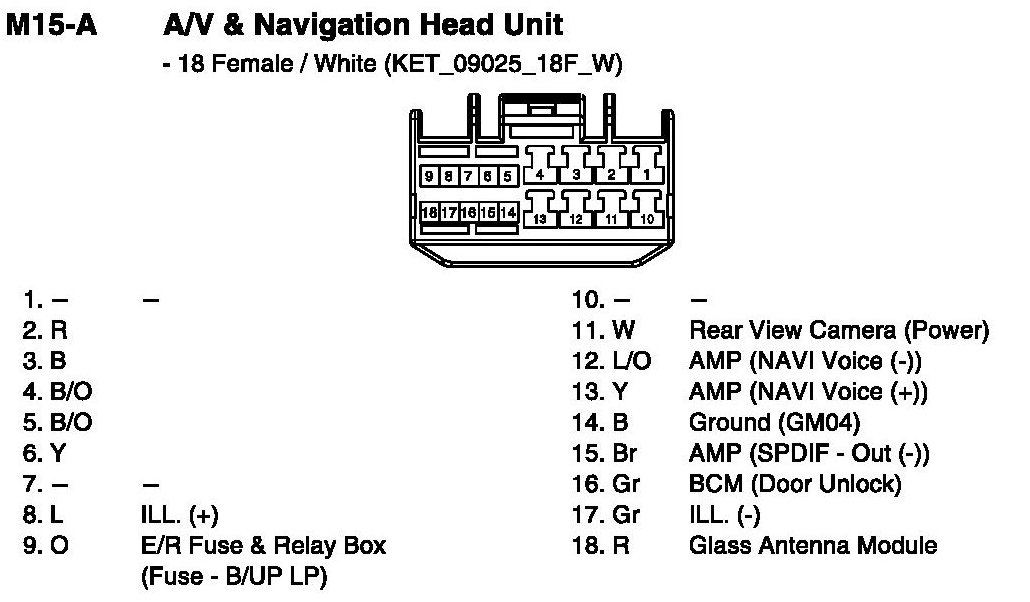

M15-A A/V & Navigation Head Unit:

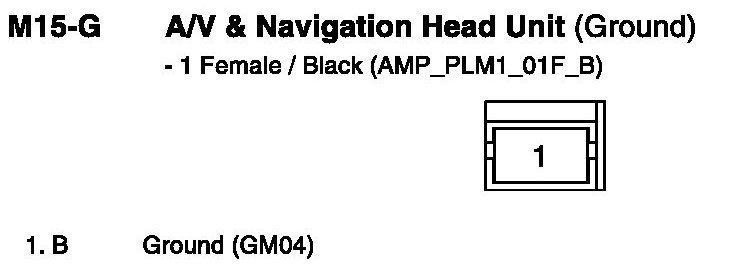

M15-G A/V & Navigation Head Unit (Ground):

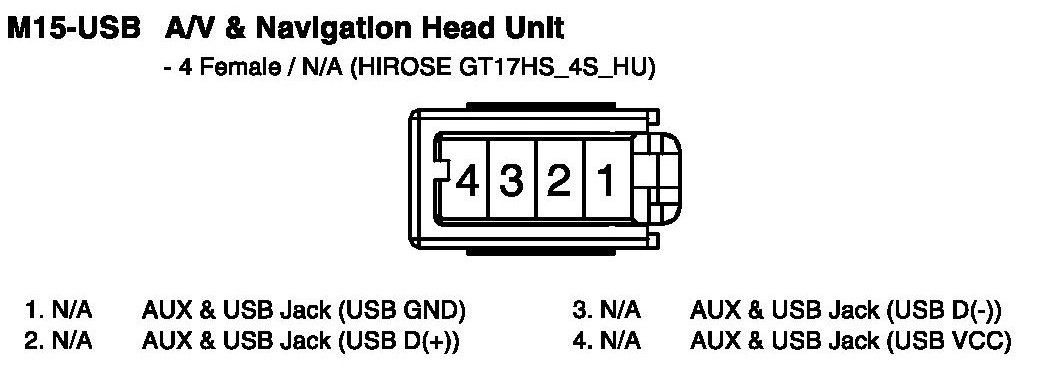

M15-USB A/V & Navigation Head Unit:

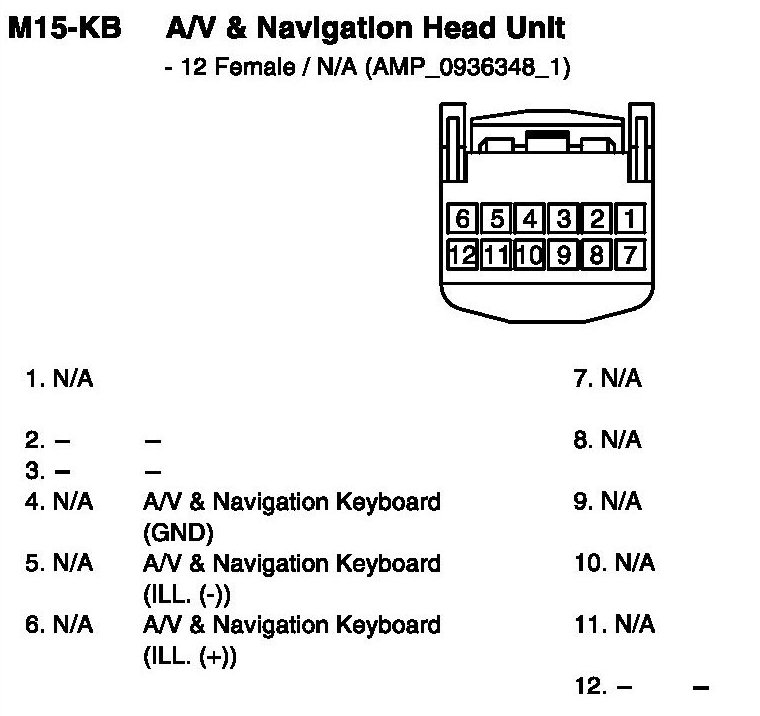

M15-KB A/V & Navigation Head Unit:
