Circuit Diagram

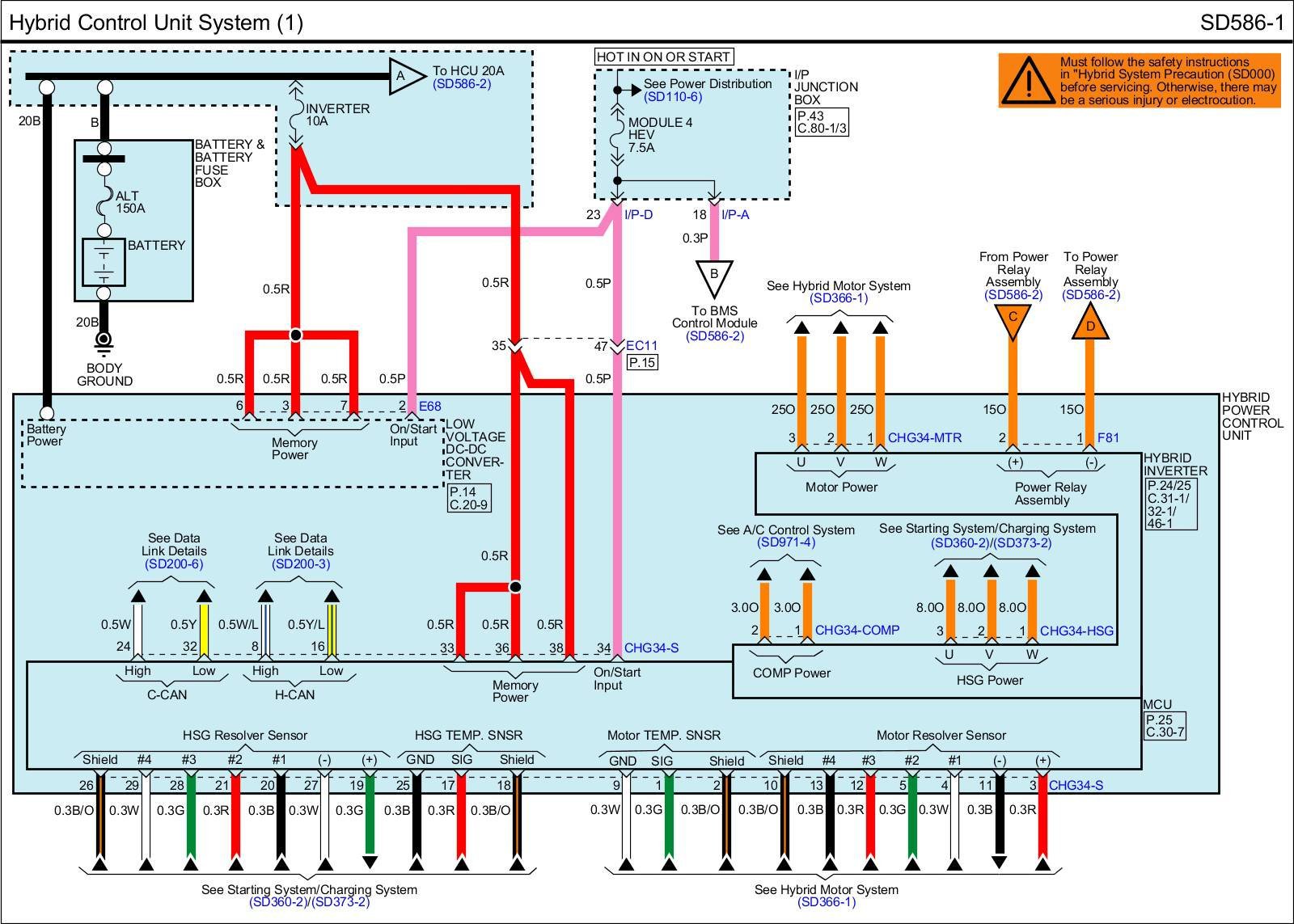

SD586-1 Hybrid Control Unit System (1):

SD586-2 Hybrid Control Unit System (2):

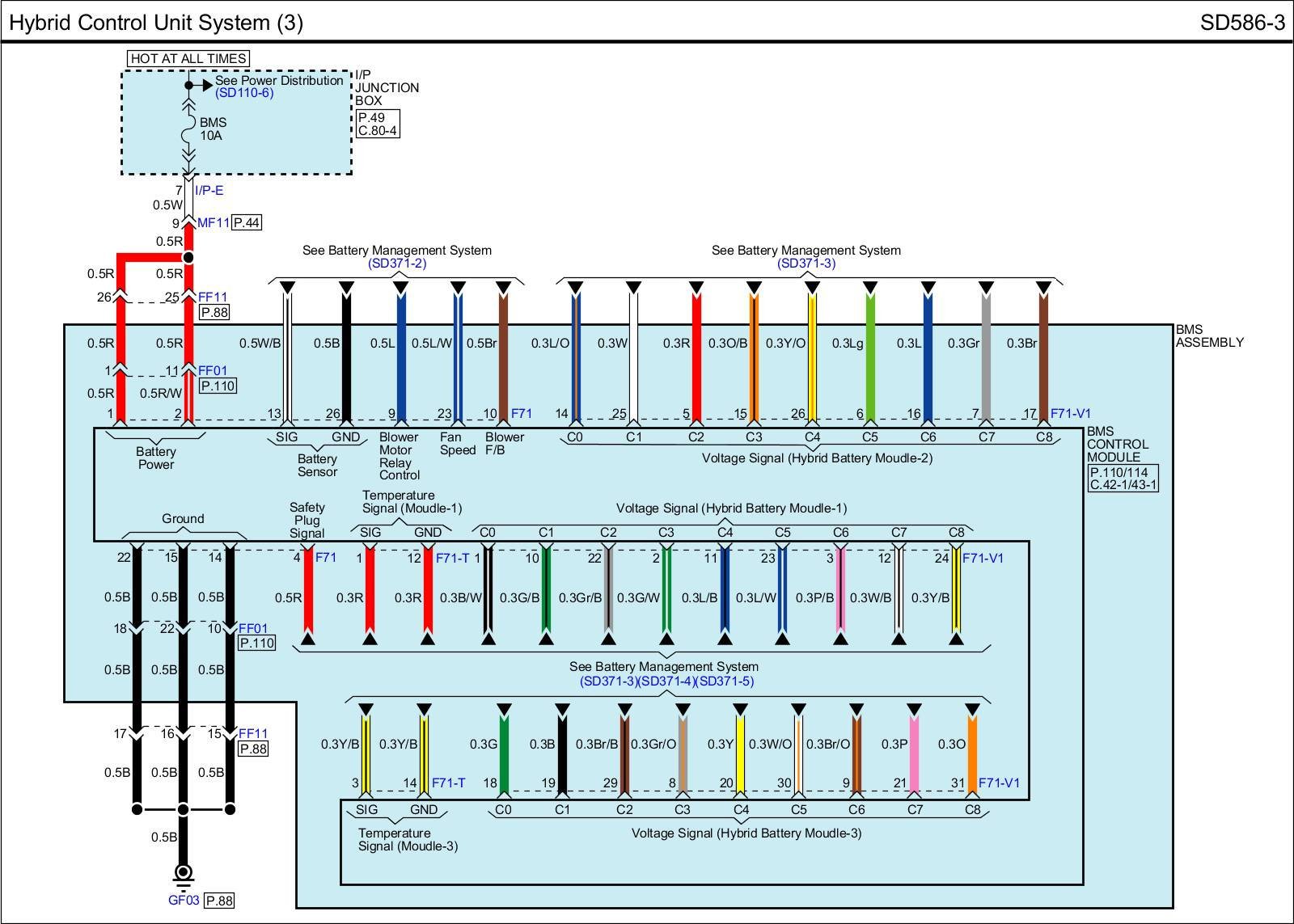

SD586-3 Hybrid Control Unit System (3):

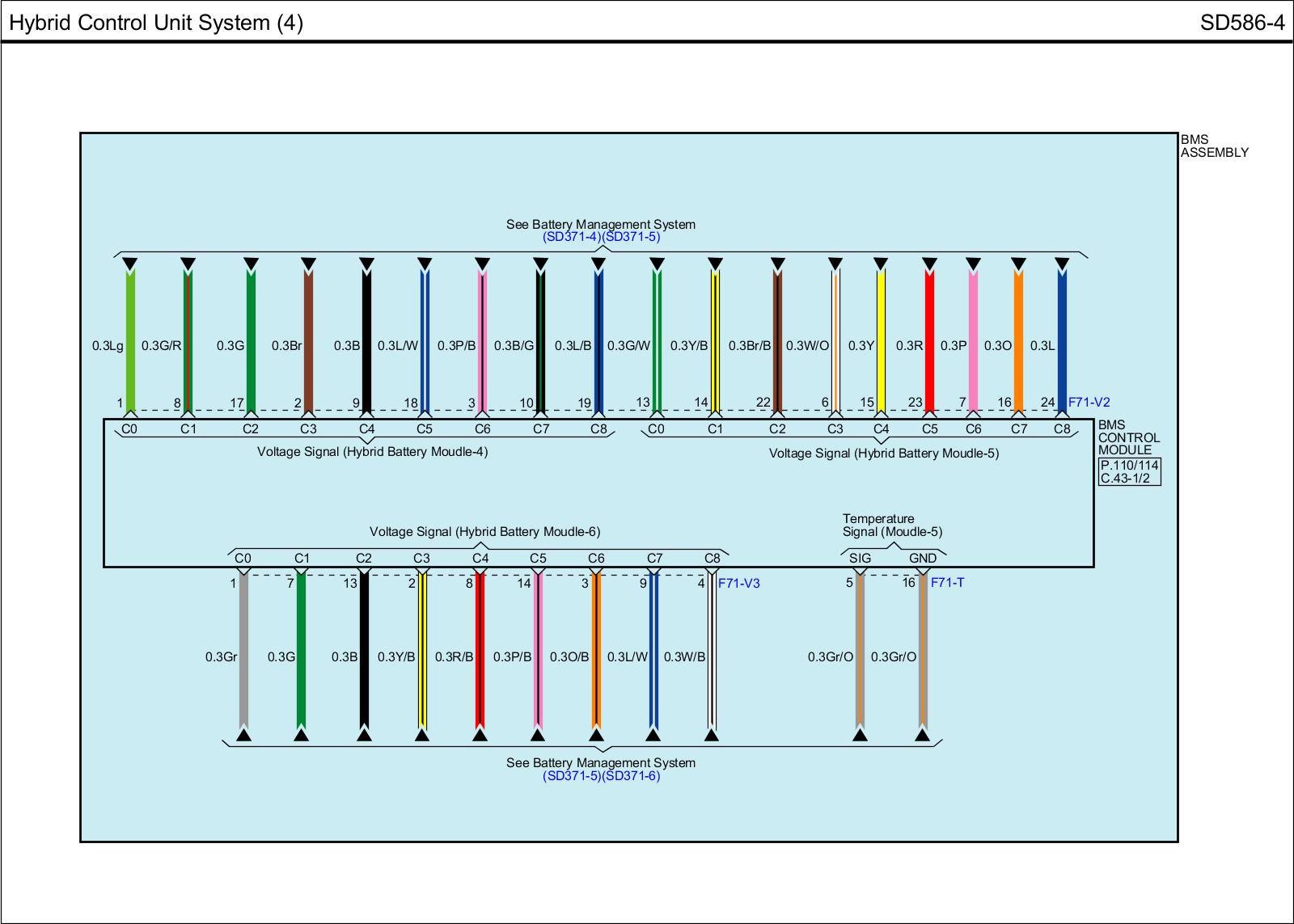

SD586-4 Hybrid Control Unit System (4):

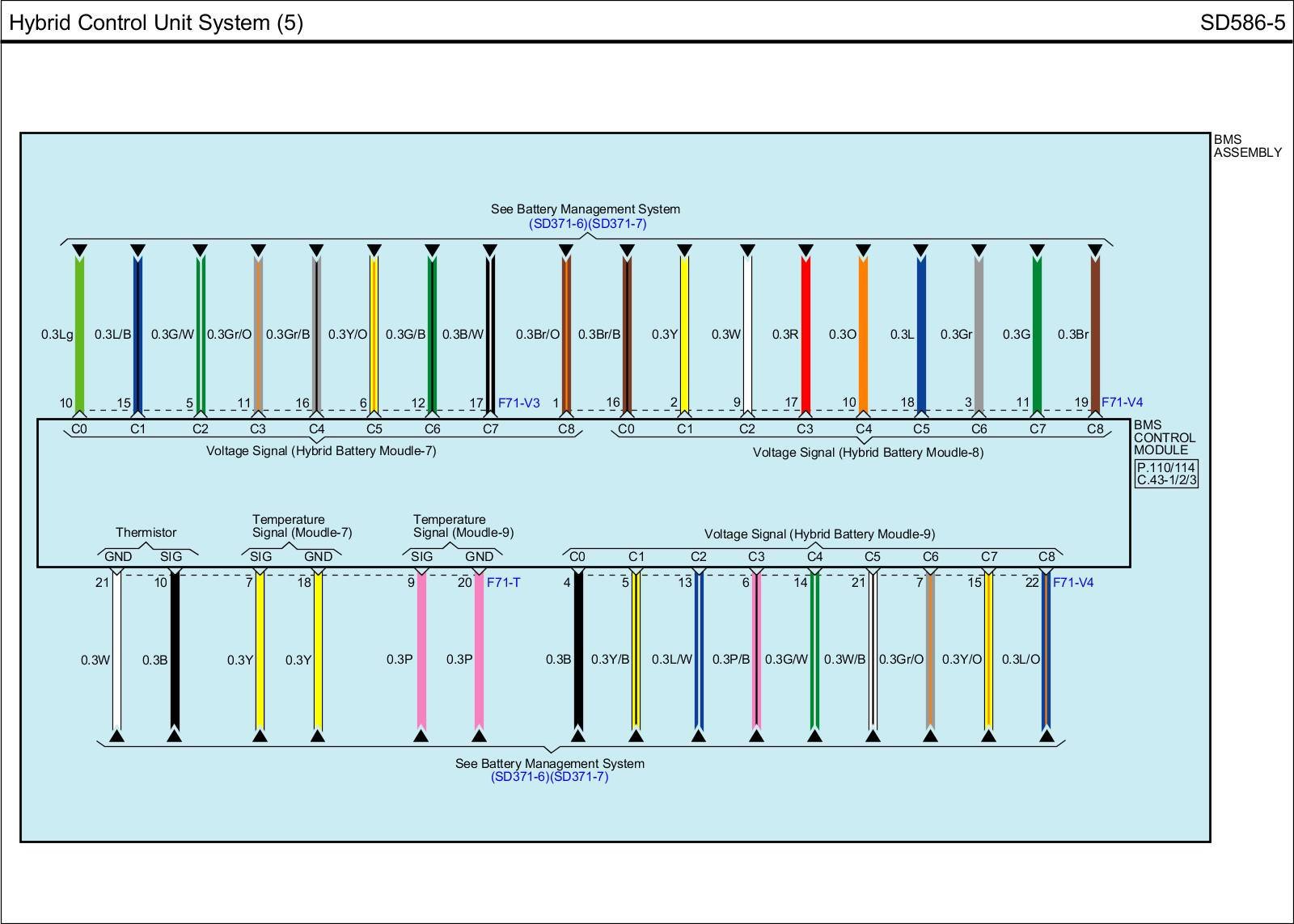

SD586-5 Hybrid Control Unit System (5):

Diagrams: Other diagrams referred to by SD number (i.e. SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
