Hybrid Control System

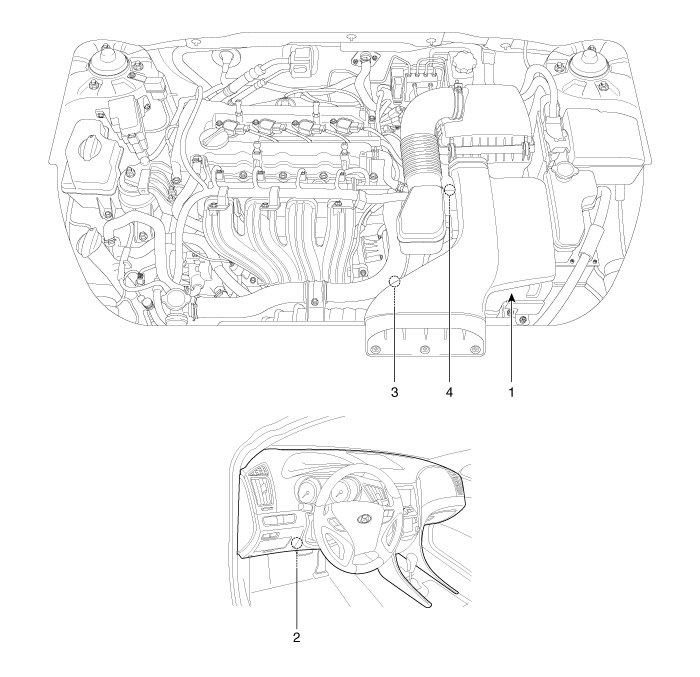

Component Location










NOTE:

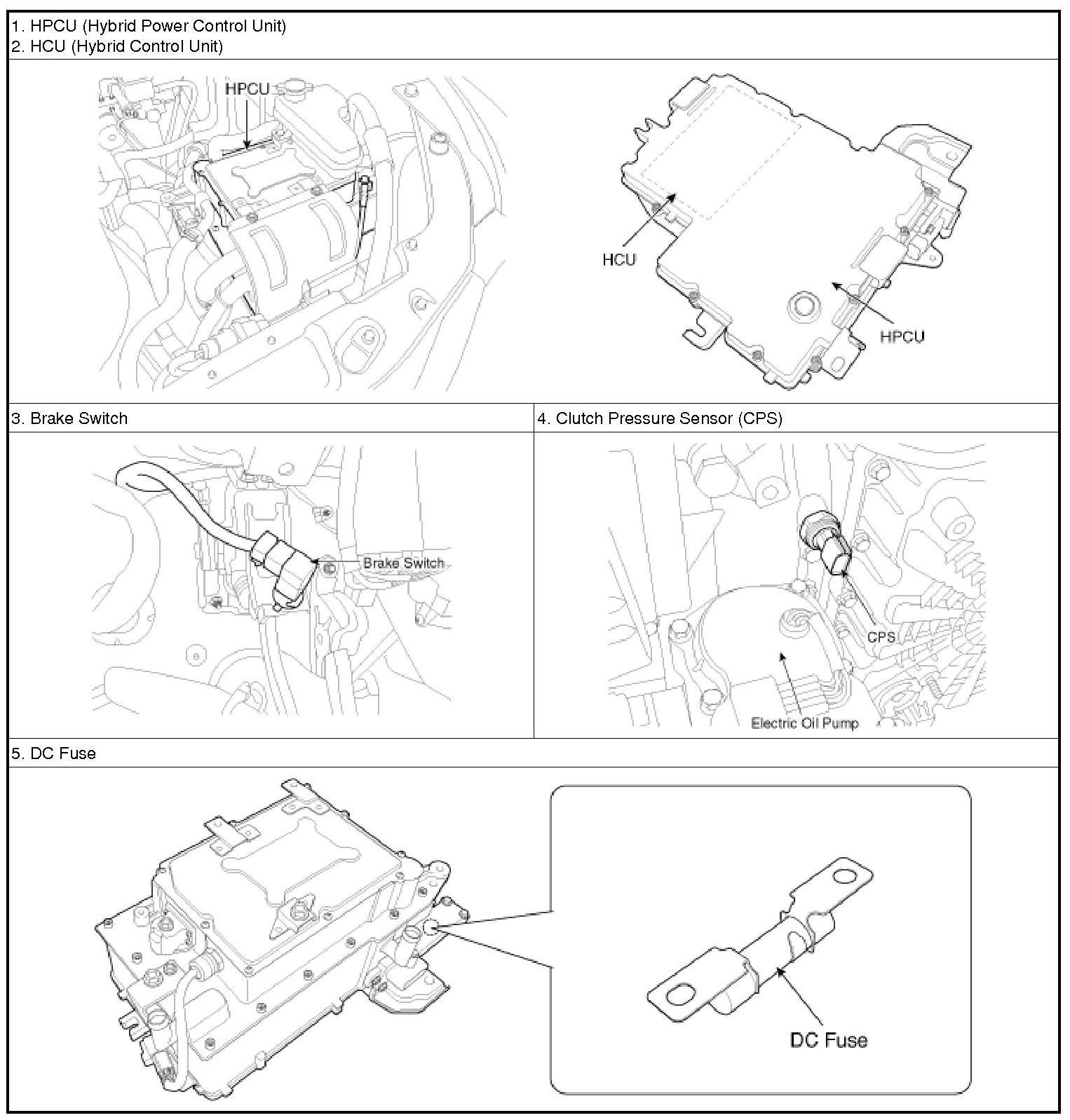

HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC / DC Converter).

NOTE:
For the location of the other control modules, refer to the relevant group.
