Power Control System: Specifications

Specifications

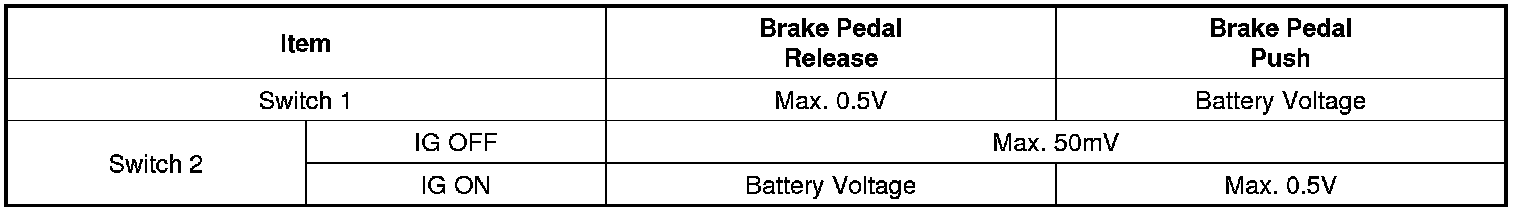

Brake Switch
- Type: ON/OFF Switch
- Specification

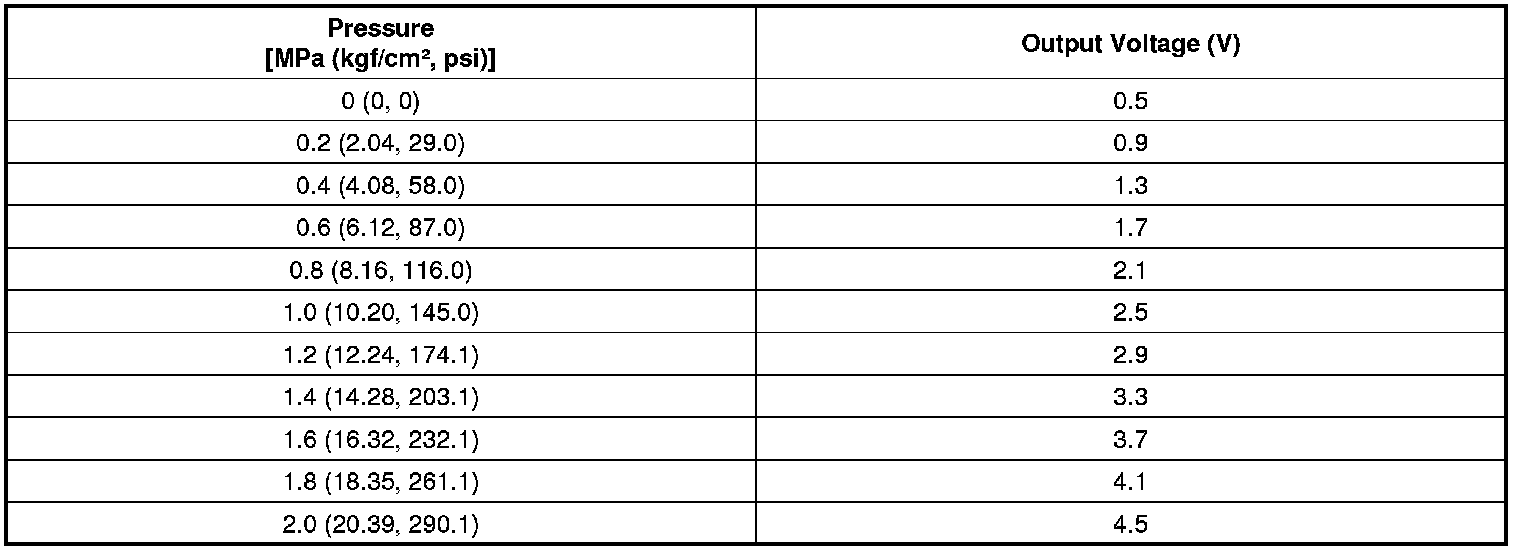

Clutch Pressure Sensor (CPS)
- Type: Piezo-Resistive Pressure Sensor
- Specification (Vref = 5.0V)









DC Fuse
- Specification
