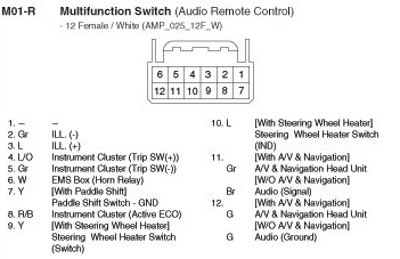

M01-R Multifunction Switch (Audio Remote Control)
M01-R Multifunction Switch (Audio Remote Control):
