Power Window Main Switch (With Passenger Safety)

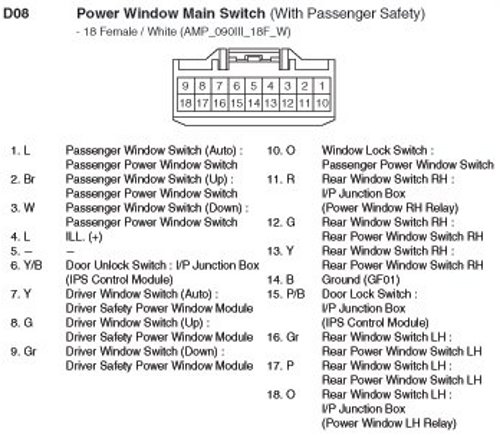

D08 Power Window Main Switch (With Passenger Safety):
