Power Window Switch





Circuit Diagram

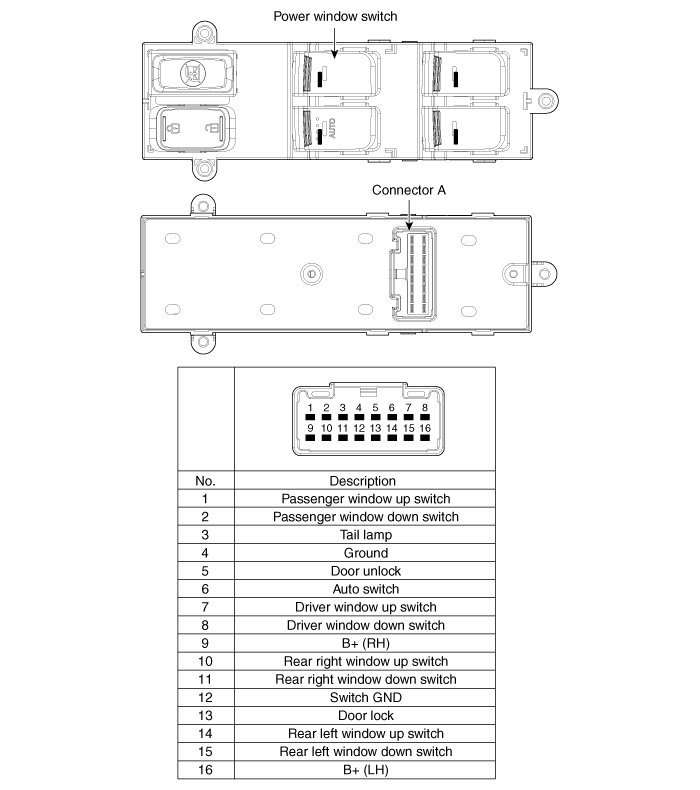

Driver Power Window Switch (1)





Driver Power Window Switch (2)

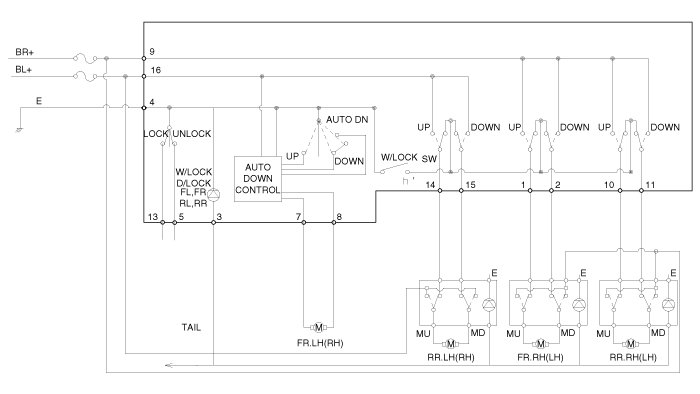

[Auto Down]

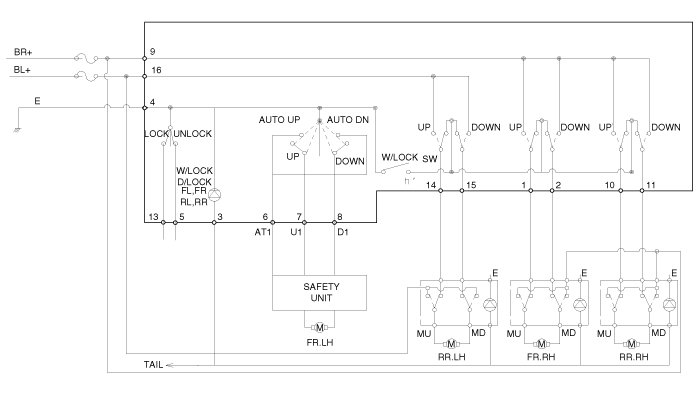

[Safety Up/Down]

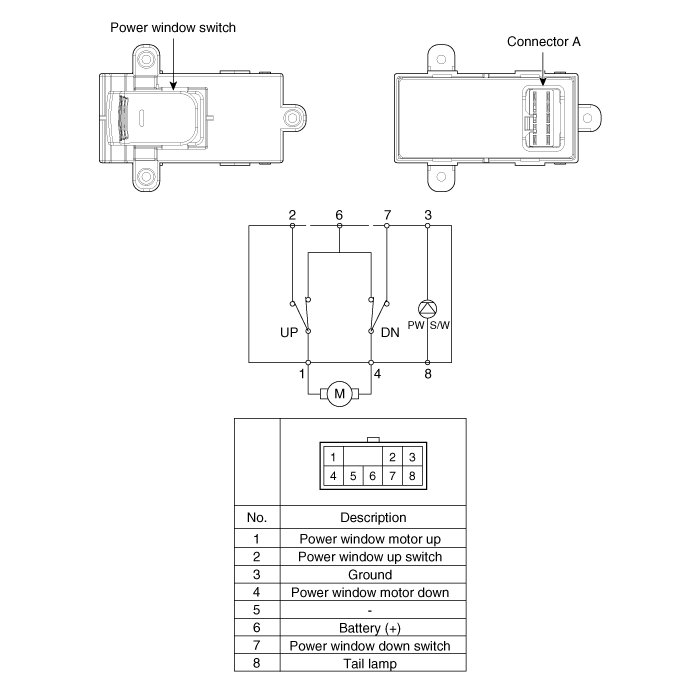

Passenger And Rear Power Window Switch

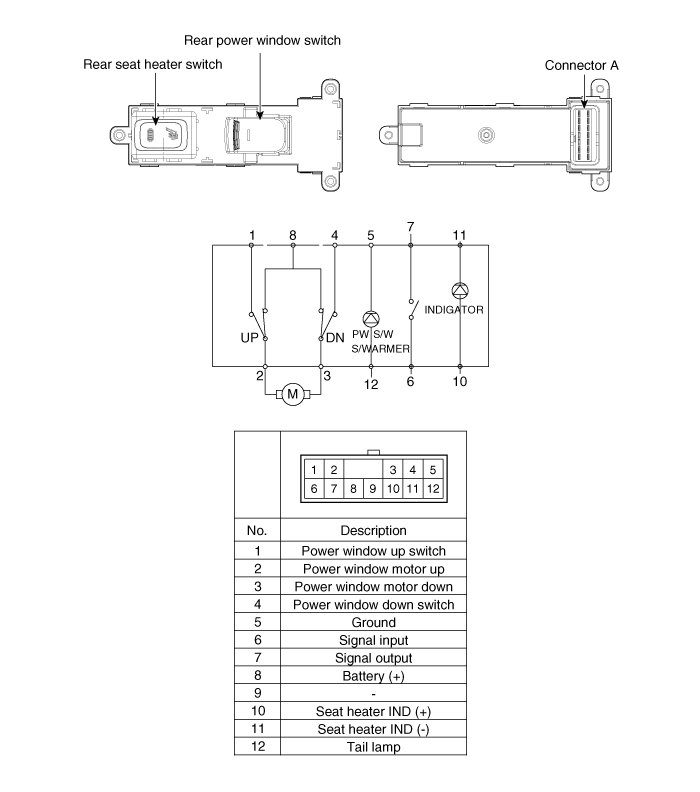

Rear Power Window + Seat Heater Switch
