Fuse: Locations

Fuse & Relay Information

I/P Junction Box View:




I/P Junction Box Circuit Details:




E/R Fuse & Relay Box View:

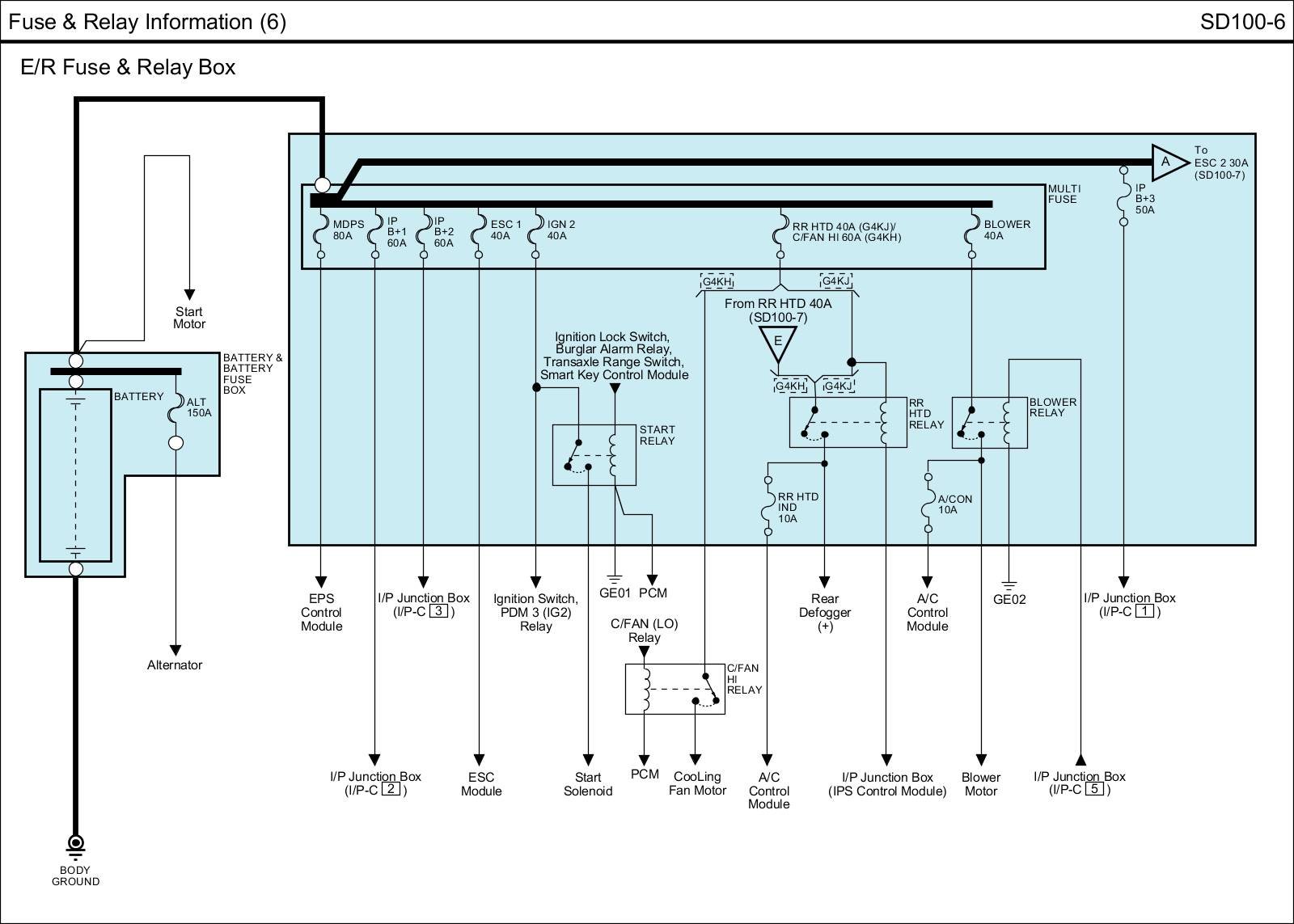

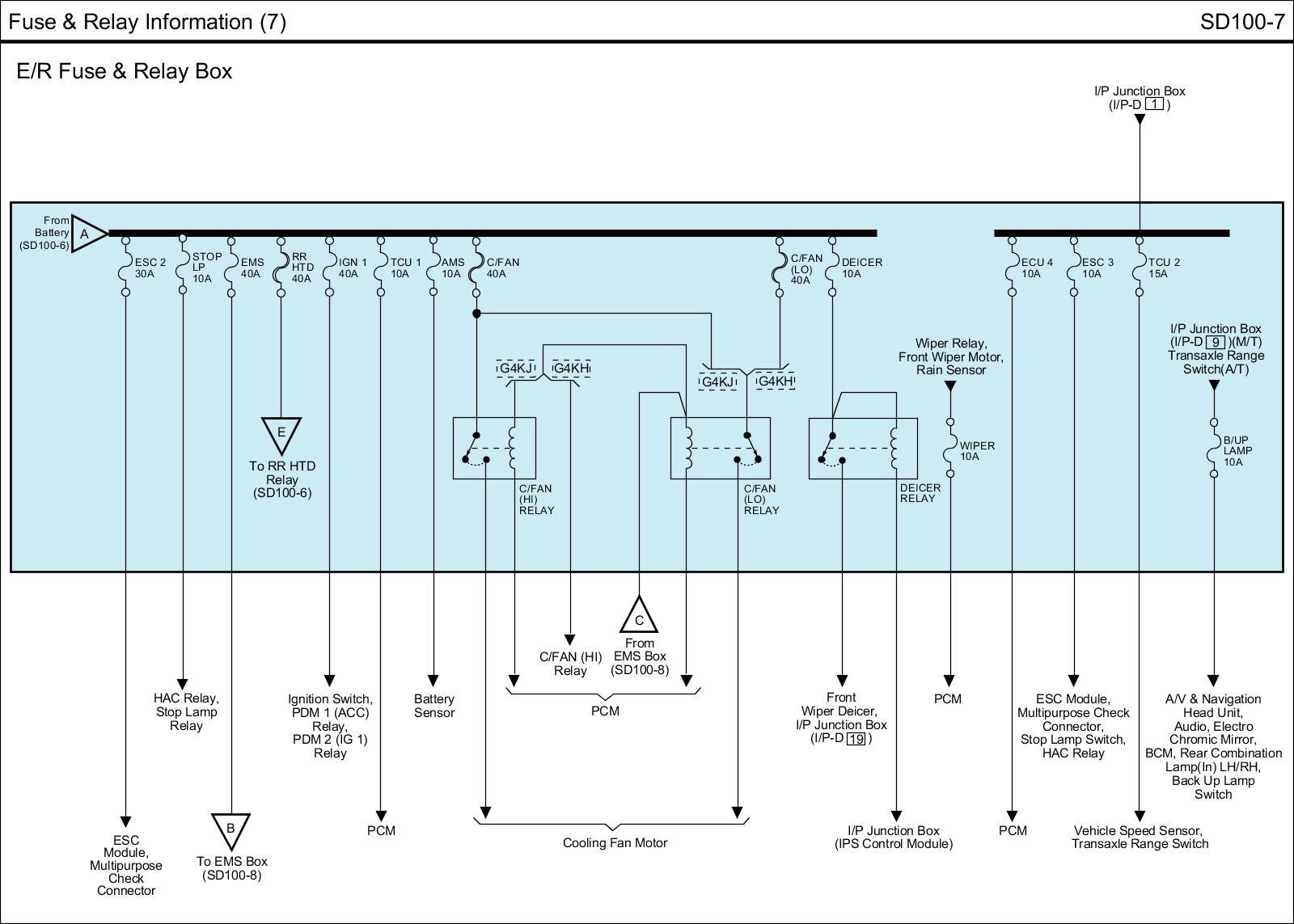

E/R Fuse & Relay Box Circuit Details:




EMS Box:




E/R Fuse & Relay Box View:




E/R Fuse & Relay Box View:




EMS Box View:
