Engine Control System (7)

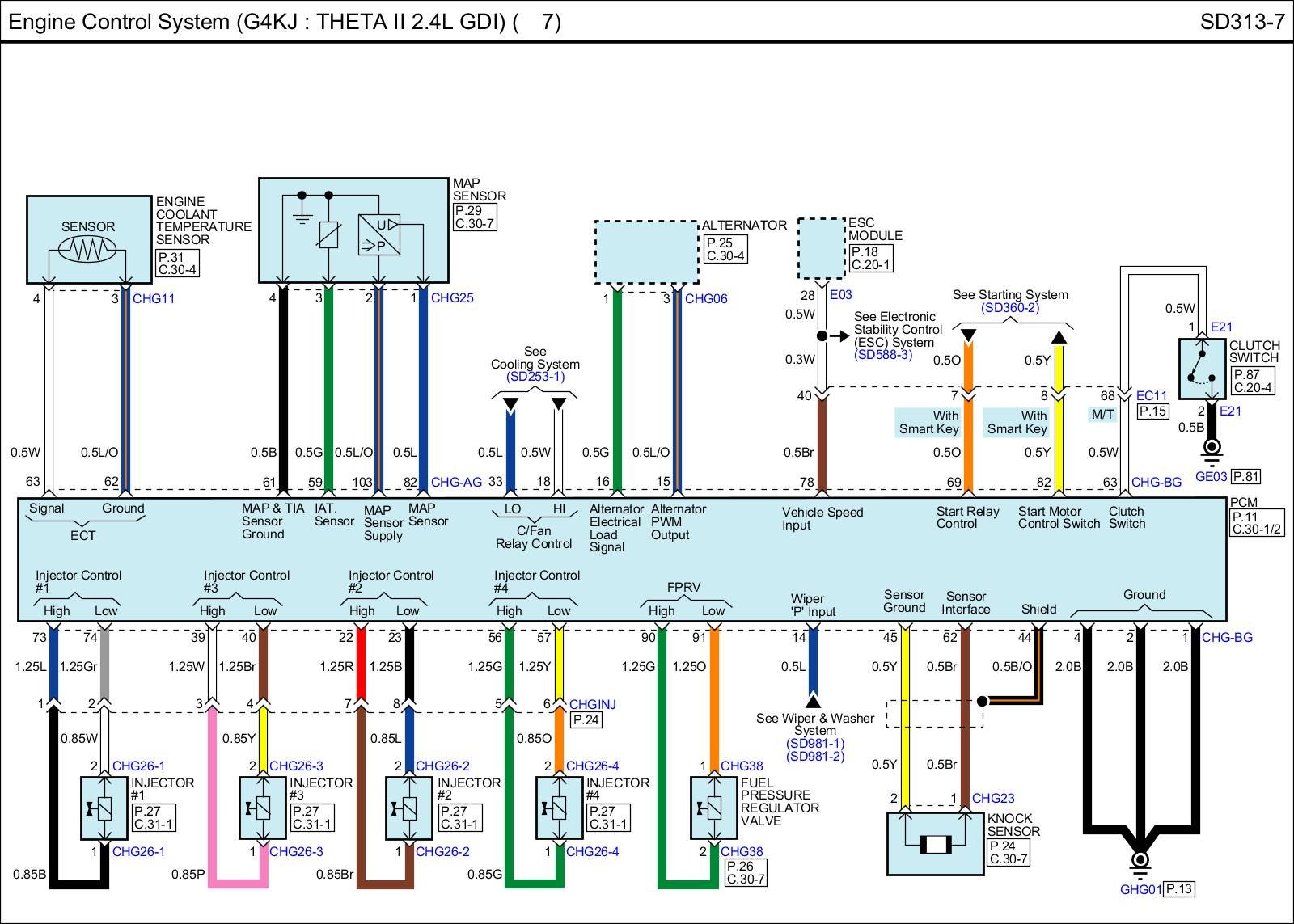

SD313-7 Engine Control System (7):






Next Diagram Engine Control System (8)

Previous Diagram Engine Control System (6)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
