Ignition Coil: Testing and Inspection

Inspect Ignition Coil

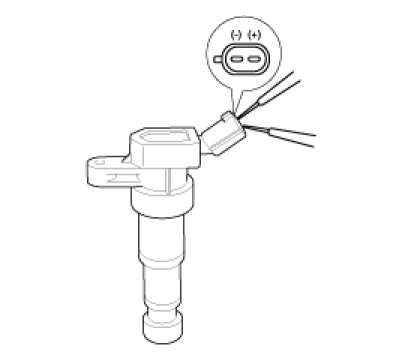

1. Measure the primary coil resistance between terminals (+) and (-).





Standard value:0.62Ohms ± 10%


Removal and Installation

1. Disconnect the ignition coil connectors (A).




2. Remove the ignition coils (A).

Tightening torque :
3.9 - 5.9N.m (0.4 - 0.6kgf.m, 2.9 - 4.3lb-ft)




3. Installation is the reverse of removal.
