Electronic Throttle Actuator





Specification

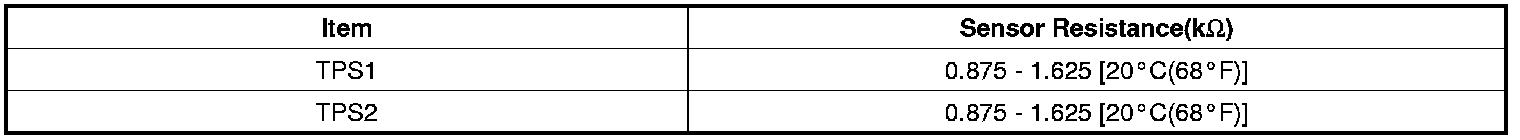

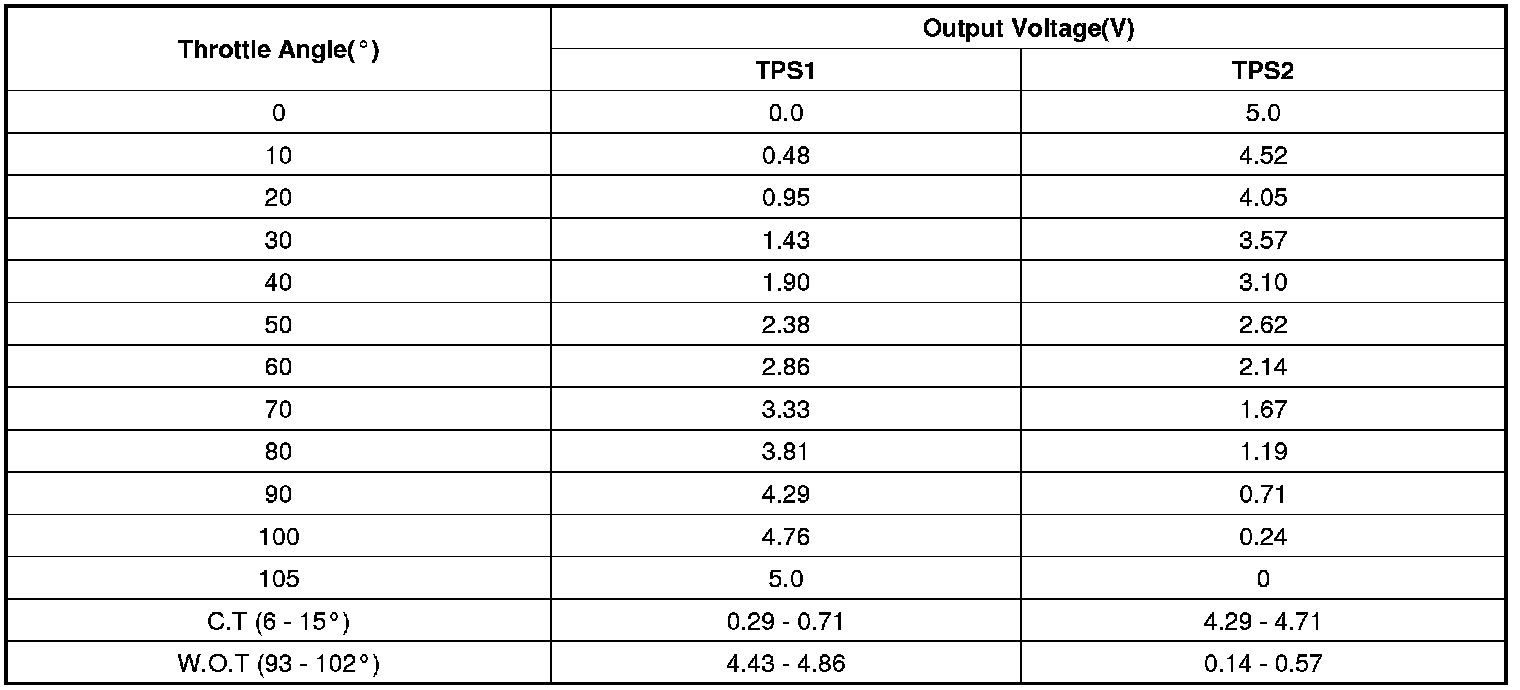

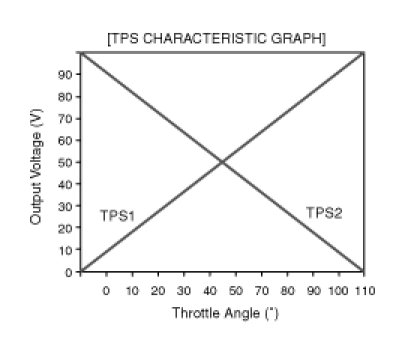

[Throttle Position Sensor (TPS)]














[ETC Motor]
