Engine Control Systems
>>
Engine Control System - 2.0L
>>
Ambient Temperature Sensor (ATS)
>>
Schematic Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagrams

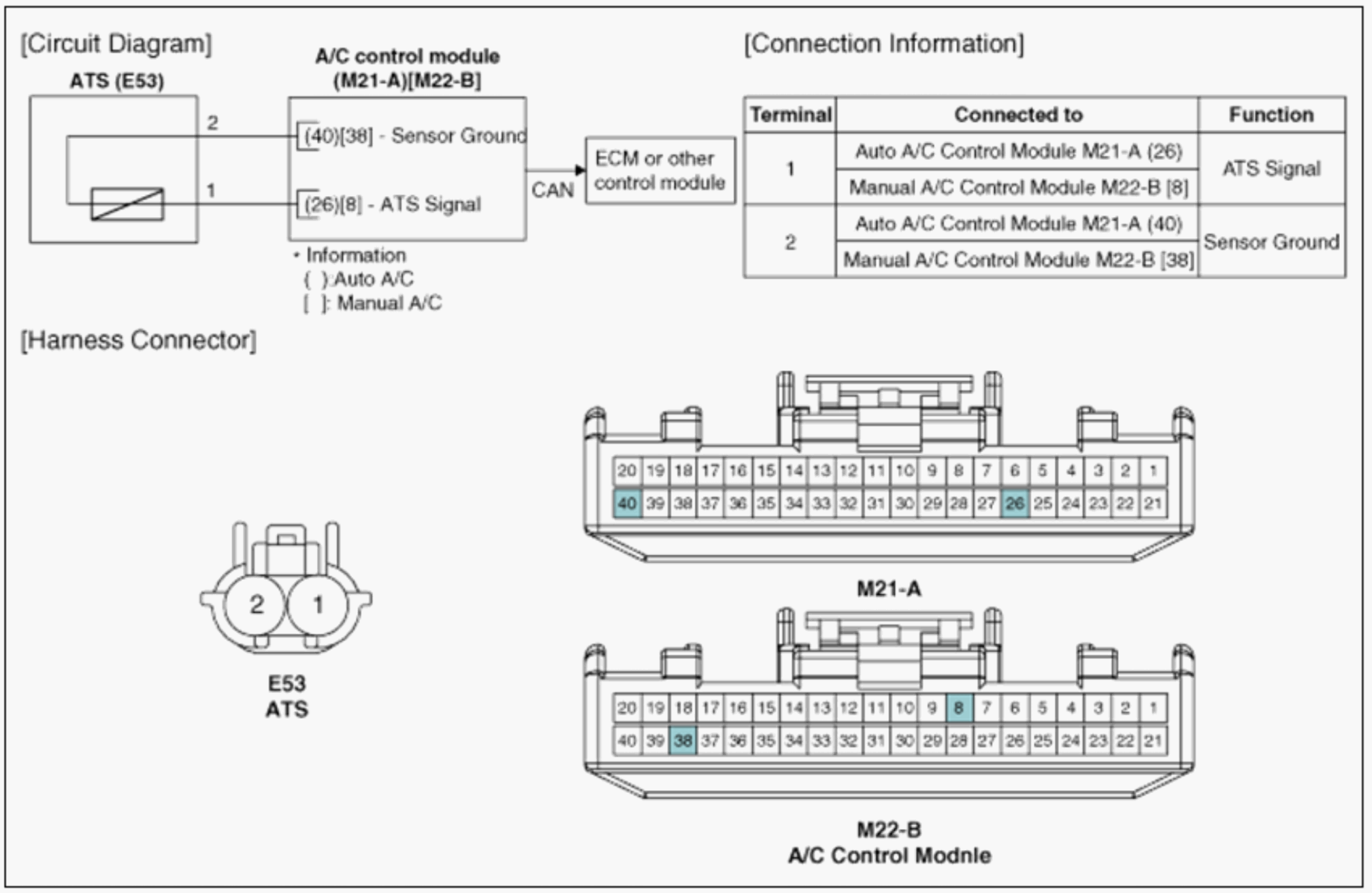

Fig 1: Identifying IATS And A/C Contol Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
