Repair Procedures: Removal

(Type 1 for TF)

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Lift the vehicle.
3. Disconnect the canister close valve connector (A).
4. Disconnect the ventilation hose (B).
5. Remove the fuel tank air filter after removing 2 bolts (C).

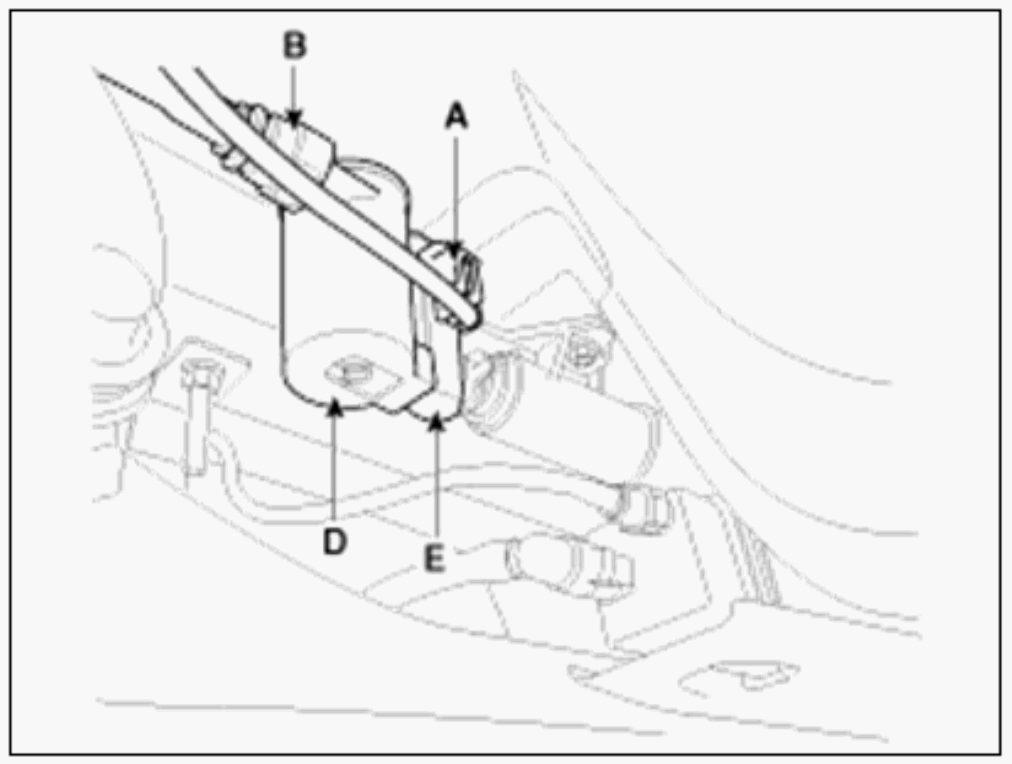

   Fig 1: Canister Close Valve Connector, Ventilation Hose & Bolts

   Courtesy of KIA MOTORS AMERICA, INC.
6. Release the lever (A) and then rotate the canister close valve (B) in the direction of the arrow in the illustration.
   Fig 2: Identifying Lever

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Rotating Canister Close Valve

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove CCV from the fuel tank air filter after coinciding installation parts (A, B).

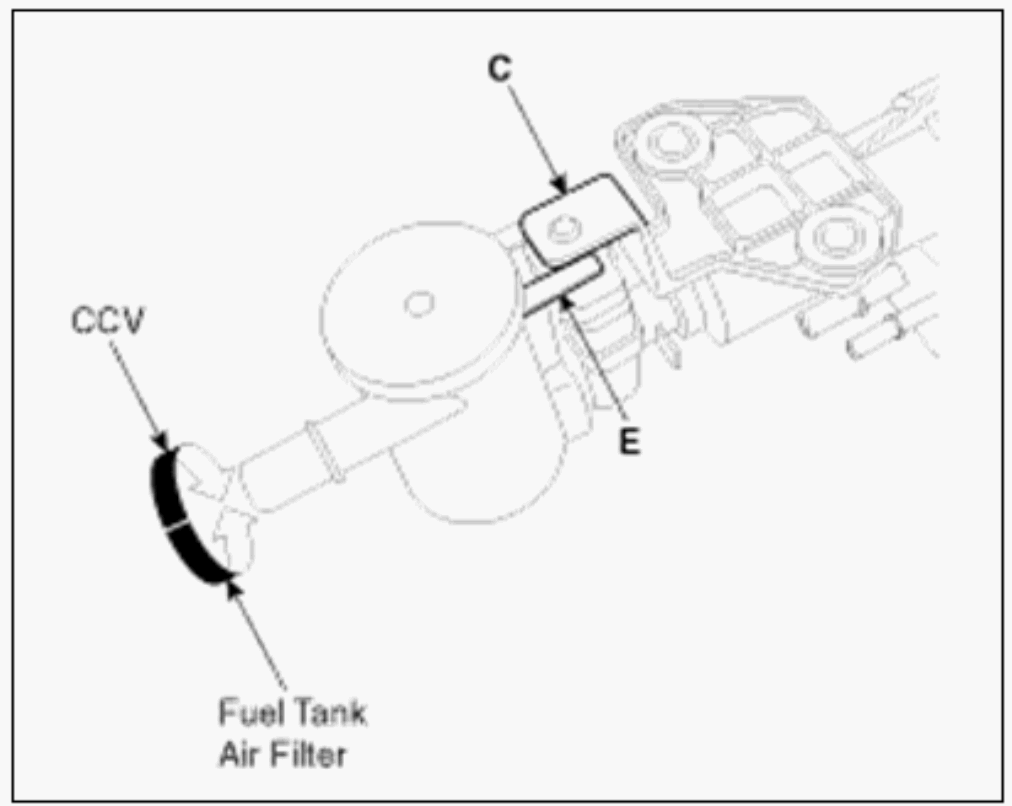

Fig 4: Identifying CCV Installation Parts

Courtesy of KIA MOTORS AMERICA, INC.

(Type 2 for QF)

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the canister close valve connector (A).
3. Disconnect the ventilation tube quick connector (B).
4. Release the lever (C), and then remove the fuel tank air filter (D) after rotating it in the direction of the arrow in the illustration.
5. Release the lever (E), and then remove the canister close valve (F) after rotating it in the direction of the arrow in the illustration.
   Fig 5: Identifying Canister And Fittings

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 6: Identifying Fuel Tank Air Filter

   Courtesy of KIA MOTORS AMERICA, INC.
6. Release the lever (A) and then rotate the canister close valve (B) in the direction of the arrow in the illustration.
   Fig 7: Identifying Lever

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 8: Rotating Canister Close Valve

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove CCV from the fuel tank air filter after coinciding installation parts (A, B).

Fig 9: Identifying CCV Installation Parts

Courtesy of KIA MOTORS AMERICA, INC.
